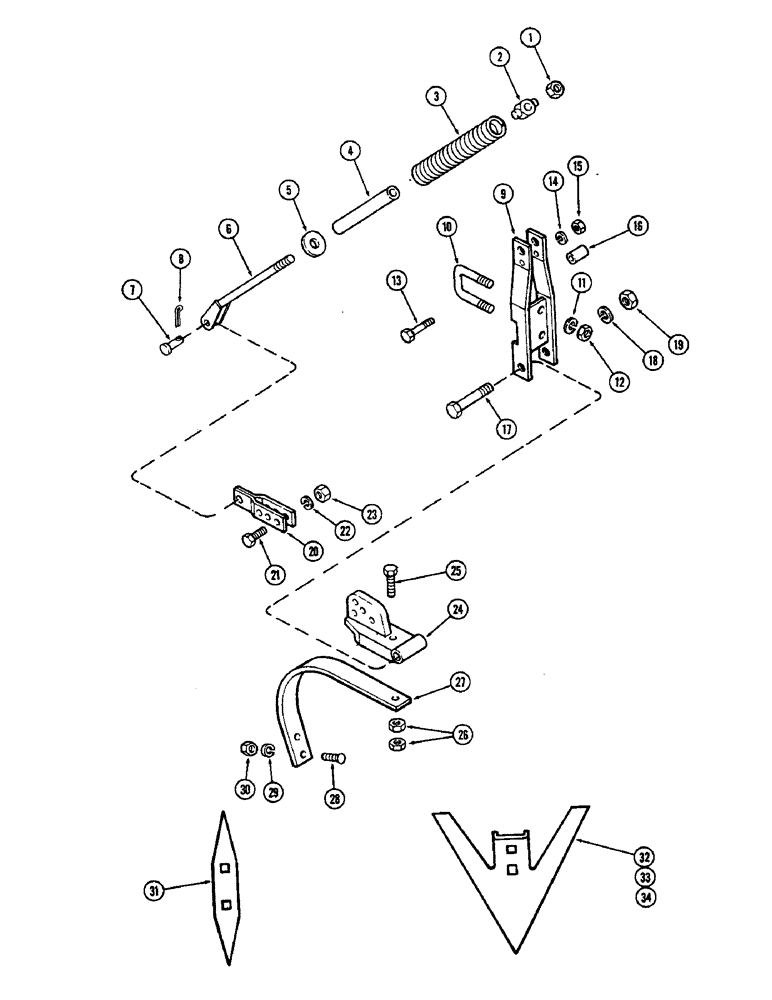

Запчасти Case IH 1300W (62) - MEDIUM DUTY SHANK

1

131-1116

LOCK NUT,1/2"-13, GB

NUT, LOCK, 1/2"-13, GB

1шт.

2

T1937

PIVOT

SWIVEL

1шт.

3

T31803

SPRING

- pressure

1шт.

4

T51884

SLEEVE

1шт.

5

195-106

WASHER,1/2"

- 1-3/8 x 9/16" x 12 gauge

1шт.

6

T35687

ROD

- pressure

1шт.

7

T28980

CLEVIS PIN

PIN - clevis

1шт.

8

132-310

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

9

T56823

BRACKET - shank

1шт.

10

T56427

U-BOLT

1шт.

11

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

12

129-107

NUT,5/8"-11, G5

2шт.

13

113-12

BOLT,Hex, 1/4" - 20 x 2-1/2", Gr 5

- 1/4 x 2-1/2" NC hex (Grade 5)

1шт.

14

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

15

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

1шт.

16

T28982

SPACER

1шт.

17

113-619

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

1шт.

18

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

19

131-1130

LOCK NUT,5/8"-11, GA

NUT - lock 5/8" NC hex

1шт.

20

T35688

LEVER

- adjusting

1шт.

21

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

22

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

23

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

24

T35690

HOLDER

- shank

1шт.

25

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

1шт.

26

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

27

T55544

SPRING

LEAF SPRING

1шт.

28

118-138

PLOW BOLT,3/8"-16 x 1 1/4", G5

BOLT - plow 3/8 x 1-1/4" NC (Grade 2)

2шт.

29

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

30

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

31

T39279

SHOVEL

- 1/4 x 1-3/4 x 11" (6.4 x 44.5 x 279.4 MM)

1шт.

32

T32680

SHOVEL

SWEEP - 4" (101.6 MM)

1шт.

33

T27354

SHOVEL

SWEEP - 6" (152.4 MM)

1шт.

34

T27355

SHOVEL

SWEEP - 9" (228.6 MM)

1шт.
