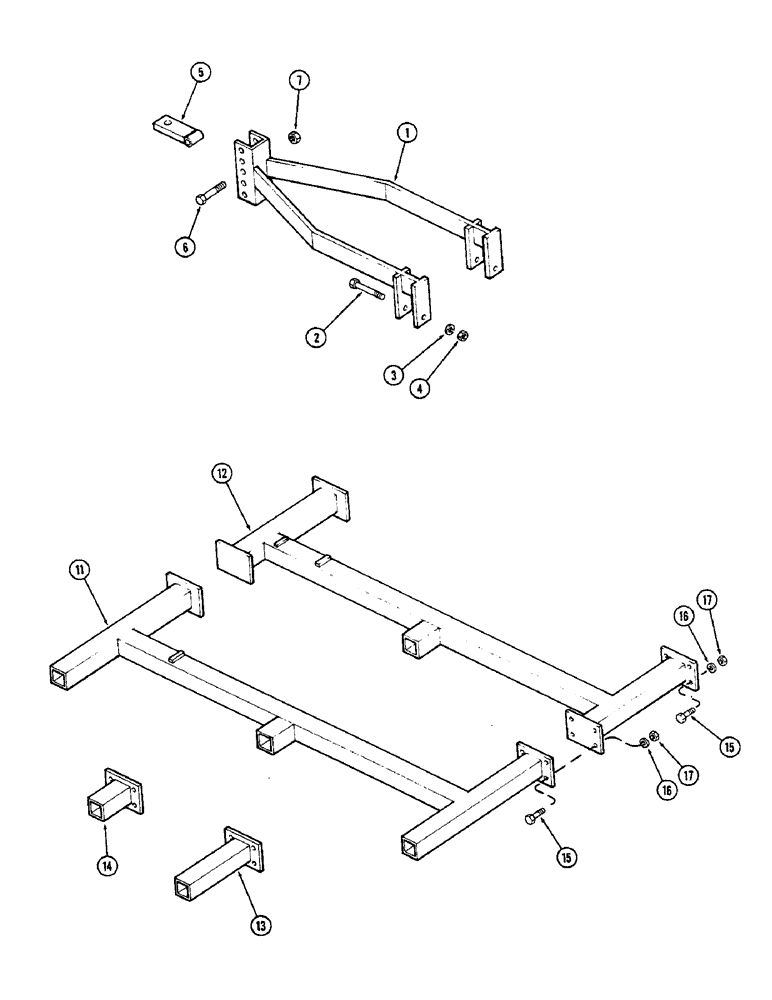

Запчасти Case IH 1300W (60) - HEAVY DUTY IMPLEMENT HITCH

1

T56893

HITCH

1шт.

2

113-647

BOLT,Hex, 5/8" - 11 x 5", Gr 5

- 5/8 x 5" NC hex (Grade 5)

2шт.

3

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

4

129-107

NUT,5/8"-11, G5

2шт.

5

T53426

CLEVIS - hitch

1шт.

6

A45464

SCREW

BOLT - 3/4 x 4-1/4" NC hex (Grade 8)

1шт.

7

131-385

LOCK NUT,3/4"-10, GA

NUT - lock 3/4" NC hex

1шт.

11

T56753

EXTENSION - frame 27" (685.8 MM) Models 1330, 1340, 1351

2шт.

12

T56752

EXTENSION - frame 20" (508.0 MM) Models 1325, 1326, 1327, 1330, 1335, 1337, 1338, 1340, 1346, 1347, 1348, 1351

2шт.

13

T56890

EXTENSION - 13" (330.2 MM) Models 1324, 1327, 1334, 1338, 1345, 1348

2шт.

14

T56889

EXTENSION - 6" (152.4 MM) Models 1323, 1324, 1326, 1327, 1333, 1334, 1337, 1338, 1344, 1345, 1347, 1348

2шт.

15

113-626

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

1шт.

16

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

17

129-107

NUT,5/8"-11, G5

1шт.
