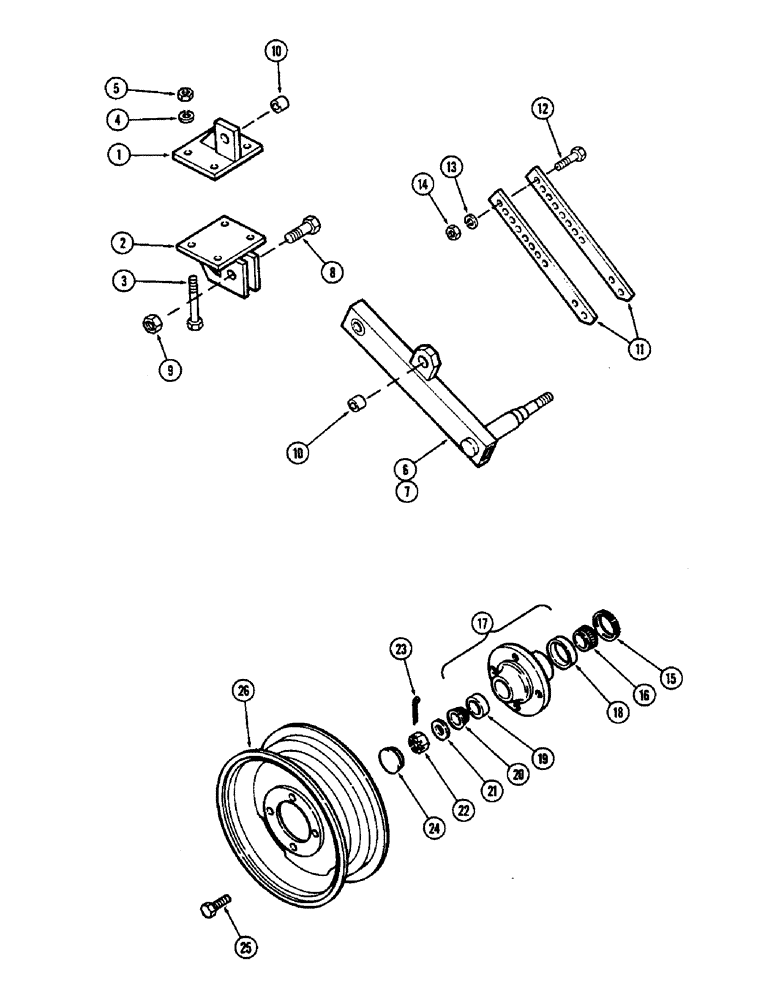

Запчасти Case IH 1300W (56) - OUTRIGGER GAUGE WHEEL, 22 TO 30 FOOT (6.7 TO 9.1 M)

1

T56894

LUG - upper

2шт.

2

T56895

MOUNT - axle

2шт.

3

113-647

BOLT,Hex, 5/8" - 11 x 5", Gr 5

- 5/8 x 5" NC hex (Grade 5)

8шт.

4

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

5

129-107

NUT,5/8"-11, G5

8шт.

6

T53018

AXLE - right

1шт.

7

T53022

AXLE - left

1шт.

8

113-818

BOLT,Hex, 7/8" - 9 x 3-1/2", Gr 5

- 7/8 x 3-1/2" NC hex (Grade 5)

2шт.

9

131-1132

LOCK NUT,7/8"-9, GA

NUT - lock 7/8" NC hex

2шт.

10

T28975

BUSHING

4шт.

11

T56896

STRAP

4шт.

12

113-626

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

4шт.

13

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

14

129-107

NUT,5/8"-11, G5

4шт.

15

B13281

SEAL,38.1mm ID x 59.23mm OD x 10.31mm Thk

- grease

2шт.

16

B12409

BEARING, ROLLER,31.763 mm ID x 16.84 mm

CONE - bearing inner 1-1/4" ID (31.8 MM)

2шт.

17

T26242

HUB

ASSEMBLY - with cups

2шт.

18

B12408

BEARING CUP,59.156 mm OD x 11.862 mm

CUP - bearing inner 2-5/16" OD (58.7 MM)

1шт.

19

B12410

BEARING, CUP,1.782" OD

CUP - bearing outer 1-25/32" OD (45.2 MM)

1шт.

20

B12411

ROLLER BEARING,0.75" ID x 0.655"

CONE - bearing outer 3/4" ID (19.1 MM)

2шт.

21

T28976

WASHER

2шт.

22

25-1912

SLOTTED NUT,3/4"-16, G5, Thk

NUT - 3/4" NF hex slotted

2шт.

23

132-341

COTTER PIN,5/32" x 1 1/2"

5/32" x 1 1/2"

2шт.

24

F63222

DUST CAP,53.98mm OD x 34.92mm W

CAP - hub

2шт.

25

A30064

BOLT

- hub

8шт.

26

T53526

WHEEL

- 15 x 4-1/2" (381.0 x 114.3 MM)

2шт.
