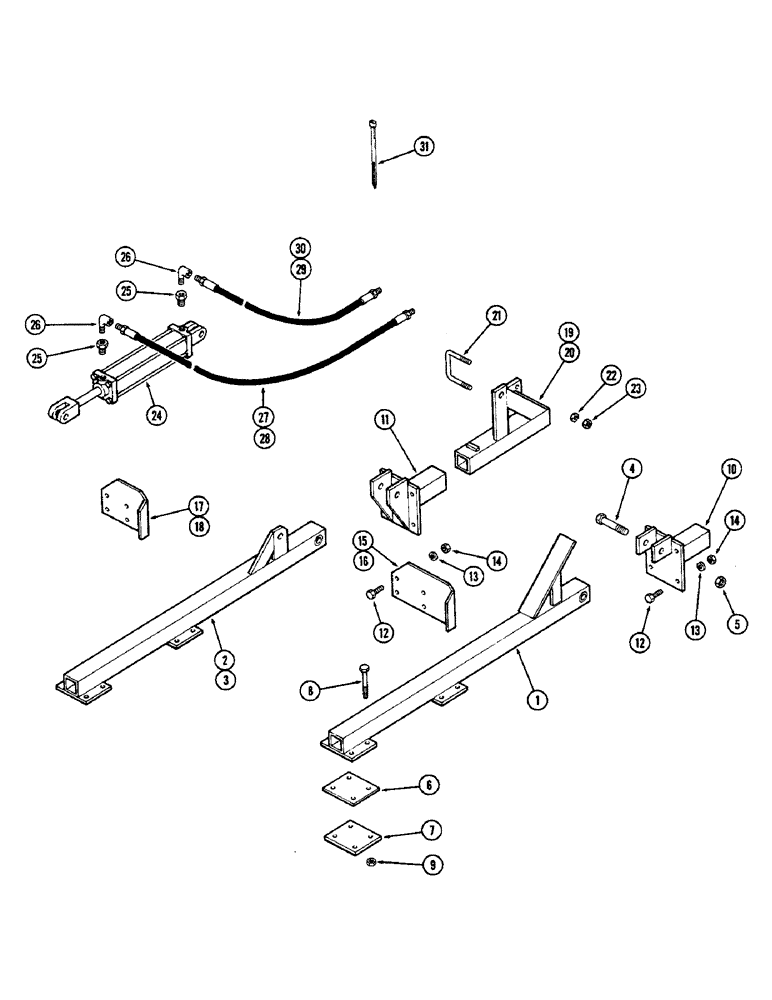

Запчасти Case IH 1300W (54) - TRANSPORT HEIGHT LOWERING KIT, 32 TO 51 FOOT (9.8 TO 15.6 M)

1

T56782

ARM - front wing

2шт.

2

T56783

ARM - rear wing RH

1шт.

3

T56784

ARM - rear wing LH

1шт.

4

113-918

BOLT,Hex, 1" - 8 x 5", Gr 5

- 1 x 5" NC hex (Grade 5)

4шт.

5

131-163

LOCK NUT,1"-8, GA

NUT - lock 1" NC hex

4шт.

6

T56793

PLATE

8шт.

7

T56741

PLATE

8шт.

8

113-647

BOLT,Hex, 5/8" - 11 x 5", Gr 5

- 5/8 x 5" NC hex (Grade 5)

32шт.

9

131-1130

LOCK NUT,5/8"-11, GA

NUT - lock 5/8" NC hex

32шт.

10

T56787

HINGE - front

2шт.

11

T56788

HINGE - rear

2шт.

12

113-607

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

32шт.

13

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

32шт.

14

129-107

NUT,5/8"-11, G5

32шт.

15

T56789

PLATE - front RH

1шт.

16

T56790

PLATE - front LH

1шт.

17

T56791

PLATE - rear RH

1шт.

18

T56792

PLATE - rear LH

1шт.

19

T56785

LUG - cylinder RH

1шт.

20

T56786

LUG - cylinder LH

1шт.

21

T56427

U-BOLT

4шт.

22

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

23

129-107

NUT,5/8"-11, G5

8шт.

24

T55927

CYLINDER - hydraulic 3 x 16" (76.2 x 406.4 MM) See page 46

2шт.

25

221-88

REDUCER,Hex, 1/2" x 1/4" NPT

BUSHING - 1/2 to 1/4"

4шт.

26

221-1402

ELBOW

- 1/4"

4шт.

27

T56954

HOSE - hydraulic 1/4 x 156" (6.4 x 3962.4 MM) 32 to 40 foot (9.8 to 12.2 MM)

2шт.

28

T56955

HOSE - hydraulic 1/4 x 204" (6.4 x 5181.6 MM) 42-1/2 to 51 foot (13.0 to 15.6 M)

2шт.

29

T56959

HOSE - hydraulic 1/4 x 180" (6.4 x 4572.0 MM) 32 to 40 foot (9.8 to 12.2 M)

2шт.

30

T56960

HOSE - hydraulic 1/4 x 222" (6.4 x 5638.8 MM) 42-1/2 to 51 foot (13.0 to 15.6 M)

2шт.

31

T54520

STRAP

TIE - hose

6шт.

T52653

TAPE - teflon (Not illustrated)

1шт.
