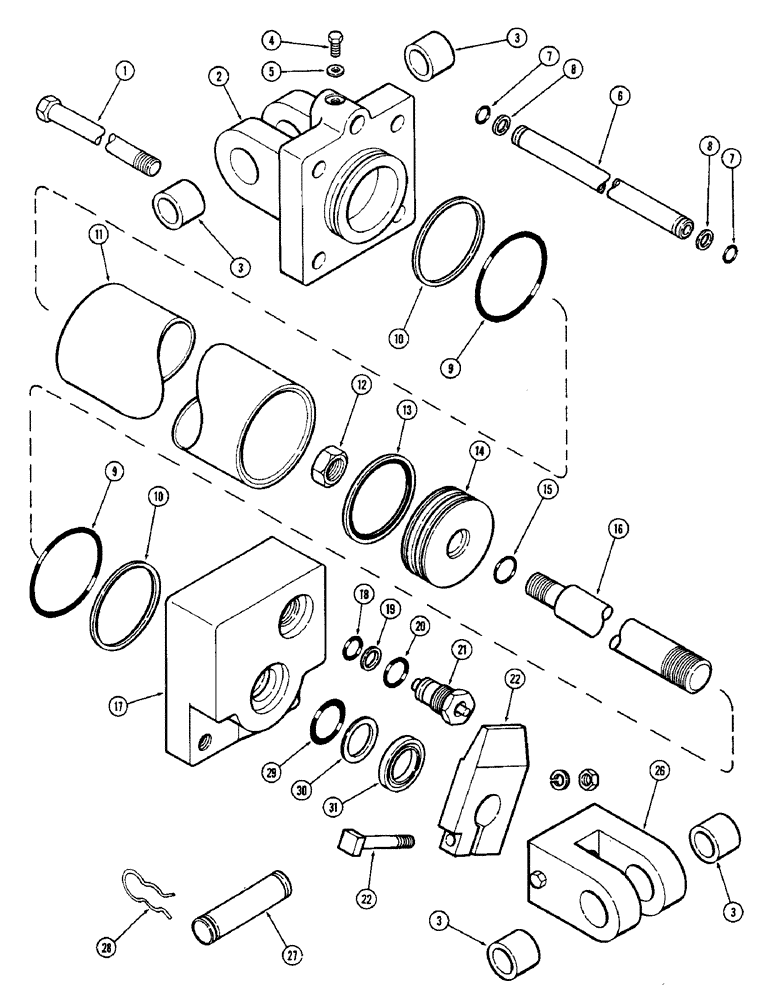

Запчасти Case IH 1300W (44) - CYLINDER 4 X 8 INCH (101.6 X 203.2 MM)

NSS

NOT SOLD SEPARAT

CYLINDER - hydraulic complete, Order T95004 machinery item

1шт.

1

T52941

BOLT

ROD - tie

4шт.

2

T56858

CLEVIS - butt

1шт.

3

T56861

BUSHING

4шт.

4

13-46

BOLT,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd

- 1/4 x 3/8" NC hex, Grade 5

1шт.

5

195-401

SEALING WASHER,3/8"

WASHER - sealing 3/8"

1шт.

6

T56839

TUBE - manifold

1шт.

7

T56862

O-RING

2шт.

Part of Seal Kit, P/N T63292

1шт.

8

T56869

WASHER

- backup

2шт.

Part of Seal Kit, P/N T63292

1шт.

9

T56867

O-RING

2шт.

Part of Seal Kit, P/N T63292

1шт.

10

T56875

WASHER

- backup

2шт.

Part of Seal Kit, P/N T63292

1шт.

11

T56844

TUBE - cylinder

1шт.

12

131-1174

LOCK NUT,1 1/4"-14, GA

NUT - lock 1" NF

1шт.

13

T56879

SEAL

1шт.

Part of Seal Kit, P/N T63292

1шт.

14

T56848

PISTON

1шт.

15

R15365

O-RING,0.989" ID x 1.129" OD x 0.07"

- 1-1/8 x 1 x 1/16", 28.6 x 25.4 x 1.6 MM

1шт.

Part of Seal Kit, P/N T63292

1шт.

16

T56837

ROD - piston

1шт.

17

T56852

GLAND

1шт.

18

A17526

O-RING,0.614" ID x 0.754" OD x 0.7"

- 3/4 x 5/8 x 1/16", 19.1 x 15.9 x 1.6 MM

1шт.

Part of Seal Kit, P/N T63292

1шт.

19

T56870

WASHER

- backup

1шт.

Part of Seal Kit, P/N T63292

1шт.

20

T56868

O-RING

1шт.

Part of Seal Kit, P/N T63292

1шт.

21

T56860

VALVE

ASSEMBLY

1шт.

22

T56853

PLATE

ASSEMBLY - striker

1шт.

26

T56854

CLEVIS

ASSEMBLY

1шт.

27

T52925

PIN

- clevis

2шт.

28

T52926

CLIP

4шт.

29

T13224

O-RING,1.484" ID x 1.762" OD x 0.139"

- 1-3/4 x 1-1/2 x 1/8", 44.5 x 38.1 x 3.2 MM

1шт.

Part of Seal Kit, P/N T63292

1шт.

30

H745687

WASHER

- backup

1шт.

Part of Seal Kit, P/N T63292

1шт.

31

T52945

WIPER SEAL

WIPER

1шт.

Part of Seal Kit, P/N T63292

1шт.

T63292

KIT

- seal, Includes: ref. nos. 7, 8, 9, 10, 13, 15, 18, 19, 20, 29, 30, 31

1шт.
