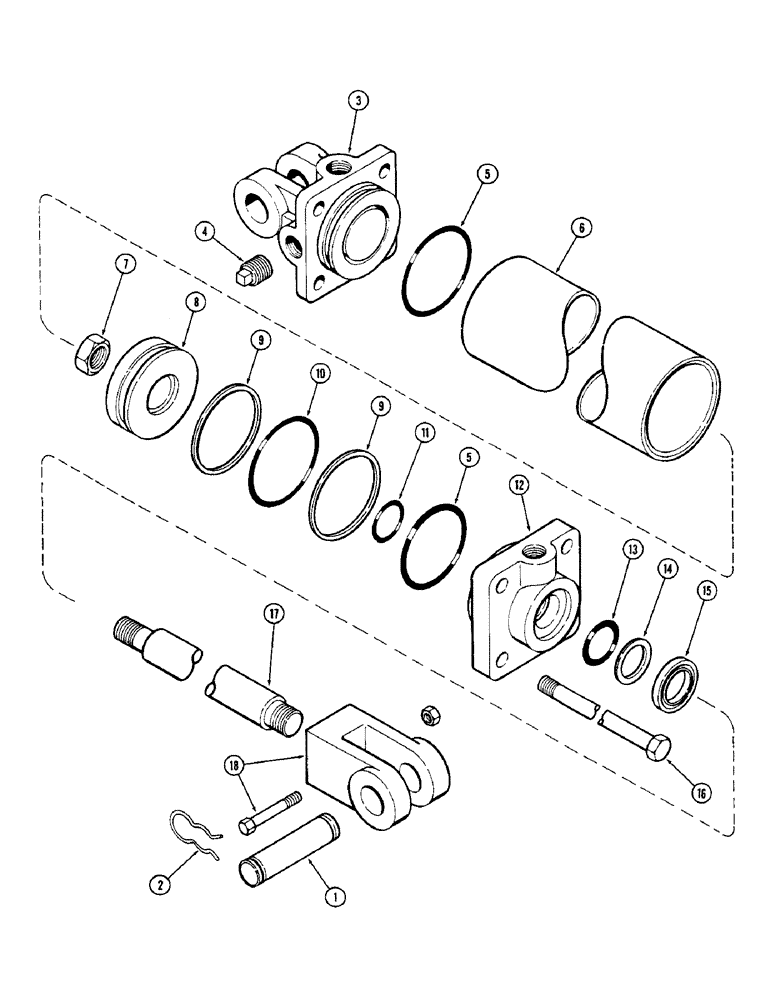

Запчасти Case IH 1300W (42) - CYLINDER 3-3/4 X 8 INCH (95.3 X 203.2 MM)

NSS

NOT SOLD SEPARAT

CYLINDER - hydraulic complete, Order T95005 machinery item

1шт.

1

T53058

PIN

- clevis

2шт.

2

T52926

CLIP

4шт.

3

T57459

CLEVIS - butt

1шт.

4

221-1844

PLUG,Hex Soc, 1/2"-14

- pipe 1/2"

1шт.

5

T56866

O-RING

2шт.

Part of Seal Kit, P/N T63291

1шт.

6

T57458

TUBE

1шт.

7

131-1151

NUT - lock 3/4" NF

1шт.

8

T56847

PISTON

1шт.

9

T56874

WASHER

- backup

2шт.

Part of Seal Kit, P/N T63291

1шт.

10

T56878

SEAL

1шт.

Part of Seal Kit, P/N T63291

1шт.

11

D32114

O-RING,0.75" ID x 0.875" OD

- 7/8 x 3/4 x 1/16, 22.2 x 19.1 x 1.6 MM

1шт.

Part of Seal Kit, P/N T63291

1шт.

12

T56851

GLAND

1шт.

13

A30915

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

- 1-5/8 x 1-3/8 x 1/8", 41.3 x 34.9 x 3.2 MM

1шт.

Part of Seal Kit, P/N T63291

1шт.

14

L32992

RING

WASHER - backup

1шт.

Part of Seal Kit, P/N T63291

1шт.

15

T53294

WIPER SEAL

WIPER

1шт.

Part of Seal Kit, P/N T63291

1шт.

16

T57460

TIE-ROD

ROD - tie

4шт.

17

T57457

ROD - piston

1шт.

18

T53290

CLEVIS

ASSEMBLY

1шт.

T63291

KIT

- seal, Includes: ref. nos. 5, 9, 10, 11, 13, 14, 15

1шт.
