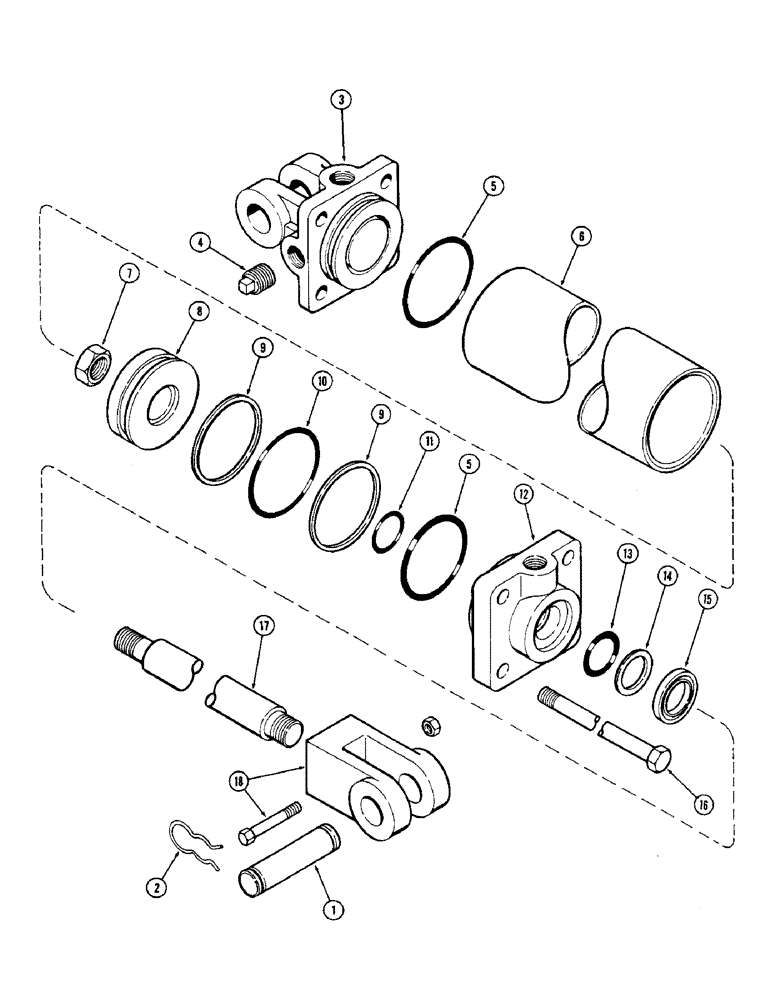

Запчасти Case IH 1300W (40) - CYLINDER 3-1/2 X 8 INCH (88.9 X 203.2 MM)

NSS

NOT SOLD SEPARAT

CYLINDER - hydraulic complete, Order T95006 machinery item

1шт.

1

T53058

PIN

- clevis

2шт.

2

T52926

CLIP

4шт.

3

T56856

CLEVIS

- butt

1шт.

4

221-1844

PLUG,Hex Soc, 1/2"-14

- pipe 1/2"

1шт.

5

T56865

O-RING

2шт.

Part of Seal Kit, P/N T63290

1шт.

6

T56842

TUBE - cylinder

1шт.

7

131-1151

NUT - lock 3/4" NF

1шт.

8

T56846

PISTON

1шт.

9

T56873

WASHER

- backup

2шт.

Part of Seal Kit, P/N T63290

1шт.

10

T56877

SEAL

1шт.

Part of Seal Kit, P/N T63290

1шт.

11

D32114

O-RING,0.75" ID x 0.875" OD

- 7/8 x 3/4 x 1/16", 22.2 x 19.1 x 1.6 MM

1шт.

Part of Seal Kit, P/N T63290

1шт.

12

T56850

GLAND

1шт.

13

56863

O-RING

1шт.

Part of Seal Kit, P/N T63290

1шт.

14

T56871

WASHER

- backup

1шт.

Part of Seal Kit, P/N T63290

1шт.

15

T56880

WIPER SEAL

WIPER

1шт.

Part of Seal Kit, P/N T63290

1шт.

16

T53050

TIE-ROD

ROD - tie

4шт.

17

T56835

ROD

- piston

1шт.

18

T53290

CLEVIS

ASSEMBLY

1шт.

T63290

KIT

- seal, Includes: ref. nos. 5, 9, 10, 11, 13, 14, 15

1шт.
