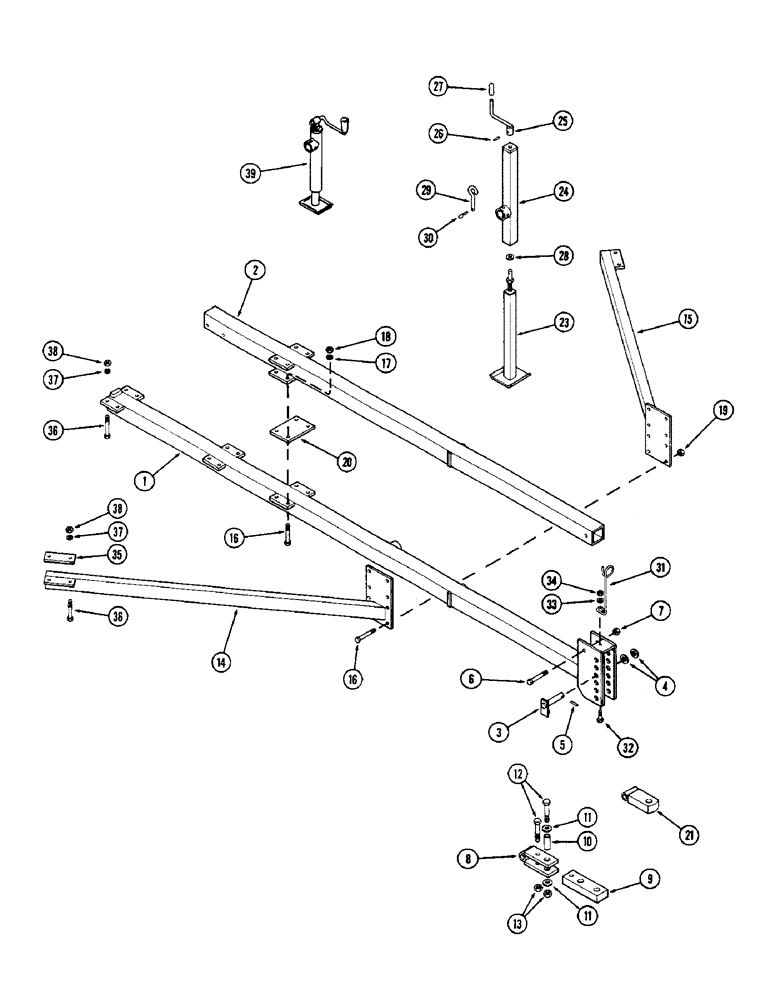

Запчасти Case IH 1300W (02) - HITCH, 22 TO 30 FOOT (6.7 TO 9.1 M)

1

T56722

HITCH - lower

1шт.

2

T56723

HITCH - upper

1шт.

3

T37941

PIN

- clevis

1шт.

4

195-561

WASHER - 3 x 1-7/16" x 10 gauge

2шт.

5

T28978

PIN - drive

1шт.

6

113-725

BOLT,Hex, 3/4" - 10 x 5-1/2", Gr 5

- 3/4 x 5-1/2" NC hex (Grade 5)

1шт.

7

131-1131

LOCK NUT,3/4"-10, GA

NUT - lock 3/4" NC hex

1шт.

8

T55360

CLEVIS

1шт.

9

T55361

BLOCK - clevis

1шт.

10

T55362

SLEEVE - clevis

1шт.

11

T55363

WASHER

2шт.

12

113-918

BOLT,Hex, 1" - 8 x 5", Gr 5

- 1 x 5" NC hex (Grade 5)

2шт.

13

131-163

LOCK NUT,1"-8, GA

NUT - lock 1" NC hex

2шт.

14

T56725

BRACE - hitch RH

1шт.

15

T56726

BRACE - hitch LH

1шт.

16

113-643

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5

12шт.

17

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

18

129-107

NUT,5/8"-11, G5

4шт.

19

131-1130

LOCK NUT,5/8"-11, GA

NUT - lock 5/8" NC hex

8шт.

20

T56724

PLATE

1шт.

21

T28920

CLEVIS - block

1шт.

23

T52893

BASE - jack (Order T57327)

1шт.

24

T52894

PIPE,27.75" L

TUBE - jack outer (Order T57327)

1шт.

25

T52895

HANDLE - jack

1шт.

26

T52900

PIN - drive

1шт.

27

T52899

HANDLE

PLASTIC - handle

1шт.

28

T52898

THRUST BEARING

BEARING - thrust

1шт.

29

T35425

PIN - clevis

1шт.

30

T28981

COTTER

1шт.

31

T35693

CARRIER - hose

1шт.

32

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

1шт.

33

195-106

WASHER,1/2"

- 1-3/8 x 9/16" x 12 gauge

1шт.

34

131-1182

LOCK NUT,1/2"-13, GA

NUT - lock 1/2" NC hex

1шт.

35

T56727

PLATE

2шт.

36

113-647

BOLT,Hex, 5/8" - 11 x 5", Gr 5

- 5/8 x 5" NC hex (Grade 5)

12шт.

37

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

12шт.

38

129-107

NUT,5/8"-11, G5

12шт.

39

T57327

JACK - hitch

1шт.

T57328

TUBE - outer (Not illustrated)

1шт.

T63259

KIT - crank (Not illustrated)

1шт.

T63328

KIT - hitch pin (Not illustrated)

1шт.

T63329

KIT - inner ram (Not illustrated)

1шт.
