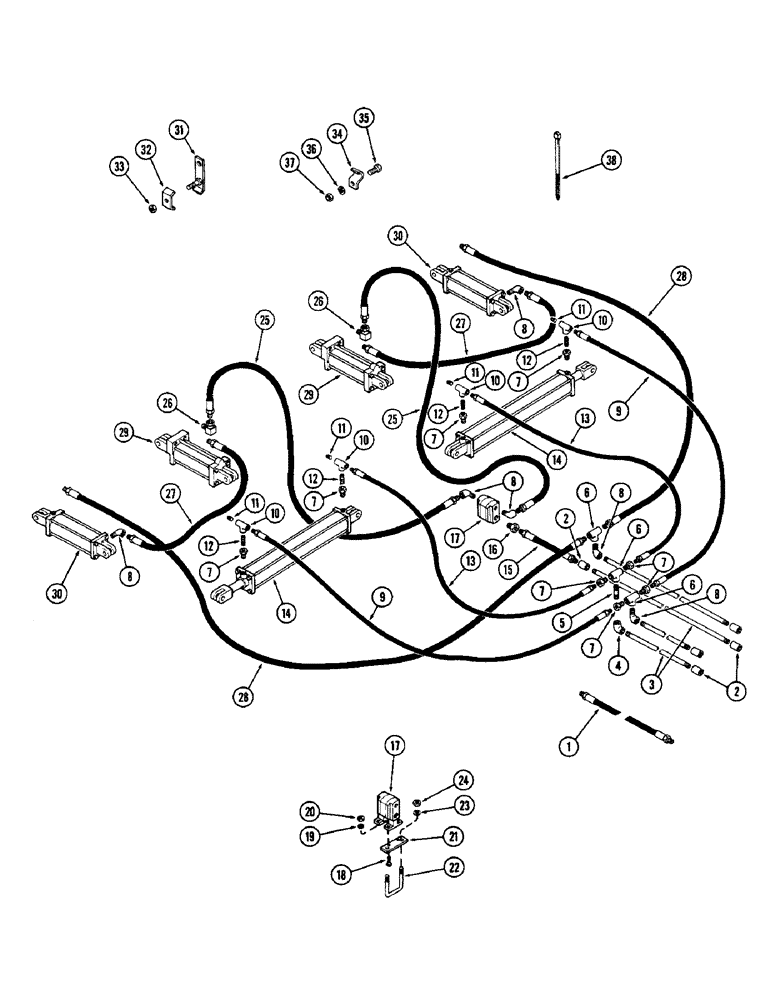

Запчасти Case IH 1300W (36) - HYDRAULIC SYSTEM, 42-1/2 TO 51 FOOT (13.0 TO 15.6 M)

1

T56943

HOSE - hydraulic 1/2 x 96" (12.7 x 2438.4, Serial Range: MM)-tractor

4шт.

2

221-1338

COUPLING,Pipe, 1/2" NPT

- 1/2"

5шт.

3

T56829

PIPE - 1/2 x 120" (12.7 x 3048.0 MM)

4шт.

4

221-1377

ELBOW,90 Degree, 1/2" NPT

- 1/2"

1шт.

5

221-1192

FITTING

NIPPLE - 1/2 x 3"

1шт.

6

221-1424

TEE,Pipe, 1/2" NPT

FITTING - 1/2"

3шт.

7

221-88

REDUCER,Hex, 1/2" x 1/4" NPT

BUSHING - 1/2 to 1/4"

8шт.

8

221-1414

ELBOW,90 Degree, 1/2"-14, NPT

- 1/2"

6шт.

9

T56953

HOSE - hydraulic 1/4 x 84" (6.4 x 2133.6 MM)

2шт.

10

221-1422

TEE,Pipe, 1/4" NPT

FITTING - 1/4"

4шт.

11

221-1012

DRAIN PLUG,Sq Hd, 1/4"-18 NPTF

PLUG - pipe 1/4"

4шт.

12

221-1137

PIPE,Nipple, 1/4" NPT x 2"

NIPPLE - 1/4 x 2"

4шт.

13

T56956

HOSE - hydraulic 1/4 x 54" (6.4 x 1371.6 MM)

2шт.

14

T56830

CYLINDER - hydraulic 4 x 30" (101.6 x 762.0 MM) See page 52

2шт.

15

T28958

HOSE - hydraulic 1/2 x 23" (12.7 x 584.2 MM)

1шт.

16

221-1093

REDUCER,Hex, 3/4" x 1/2" NPT

BUSHING - 1/2 x 3/4"

1шт.

17

T56882

FLOW DIVIDER

1шт.

18

118-124

X

BOLT - plow 3/8 x 1-1/4" NC

4шт.

19

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

20

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

21

T56711

BRACKET

2шт.

22

T51881

U-BOLT

(order T51888)

2шт.

23

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

24

129-107

NUT,5/8"-11, G5

4шт.

25

T56947

HOSE - hydraulic 1/2 x 144" (12.7 x 3657.6 MM)

2шт.

26

218-927

ELBOW,90 Degree, 1/2" NPTF Male x 1/2" NPSM Fem Sw

- swivel 1/2"

2шт.

27

T56951

HOSE - hydraulic 1/2 x 240" (12.7 x 6096.0 MM)

2шт.

28

T56958

HOSE - hydraulic 1/2 x 312" (12.7 x 7924.8 MM)

2шт.

29

NSS

NOT SOLD SEPARAT

CYLINDER - hydraulic 4 x 8" (101.6 x 203.2 MM) See page 44

2шт.

30

NSS

NOT SOLD SEPARAT

CYLINDER - hydraulic 3-3/4 x 8" (95.3 x 203.2 MM) See page 42

2шт.

31

T56827

RETAINER

2шт.

32

T56828

RETAINER

4шт.

33

230-4216

LOCK NUT,3/8"-16, GA

NUT - lock 3/8" NC hex

4шт.

34

T56769

RETAINER

8шт.

35

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

8шт.

36

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

37

129-105

NUT,Hex, 1/2" - 13, Gr 5

8шт.

38

T54520

STRAP

TIE - hose

28шт.

T52653

TAPE - teflon (Not illustrated)

3шт.
