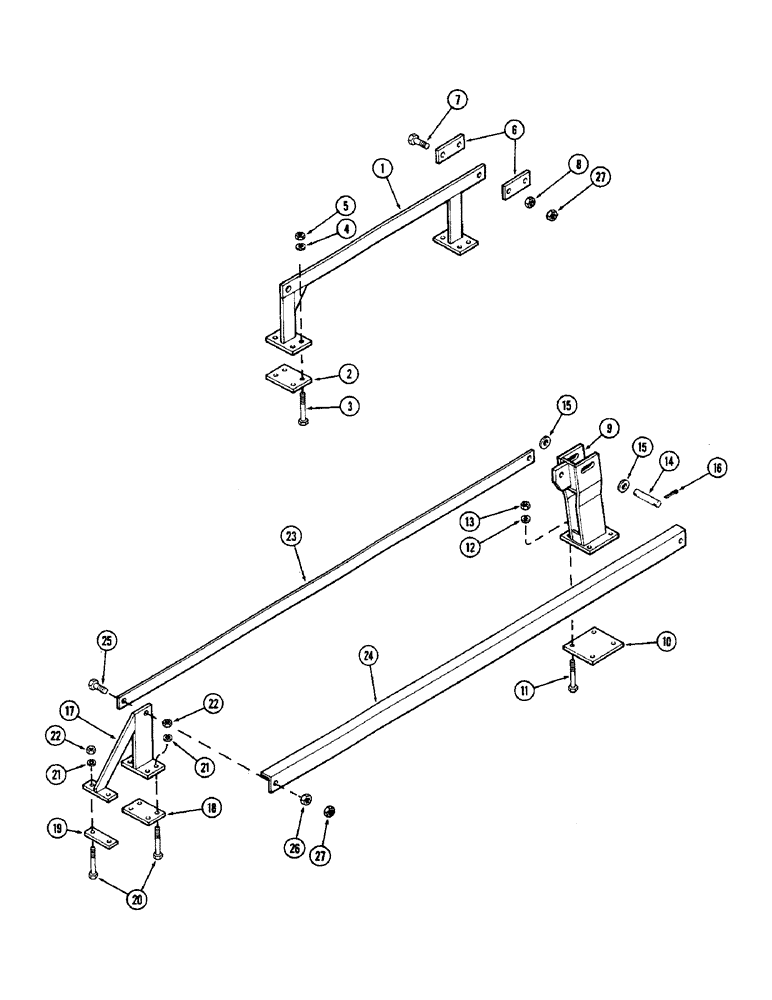

Запчасти Case IH 1300W (34) - CYLINDER MOUNTS, 42-1/2 TO 51 FOOT (13.0 TO 15.6 M)

1

T56814

LUG - cylinder

2шт.

2

T56757

PLATE

4шт.

3

113-647

BOLT,Hex, 5/8" - 11 x 5", Gr 5

- 5/8 x 5" NC hex (Grade 5)

16шт.

4

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

16шт.

5

129-107

NUT,5/8"-11, G5

16шт.

6

T56758

CONNECTOR

2шт.

7

113-716

BOLT,Hex, 3/4" - 10 x 3", Gr 5

2шт.

8

131-1131

LOCK NUT,3/4"-10, GA

NUT - lock 3/4" NC hex

2шт.

9

T56821

LUG - cylinder

2шт.

10

T56767

PLATE

2шт.

11

113-647

BOLT,Hex, 5/8" - 11 x 5", Gr 5

- 5/8 x 5" NC hex (Grade 5)

8шт.

12

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

13

129-107

NUT,5/8"-11, G5

8шт.

14

T56037

PIN

2шт.

15

195-553

WASHER,1", SAE

- 2 x 1-1/16" x 12 gauge

4шт.

16

132-313

COTTER PIN,1/4" x 2"

PIN, Split (Cotter), 1/4" x 2"

4шт.

17

T56768

LUB - brace

2шт.

18

T56757

PLATE

2шт.

19

T56733

BRACKET

2шт.

20

113-647

BOLT,Hex, 5/8" - 11 x 5", Gr 5

- 5/8 x 5" NC hex (Grade 5)

12шт.

21

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

12шт.

22

129-107

NUT,5/8"-11, G5

12шт.

23

T56812

STRAP

2шт.

24

T56813

BRACE

2шт.

25

113-774

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 8

- 3/4 x 2-1/2" NC hex (Grade 5)

4шт.

26

131-1131

LOCK NUT,3/4"-10, GA

NUT - lock 3/4" NC hex

4шт.

27

129-148

JAM NUT,Jam, 3/4"-10, G5

- 3/4" NC hex

6шт.
