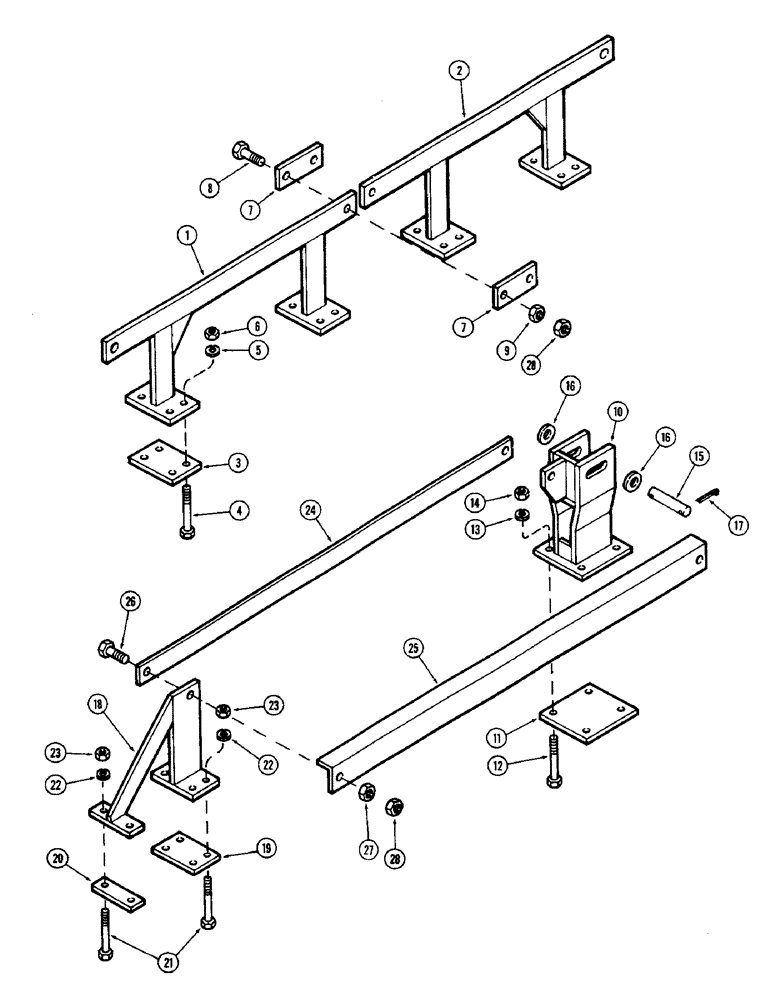

Запчасти Case IH 1300W (30) - CYLINDER MOUNTS, 32 TO 40 FOOT (9.8 TO 12.2 M)

1

T56756

LUG - cylinder RH

1шт.

2

T56755

LUG - cylinder LH

1шт.

3

T56757

PLATE

4шт.

4

113-647

BOLT,Hex, 5/8" - 11 x 5", Gr 5

- 5/8 x 5" NC hex (Grade 5)

16шт.

5

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

16шт.

6

129-107

NUT,5/8"-11, G5

16шт.

7

T56758

CONNECTOR

2шт.

8

113-716

BOLT,Hex, 3/4" - 10 x 3", Gr 5

2шт.

9

131-1131

LOCK NUT,3/4"-10, GA

NUT - lock 3/4" NC hex

2шт.

10

T56766

LUG - cylinder

2шт.

11

T56767

PLATE

2шт.

12

113-647

BOLT,Hex, 5/8" - 11 x 5", Gr 5

- 5/8 x 5" NC hex (Grade 5)

8шт.

13

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

14

129-107

NUT,5/8"-11, G5

8шт.

15

T56037

PIN

2шт.

16

195-553

WASHER,1", SAE

- 2 x 1-1/16" x 12 gauge

4шт.

17

132-313

COTTER PIN,1/4" x 2"

PIN, Split (Cotter), 1/4" x 2"

4шт.

18

T56768

LUG - brace

2шт.

19

T56757

PLATE

2шт.

20

T56733

BRACKET

2шт.

21

113-647

BOLT,Hex, 5/8" - 11 x 5", Gr 5

- 5/8 x 5" NC hex (Grade 5)

12шт.

22

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

12шт.

23

129-107

NUT,5/8"-11, G5

12шт.

24

T56746

STRAP

2шт.

25

T56747

BRACE

2шт.

26

113-774

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 8

- 3/4 x 2-1/2" NC hex (Grade 5)

4шт.

27

131-1131

LOCK NUT,3/4"-10, GA

NUT - lock 3/4" NC hex

4шт.

28

129-148

JAM NUT,Jam, 3/4"-10, G5

- 3/4" NC hex

6шт.
