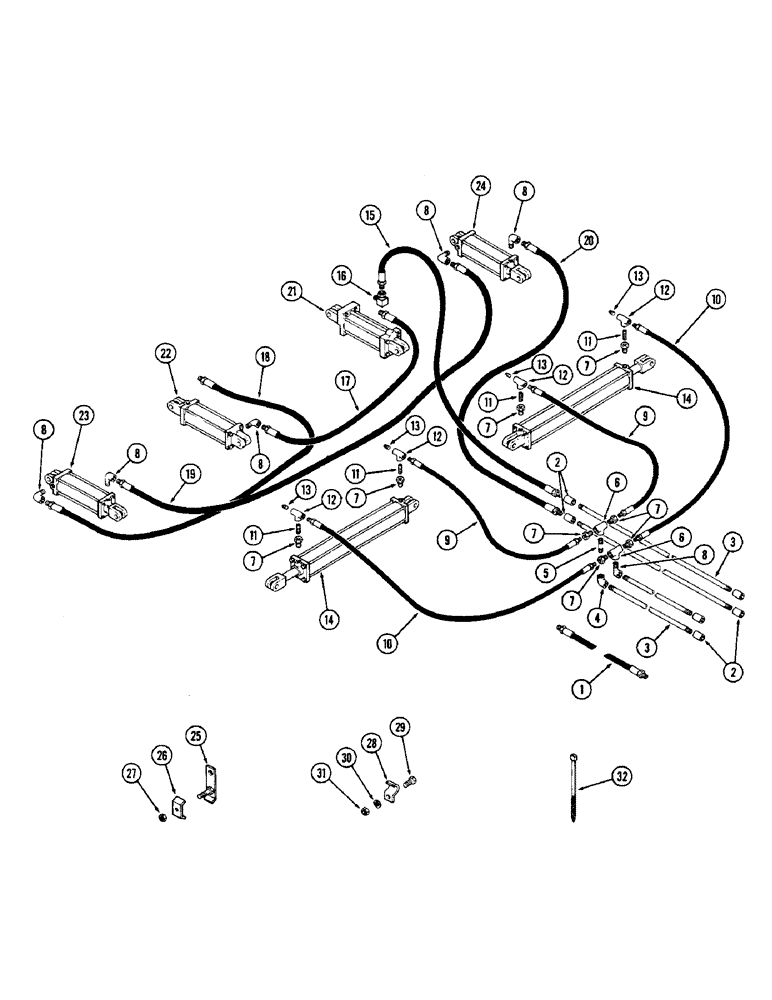

Запчасти Case IH 1300W (28) - HYDRAULIC SYSTEM, 22 TO 30 FOOT (6.7 TO 9.1 M)

1

T56943

HOSE - hydraulic 1/2 x 96" (12.7 x 2438.4, Serial Range: MM)-tractor

4шт.

2

221-1338

COUPLING,Pipe, 1/2" NPT

- 1/2"

6шт.

3

T56760

PIPE - 1/2 x 84" (12.7 x 2133.6 MM)

4шт.

4

221-1377

ELBOW,90 Degree, 1/2" NPT

- 1/2"

1шт.

5

221-1192

FITTING

NIPPLE - 1/2 x 3"

1шт.

6

221-1424

TEE,Pipe, 1/2" NPT

FITTING - 1/2"

2шт.

7

221-88

REDUCER,Hex, 1/2" x 1/4" NPT

BUSHING - 1/2 to 1/4"

8шт.

8

221-1414

ELBOW,90 Degree, 1/2"-14, NPT

- 1/2"

6шт.

9

T56946

HOSE - hydraulic 1/4 x 24" (6.4 x 609.6 MM)

2шт.

10

T56956

HOSE - hydraulic 1/4 x 54" (6.4 x 1371.6 MM)

2шт.

11

221-1137

PIPE,Nipple, 1/4" NPT x 2"

NIPPLE - 1/4 x 2"

4шт.

12

221-1422

TEE,Pipe, 1/4" NPT

FITTING - 1/4"

4шт.

13

221-1012

DRAIN PLUG,Sq Hd, 1/4"-18 NPTF

PLUG - pipe 1/4"

4шт.

14

NSS

NOT SOLD SEPARAT

CYLINDER - hydraulic 3 x 24" (76.2 x 609.6 MM) See page 48

2шт.

15

T56945

HOSE - hydraulic 1/2 x 108" (12.7 x 2743.2 MM)

1шт.

16

218-927

ELBOW,90 Degree, 1/2" NPTF Male x 1/2" NPSM Fem Sw

- swivel 1/2"

1шт.

17

T56947

HOSE - hydraulic 1/2 x 144" (12.7 x 3657.6 MM)

1шт.

18

T56949

HOSE - hydraulic 1/2 x 192" (12.7 x 4876.8 MM)

1шт.

19

T56958

HOSE - hydraulic 1/2 x 312" (12.7 x 7924.8 MM)

1шт.

20

T56948

HOSE - hydraulic 1/2 x 168" (12.7 x 4267.2 MM)

1шт.

21

NSS

NOT SOLD SEPARAT

CYLINDER - hydraulic 4 x 8" (101.6 x 203.2 MM) See page 44

1шт.

22

NSS

NOT SOLD SEPARAT

CYLINDER - hydraulic 3-3/4 x 8" (95.3 x 203.2) See page 42

1шт.

23

NSS

NOT SOLD SEPARAT

CYLINDER - hydraulic 3-1/2 x 8" (88.9 x 203.2 MM) See page 40

1шт.

24

NSS

NOT SOLD SEPARAT

CYLINDER - hydraulic 3-1/4 x 8" (82.6 x 203.2 MM) See page 38

1шт.

25

T56827

RETAINER

2шт.

26

T56828

RETAINER

4шт.

27

230-4216

LOCK NUT,3/8"-16, GA

NUT - lock 3/8" NC hex

4шт.

28

T56769

RETAINER

4шт.

29

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

4шт.

30

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

31

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

32

T54520

STRAP

TIE - hose

26шт.

T52653

TAPE - teflon (Not illustrated)

3шт.
