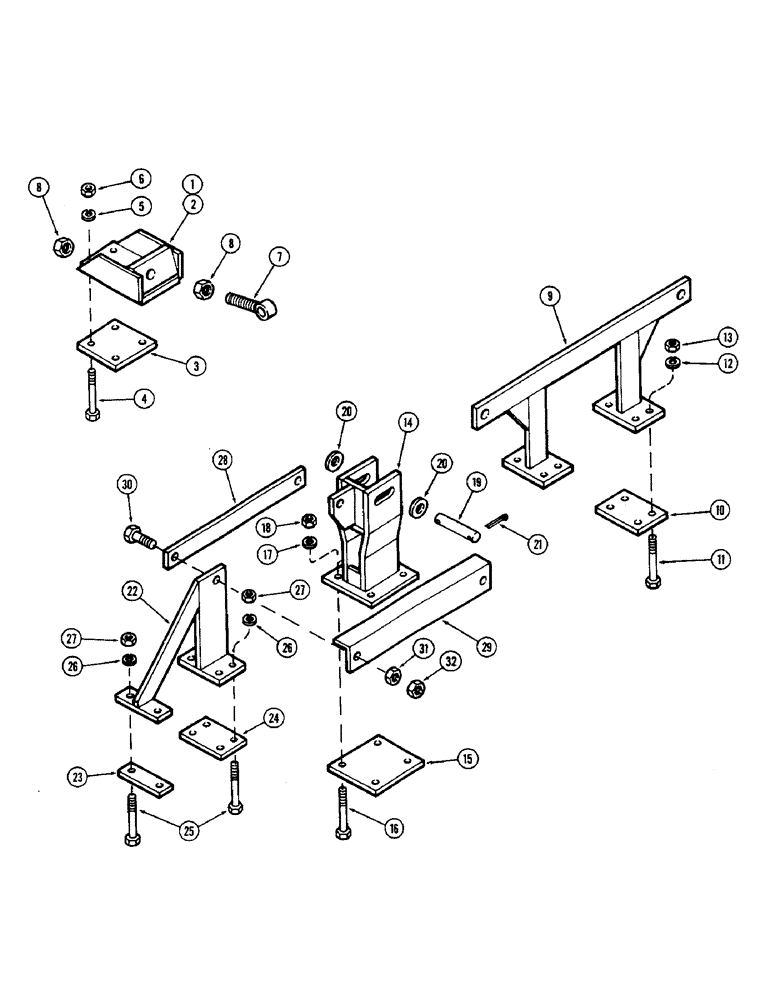

Запчасти Case IH 1300W (26) - CYLINDER MOUNTS, 22 TO 30 FOOT (6.7 TO 9.1 M)

1

T56763

LUG - right wing cylinder

1шт.

2

T56764

LUG - left wing cylinder

1шт.

3

T56759

PLATE

2шт.

4

113-647

BOLT,Hex, 5/8" - 11 x 5", Gr 5

- 5/8 x 5" NC hex (Grade 5)

8шт.

5

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

6

129-107

NUT,5/8"-11, G5

8шт.

7

T57303

BOLT - adjusting

2шт.

8

129-150

NUT,Jam, 1"-8, G5

- 1" NC hex

4шт.

9

T56754

MOUNT - cylinder

1шт.

10

T56757

PLATE

2шт.

11

113-647

BOLT,Hex, 5/8" - 11 x 5", Gr 5

- 5/8 x 5" NC hex (Grade 5)

8шт.

12

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

13

129-107

NUT,5/8"-11, G5

8шт.

14

T56766

LUG - cylinder

2шт.

15

T56767

PLATE

2шт.

16

113-647

BOLT,Hex, 5/8" - 11 x 5", Gr 5

- 5/8 x 5" NC hex (Grade 5)

8шт.

17

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

18

129-107

NUT,5/8"-11, G5

8шт.

19

T56037

PIN

2шт.

20

195-553

WASHER,1", SAE

- 2 x 1-1/16" x 12 gauge

4шт.

21

132-313

COTTER PIN,1/4" x 2"

PIN, Split (Cotter), 1/4" x 2"

4шт.

22

T56768

LUG - brace

2шт.

23

T56733

BRACKET

2шт.

24

T56757

PLATE

2шт.

25

113-647

BOLT,Hex, 5/8" - 11 x 5", Gr 5

- 5/8 x 5" NC hex (Grade 5)

12шт.

26

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

12шт.

27

129-107

NUT,5/8"-11, G5

12шт.

28

T56742

STRAP

2шт.

29

T56743

BRACE

2шт.

30

113-774

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 8

- 3/4 x 2-1/2" NC hex (Grade 5)

4шт.

31

131-1131

LOCK NUT,3/4"-10, GA

NUT - lock 3/4" NC hex

4шт.

32

129-148

JAM NUT,Jam, 3/4"-10, G5

- 3/4" NC hex

4шт.
