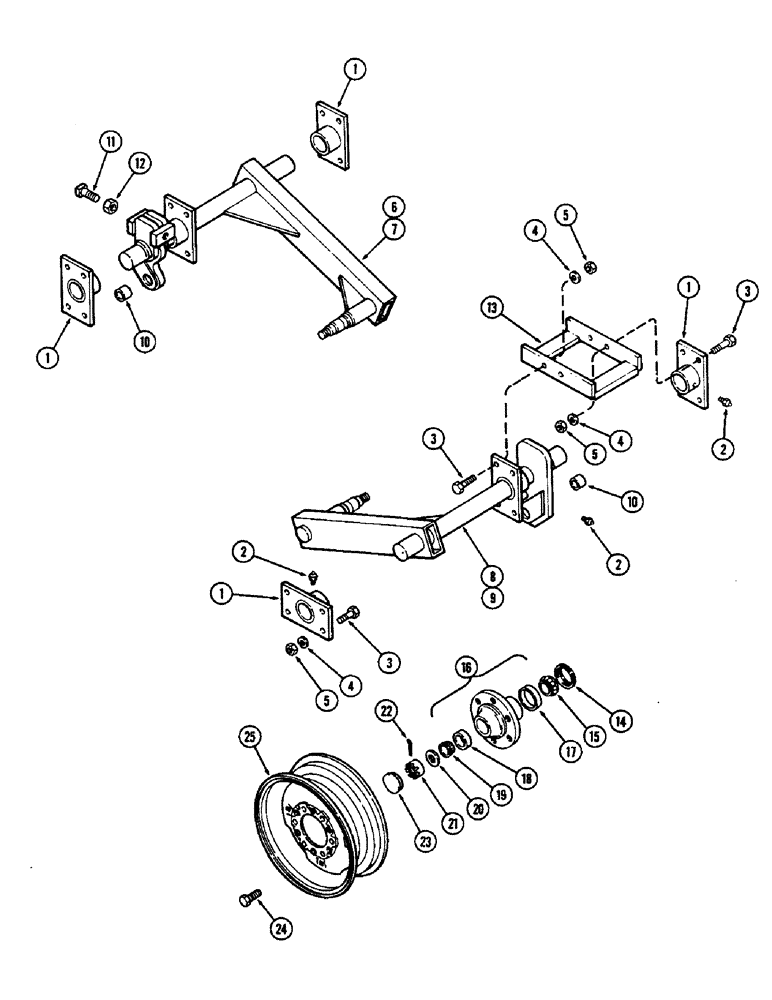

Запчасти Case IH 1300W (24) - AXLES AND WHEELS - WING FRAME, 32 TO 51 FOOT (9.8 TO 15.6 M)

1

T56819

BEARING - axle

8шт.

2

219-22

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease 1/8"

12шт.

3

113-600

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

48шт.

4

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

48шт.

5

129-107

NUT,5/8"-11, G5

48шт.

6

T56777

AXLE - inner RH

1шт.

7

T56776

AXLE - inner LH

1шт.

8

T56778

AXLE - outer RH

1шт.

9

T56779

AXLE - outer LH

1шт.

10

T56984

BUSHING

- tension

4шт.

11

85-1236

SET SCREW - 3/4 x 2-1/4" NC square head

4шт.

12

129-148

JAM NUT,Jam, 3/4"-10, G5

- 3/4" NC hex

4шт.

13

T56824

STOP - axle

2шт.

14

T52904

SEAL

- grease

4шт.

15

T54089

ROLLER BEARING,38 mm ID x 17.076 mm

CONE - bearing inner

4шт.

16

T54088

HUB

ASSEMBLY - with cups

4шт.

17

T54090

BEARING CUP,63 mm OD x 13.5 mm

CUP - bearing inner

1шт.

18

B12408

BEARING CUP,59.156 mm OD x 11.862 mm

CUP - bearing outer 2-5/16" OD (58.7 MM)

1шт.

19

B12409

BEARING, ROLLER,31.763 mm ID x 16.84 mm

CONE - bearing outer 1-1/4" ID (31.8 MM)

4шт.

20

195-50

WASHER,7/8" x 2" x .165"

- 2 x 15/16" x 8 gauge

4шт.

21

425-1914

SLOTTED NUT,7/8"-14, G5, Thk

NUT, SLOTTED, 7/8"-14, G5, Thk

4шт.

22

132-341

COTTER PIN,5/32" x 1 1/2"

5/32" x 1 1/2"

4шт.

23

T23707

CAP

- hub

4шт.

24

T40045

WHEEL BOLT

BOLT - hub

24шт.

25

A57879

RIM

WHEEL - 15 x 8" (381.0 x 203.2 MM)

4шт.
