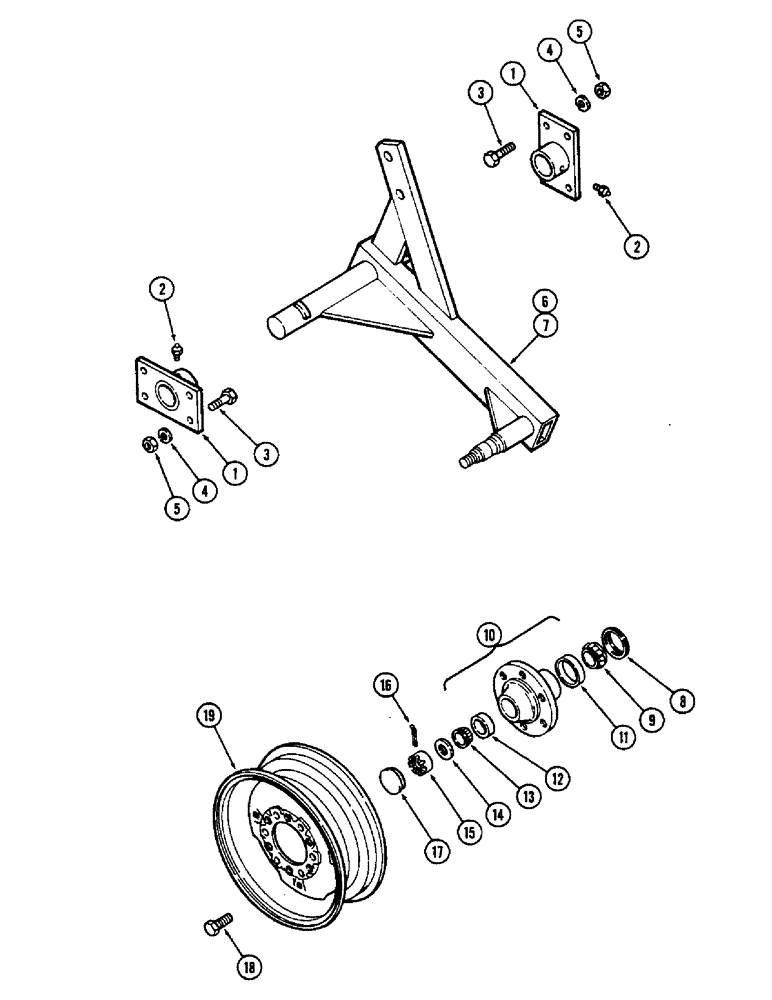

Запчасти Case IH 1300W (22) - AXLES AND WHEELS - WING FRAME, 22 TO 30 FOOT (6.7 TO 9.1 M)

1

T56819

BEARING - axle

4шт.

2

219-22

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease 1/8"

4шт.

3

113-600

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

16шт.

4

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

16шт.

5

129-107

NUT,5/8"-11, G5

16шт.

6

T56761

AXLE - RH

1шт.

7

T56762

AXLE - LH

1шт.

8

T52904

SEAL

- grease

2шт.

9

T54089

ROLLER BEARING,38 mm ID x 17.076 mm

CONE - bearing inner

2шт.

10

T54088

HUB

ASSEMBLY - with cups

2шт.

11

T54090

BEARING CUP,63 mm OD x 13.5 mm

CUP - bearing inner

1шт.

12

B12408

BEARING CUP,59.156 mm OD x 11.862 mm

CUP - bearing outer 2-5/16" OD (58.7 MM)

1шт.

13

B12409

BEARING, ROLLER,31.763 mm ID x 16.84 mm

CONE - bearing outer 1-1/4" ID (31.8 MM)

2шт.

14

195-50

WASHER,7/8" x 2" x .165"

- 2 x 15/16" x 8" gauge

2шт.

15

425-1914

SLOTTED NUT,7/8"-14, G5, Thk

NUT, SLOTTED, 7/8"-14, G5, Thk

2шт.

16

132-341

COTTER PIN,5/32" x 1 1/2"

5/32" x 1 1/2"

2шт.

17

T23707

CAP

- hub

2шт.

18

T40045

WHEEL BOLT

BOLT - hub

12шт.

19

A57879

RIM

WHEEL - 15 x 8" (381.0 x 203.2 MM)

2шт.
