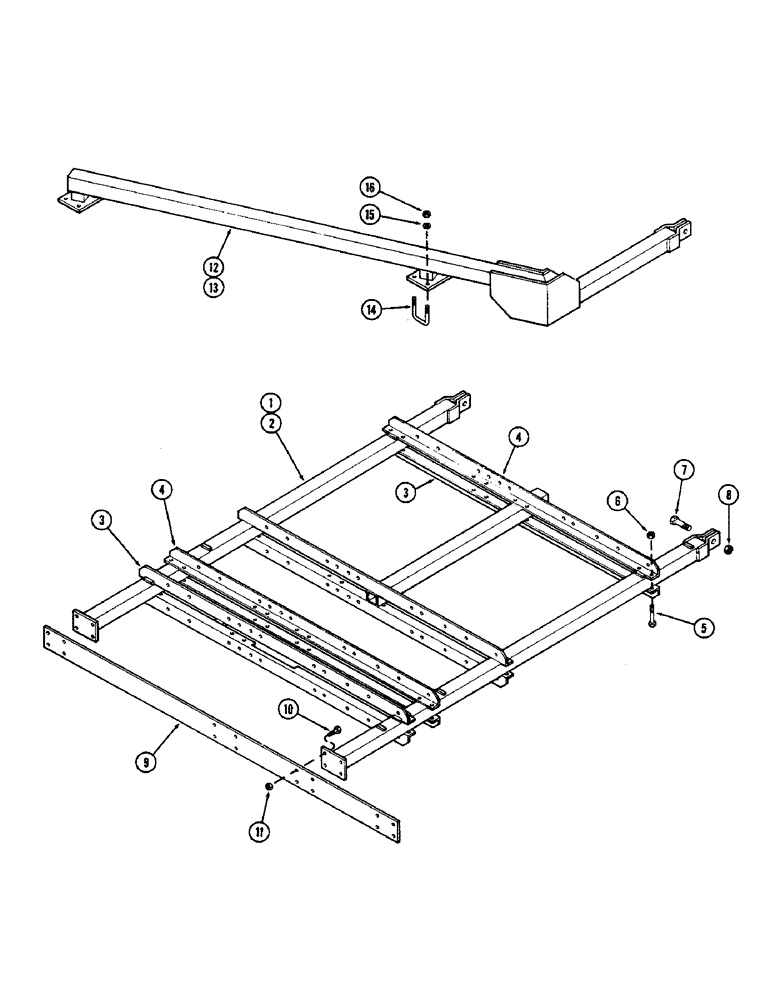

Запчасти Case IH 1300W (18) - WING FRAMES, 32 TO 40 FOOT (9.8 TO 12.2 M)

1

T56720

FRAME ASSEMBLY - wing RH

1шт.

2

T56721

FRAME ASSEMBLY - wing LH

1шт.

3

T56715

ANGLE - short RH

4шт.

4

T56716

ANGLE - short LH

4шт.

5

113-409

BOLT,Hex, 1/2" - 13 x 4", Gr 5

- 1/2 x 4" NC hex (Grade 5)

40шт.

6

131-1182

LOCK NUT,1/2"-13, GA

NUT - lock 1/2" NC hex

40шт.

7

113-925

BOLT,Hex, 1" - 8 x 3", Gr 5

- 1 x 3" NC hex (Grade 5)

6шт.

8

131-163

LOCK NUT,1"-8, GA

NUT - lock 1" NC hex

6шт.

9

T56750

END BAR

2шт.

10

113-600

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

16шт.

11

131-1130

LOCK NUT,5/8"-11, GA

NUT - lock 5/8" NC hex

16шт.

12

T56744

BRACE - wing RH

1шт.

13

T56745

BRACE - wing LH

1шт.

14

T56427

U-BOLT

8шт.

15

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

16шт.

16

129-107

NUT,5/8"-11, G5

16шт.
