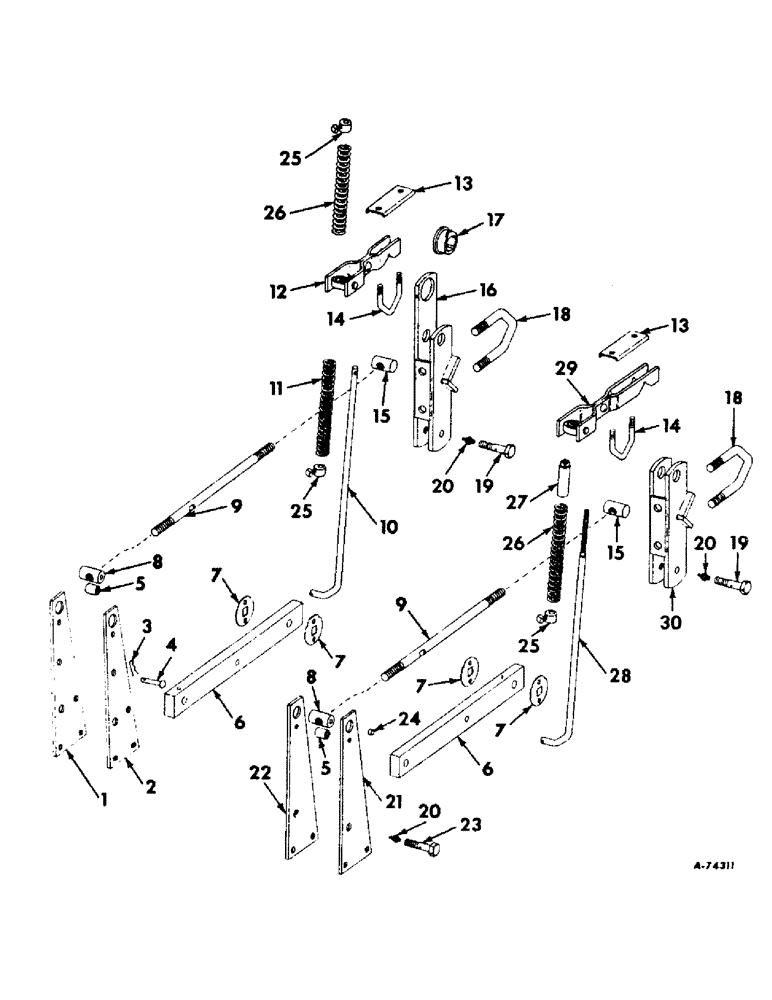

Запчасти Case IH 1269 (AL-05) - PARALLEL LINKAGE

1

523376R1

PLATE, tool bar attaching outer, not tapped

1шт.

2

523377R1

PLATE, tool bar attaching outer tapped

1шт.

523060R1

BOLT, 1/2 x 2-1/4 in. heat-treated crg

1шт.

18810R1

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 2

1/2 x 2-1/4 in. C-Z mach

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

3

520175R1

CLIP

PIN, quick-attachable cotter

1шт.

4

512654R1

PIN

transport

1шт.

5

522537R1

SPACER

tool bar attaching plates

1шт.

6

522523R1

LINK, lower parallel

1шт.

7

522532R1

RETAINER

WASHER, lower parallel

1шт.

8

522510R1

BAR

SWIVEL, upper parallel link rear RH

1шт.

19289R1

BOLT, 1/2 x 3/4 in. cd-pltd mach

1шт.

9

522506R2

TURNBUCKLE

ROD, upper parallel

1шт.

10

523052R1

ROD

outer lift

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

11

PO3A

SPRING

outer pressure rod cushion

1шт.

12

525667R91

ARM ASSY, short lift (63)

64шт.

104113

RIVET,But Hd, 3/8" x 1"

3/8 x 1 in. B-hd

1шт.

12

480199R1

ARM ASSY, shaort lift

64шт.

13

525687R1

CHANNEL

CLIP, lift arm

1шт.

14

523378R1

BOLT,U, 1/2" - 13 x 3 1/4"

U-BOLT

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

15

522509R1

BAR

SWIVEL, upper parallel link front LH thd

1шт.

16

SUPPORT ASSY, head bracket and rockshaft, discontinued for service

1шт.

16

SUPPORT ASSY, head bracket and rockshaft, discontinued for service

1шт.

17

523328R1

BEARING ASSY,2.8125" OD x 1"

rockshaft outer

1шт.

18

522498R1

BOLT,U, 3/4" - 10 x 6 5/16"

U-BOLT, head bracket

1шт.

280954

NUT,3/4"-10, G5

1шт.

467750R1

WASHER

25/32 x 1-1/2 in. x 11 ga C-Z

1шт.

19

522543R2

BOLT,Hex, 3/4" - 10 x 2 3/4"

lower parallel link front pivot

1шт.

426897

JAM NUT,Jam, 3/4"-10, G5

3/4 in. C-Z jam

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

20

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4 in. straight lubrication

1шт.

21

552521R1

PLATE, tool bar attaching, not tapped

1шт.

22

522520R1

PLATE, tool bar attaching, tapped

1шт.

23

522544R2

BOLT

lower parallel link rear pivot

1шт.

426897

JAM NUT,Jam, 3/4"-10, G5

3/4 in. C-Z jam

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

24

522591R1

PLUG

CUSHION, upper parallel link locking bolt

1шт.

25

516595R11

COLLAR,16.67mm ID x 28.5mm OD x 19mm L

COLLAR ASSY, lift rod set

1шт.

85-15010

SET SCREW,Sq Hd, 1/2"-13 x 5/8"

SCREW, 1/2 x 5/8 in. sq-hd cup-pt set

1шт.

26

518926R1

SPRING

pressure rod

1шт.

27

525721R11

SLEEVE ASSY, adjusting nut

1шт.

28

525710R1

ROD, inner lift

1шт.

13068R1

PIN,3/16" x 1"

Split (Cotter), 3/16" x 1"

1шт.

114505

JAM NUT,Jam, 1/2"-13, G5

1шт.

29

525666R91

ARM ASSY, long lift

1шт.

NLS

NO LONGER SERVICED

3/8 x 1 in. B-hd

1шт.

30

BRACKET ASSY, head, discontinued for service

1шт.
