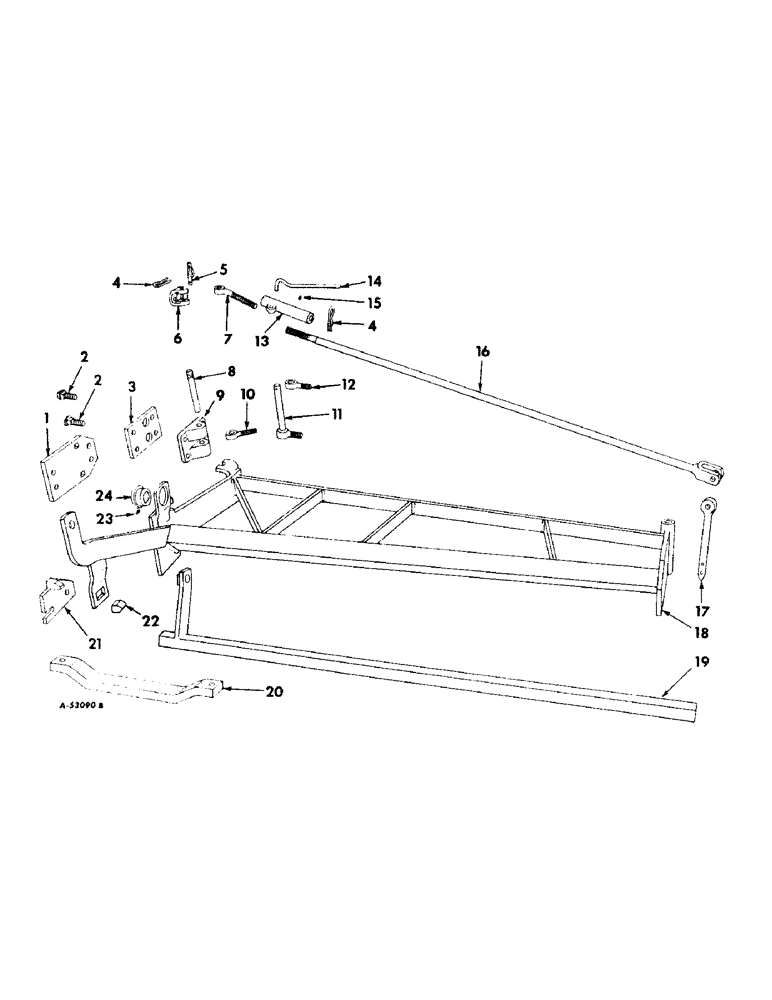

Запчасти Case IH 1269 (AL-03) - INNER FRAME

1

466836R2

PLATE, adapter center

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

4шт.

271560

PANEL,Hex, 5/8" - 11 x 1 3/4", Gr 5

4шт.

589068R1

WASHER

.656 x 1.250 x .090

2шт.

2

466837R1

BOLT, frame plate

1шт.

220081

NUT

3/4 in.

1шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

3

466835R1

PLATE, adapter front

1шт.

271564

BOLT,Hex, 5/8" - 11 x 2 1/2", Gr 5

5/8 x 2-1/2 pln type 5

4шт.

4

520175R1

CLIP

PIN, quick-attachable cotter

1шт.

5

525649R11

PIN, upper truss rod attaching

1шт.

6

525645R1

BRACKET

truss rod

1шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

2шт.

7

526907R1

END, truss rod upper, 1 in. dia

1шт.

7

525678R1

END, truss rod upper, 7/8 in. dia

1шт.

8

518267R2

PIN, frame hinge, heat-treated

1шт.

9

525644R1

BRACKET, hinge

1шт.

10

518952R1

BOLT

EYEBOLT, frame hinge

1шт.

425-1012

NUT,3/4"-10, G5

3/4 in.

1шт.

615168R1

WASHER

25/32 x 1-1/2 in. x 11 ga

1шт.

11

525648R1

PIN, frame attaching eye bolt, for Farmall 400 and 450 tractors

1шт.

20340R1

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

12

525646R1

EYEBOLT, frame attaching, for Farmall 400 and 450 tractors

1шт.

220081

NUT

3/4 in.

1шт.

615168R1

WASHER

25/32 x 1-1/2 in. x 11 ga

1шт.

13

518858R1

TURNBUCKLE, 7/8 in. dia truss rod

1шт.

13

526904R1

TURNBUCKLE

1 in. dia truss rod

1шт.

14

518887R1

HANDLE, truss rod turnbuckle

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

15

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4 in. straight lubrication

1шт.

16

526906R11

ROD, 1 in dia outer truss

1шт.

16

525677R11

ROD, 7/8 in. dia outer truss

1шт.

PO20130

AXLE PIN,3/4" x 2 1/8"

PIN, 3/4 x 2-1/4 in. dld-std-hd

1шт.

20340R1

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

17

523375R1

PIN, frame hinge

1шт.

137323

COTTER PIN,5/16" x 2 1/2"

Pin, Split (Cotter), 5/16" x 2 1/2"

1шт.

18

525685R91

FRAME, main left

1шт.

18

525686R91

FRAME, main right

1шт.

19

523559R92

ROCKSHAFT, lifting left

1шт.

19

523560R92

ROCKSHAFT, lifting right

1шт.

19

526899R91

ROCKSHAFT, lifting left, see note

1шт.

19

526900R91

ROCKSHAFT, lifting right, see note

1шт.

20

466841R1

BRACE, sill

1шт.

102637

NUT,1/2"-13, G5

2шт.

179889

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1/2 x 2 pln type 5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

21

466838R91

GUIDE, frame LH

1шт.

21

466839R91

GUIDE, frame RH

1шт.

27467R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 1 3/4", Gr 5

BOLT, 5/8 x 1-3/4 crg type 5

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

2шт.

589068R1

WASHER

21/32 x 1-1/4 in. x 11 ga

2шт.

22

518876R1

BLOCK

STUD, frame plate guide, for Farmall 400 and 450 tractors

1шт.

17421R1

BOLT (SPREADER)

BOLT, 7/16 x 7/8 in. mach

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

Q5208

WASHER, 15/32 x 1 in. x 11 ga

1шт.

23

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

FITTING, 3/16 in. drive type straight lubrication

1шт.

24

523327R1

BEARING, rockshaft inner

1шт.

137313

PIN,1/4" x 2 3/4"

Split (Cotter), 1/4" x 2 3/4"

1шт.

451798R2

WASHER

2-17/32 x 2-1/4 in. x 16 ga

1шт.
