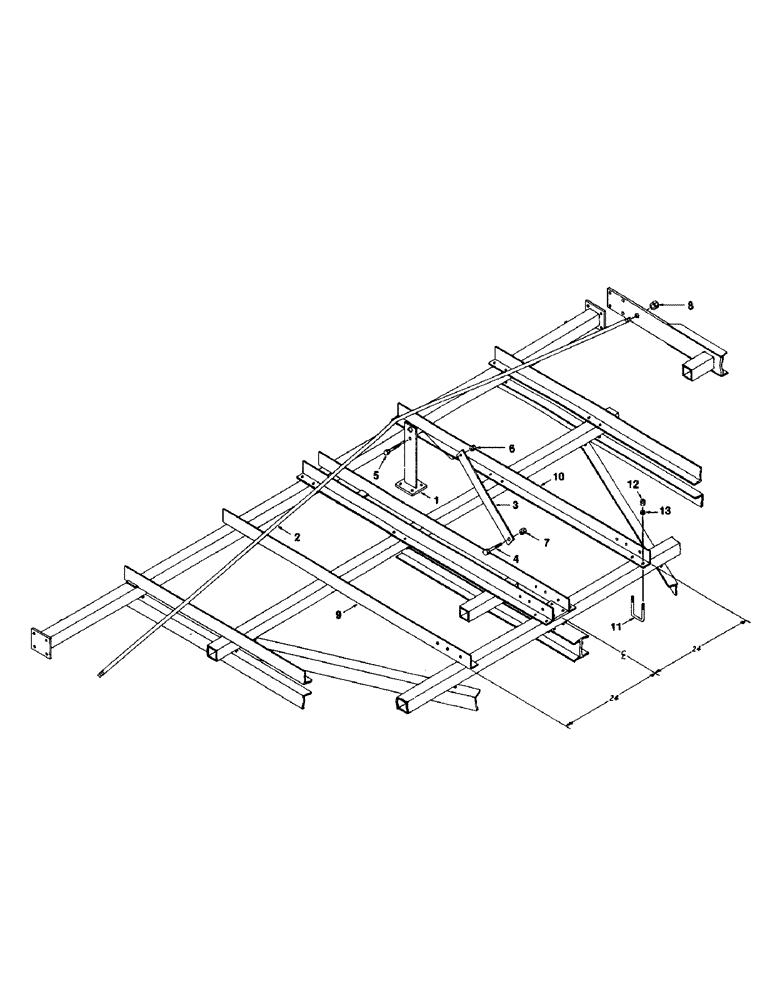

Запчасти Case IH 1200W-SERIES (014) - FRAME BRACING, TRUSS ROD, OLD STYLE

1

T52805

TRUSS ROD STAND - main

1шт.

2

T52833

TRUSS ROD 159" LG.

1шт.

3

T52834

STRAP

2шт.

4

113-626

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

1шт.

5

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

1шт.

6

131-1116

LOCK NUT,1/2"-13, GB

NUT, hx. top lock 1/2"

1шт.

7

230-41110

LOCK NUT,5/8"-11, GA

NUT, hx. lock 5/8"

1шт.

8

131-669

LOCK NUT,3/4"-10, GB

NUT, hx. top lock 3/4"

2шт.

9

T52835

MAIN FRAME CROSS ANGLE - R, brace kit, old style

1шт.

10

T52836

MAIN FRAME CROSS ANGLE - L, brace kit, old style

1шт.

11

T50871

U-BOLT

H.T. 1/2", frame brace kit, old style

6шт.

12

129-105

NUT,Hex, 1/2" - 13, Gr 5

Frame brace kit, old style 1/2"-13, G5

12шт.

13

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , Frame brace kit, old style 1/2"

12шт.
