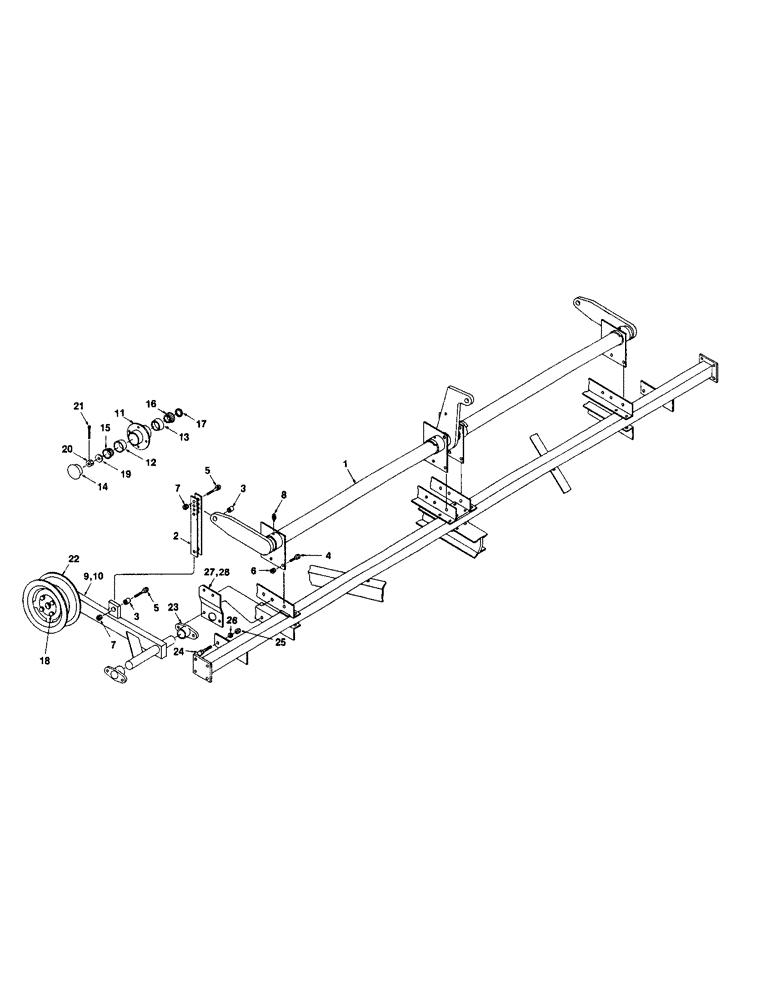

Запчасти Case IH 1200M-SERIES (012) - RAISING SHAFT AND AXLES, RAISING SHAFT, OLD STYLE

1

T52857

RAISING SHAFT

1шт.

2

T35684

LINK

4шт.

3

T28975

BUSHING

27/32" LG.

4шт.

4

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

12шт.

5

113-668

SCREW, H.H.C. 5/8" x 2" spec. thrd. Hex, 5/8"-11 x 2", G5

4шт.

6

131-1116

LOCK NUT,1/2"-13, GB

NUT, hx. top lock 1/2"

12шт.

7

230-41110

LOCK NUT,5/8"-11, GA

NUT, hx. top lock 5/8"

4шт.

8

219-22

LUBE NIPPLE,1/8" - 27 NPTF

ZERK 1/8"

4шт.

9

T52770

AXLE - R, old style

1шт.

10

T52772

AXLE - L, old style

1шт.

11

T26242

HUB

W/CUPS, axle R & L, old style

2шт.

12

B12410

BEARING, CUP,1.782" OD

CUP - outer, axle R & L, old style

2шт.

12

B12410

BEARING, CUP,1.782" OD

CUP - outer, axle R & L, old style

2шт.

12

B12410

BEARING, CUP,1.782" OD

CUP - outer, axle R & L, old style

2шт.

13

B12408

BEARING CUP,59.156 mm OD x 11.862 mm

CUP - inner, axle R & L, old style

2шт.

14

F63222

DUST CAP,53.98mm OD x 34.92mm W

HUB CAP, axle R & L, old style

2шт.

15

B12411

ROLLER BEARING,0.75" ID x 0.655"

- outer, axle R & L, old style

2шт.

16

B12409

BEARING, ROLLER,31.763 mm ID x 16.84 mm

ROLLER BEARING - inner, axle R & L, old style

2шт.

17

B13281

SEAL,38.1mm ID x 59.23mm OD x 10.31mm Thk

GREASE SEAL, axle R & L, old style

2шт.

18

A30064

BOLT

LUG BOLT 1/2", axle R & L, old style

8шт.

19

T28976

WASHER

SPECIAL 3/4" S.A.E., axle R & L, old style

2шт.

20

25-1912

SLOTTED NUT,3/4"-16, G5, Thk

NUT, hx. cast, 3/4", axle R & L, old style

2шт.

21

132-341

COTTER PIN,5/32" x 1 1/2"

axle R & L, old style 5/32" x 1 1/2"

2шт.

22

T53526

WHEEL

RIM 15" 4-HOLE, axle R & L, old style

2шт.

23

T55460

BEARING

MAIN AXLE BEARING, basic frame, old style

4шт.

24

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

Basic frame, old style Hex, 1/2"-13 x 1 3/4", G5

8шт.

25

131-1116

LOCK NUT,1/2"-13, GB

NUT, hx. top lock 1/2", basic frame, old style

8шт.

26

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , Basic frame, old style 1/2"

8шт.

27

T52847

PLATE - R, basic frame, old style

1шт.

28

T52848

PIPE

PLATE - L, basic frame, old style

1шт.
