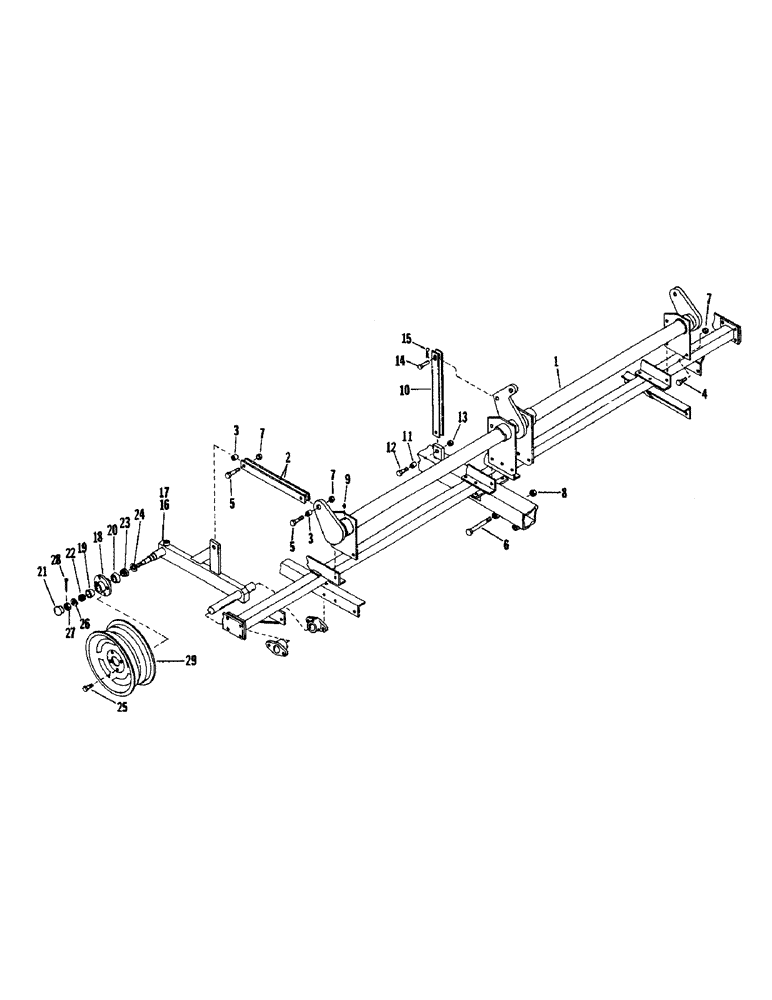

Запчасти Case IH 1200M-SERIES (010) - RAISING SHAFT AND AXLES, RAISING SHAFT, NEW STYLE
№
Артикул
Название
Примечание
Количество
1
T55561
RAISING SHAFT
1шт.
2
T55562
DEFLECTOR
LINK
4шт.
3
T28975
BUSHING
27/32" LG.
4шт.
4
113-606
BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd
8шт.
5
113-626
BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5
4шт.
6
113-737
BOLT,Hex, 3/4" - 10 x 6", Gr 5
3шт.
7
230-41110
LOCK NUT,5/8"-11, GA
NUT, hx. top lock 5/8"
12шт.
8
131-669
LOCK NUT,3/4"-10, GB
NUT, hx. top lock 3/4"
3шт.
9
219-22
LUBE NIPPLE,1/8" - 27 NPTF
GREASE ZERK 1/8"
4шт.
10
T52855
BAR
TRANSPORT BAR, pole, new style
2шт.
11
T28975
BUSHING
27/32" LG., pole, new style
1шт.
12
113-668
SCREW, H.H.C. 5/8" x 2" spec. thrd., pole, new style Hex, 5/8"-11 x 2", G5
1шт.
13
230-41110
LOCK NUT,5/8"-11, GA
NUT, hx. top lock 5/8", pole, new style
1шт.
14
T28984
CLEVIS PIN 5/8" x 2", pole, new style
1шт.
15
T28981
HAIRPIN COTTER 2-3/4" LG., pole, new style
1шт.
16
T52782
WING AXLE - R, new style
1шт.
17
T52783
WING AXLE - L, new style
1шт.
18
T26242
HUB
W/CUPS, wing axle R & L, new style
2шт.
19
B12410
BEARING, CUP,1.782" OD
CUP - outer, wing axle R & L, new style
2шт.
20
B12408
BEARING CUP,59.156 mm OD x 11.862 mm
CUP - inner, wing axle R & L, new style
2шт.
21
F63222
DUST CAP,53.98mm OD x 34.92mm W
HUB CAP, wing axle R & L, new style
2шт.
22
B12411
ROLLER BEARING,0.75" ID x 0.655"
- outer, wing axle R & L, new style
2шт.
23
B12409
BEARING, ROLLER,31.763 mm ID x 16.84 mm
ROLLER BEARING - inner, wing axle R & L, new style
2шт.
24
B13281
SEAL,38.1mm ID x 59.23mm OD x 10.31mm Thk
GREASE SEAL, wing axle R & L, new style
2шт.
25
A30064
BOLT
LUG BOLT 1/2", wing axle R & L, new style
8шт.
26
T28976
WASHER
special 3/4" S.A.E., wing axle R & L, new style
2шт.
27
25-1912
SLOTTED NUT,3/4"-16, G5, Thk
NUT, hx. cast 3/4", wing axle R & L, new style
2шт.
28
132-341
COTTER PIN,5/32" x 1 1/2"
wing axle R & L, new style 5/32" x 1 1/2"
2шт.
29
T53526
WHEEL
RIM 15" 4-HOLE, wing axle R & L, new style
2шт.
Выбрано товаров: 29
