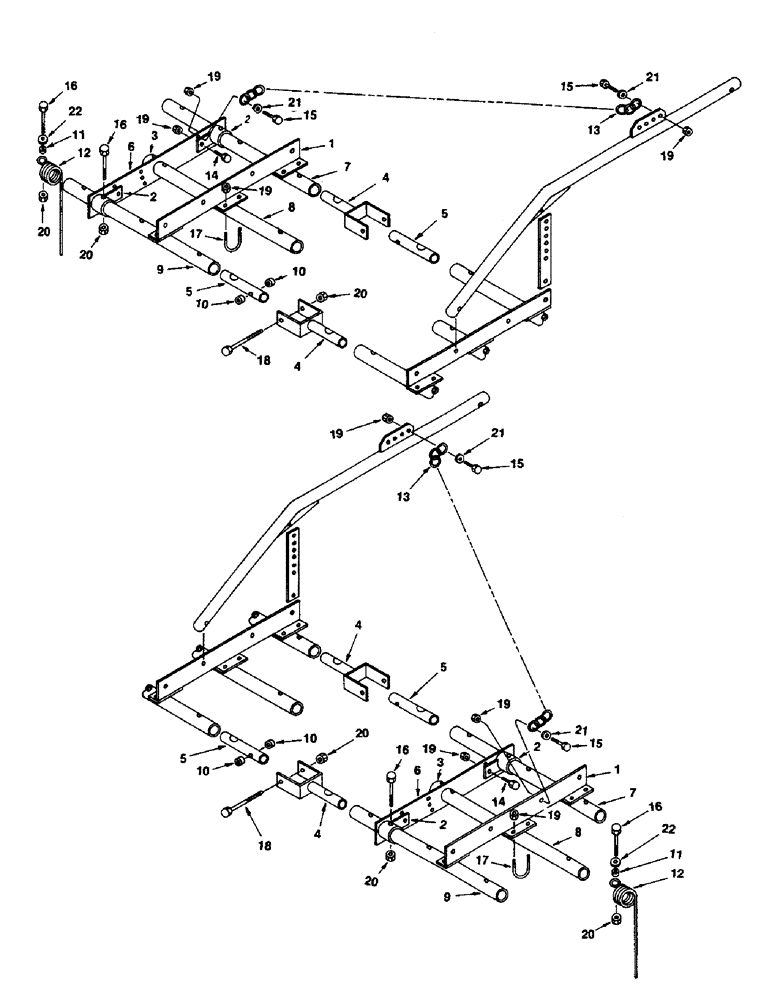

Запчасти Case IH 1200M-SERIES (102) - HARROW EXTENSION, 2 FOOT, RIGHT AND LEFT

1

T54978

CARRIER BRACKET

1шт.

2

T54980

ADJ. BRACKET - R

2шт.

3

T54981

ADJ. BRACKET - L

1шт.

4

T55846

HINGE OUTER

2шт.

5

T55850

HINGE TUBE 1.562" OD x 6" L

2шт.

6

T54982

ADJUSTING PLATE

1шт.

7

T55852

FRONT EXTENSION MEMBER

1шт.

8

T55851

CENTER EXTENSION MEMBER

1шт.

9

T55848

REAR EXTENSION MEMBER

1шт.

10

T55849

SPACER

4шт.

11

T54975

BUSHING 11/32" LG.

9шт.

12

T54976

TOOTH

HARROW TOOTH

9шт.

13

T55847

CHAIN

1шт.

14

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

SCREW, hx. hd. cap gr. 5 3/8 x 1"

3шт.

15

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

16

113-425

BOLT,Hex, 1/2" - 13 x 3", Gr 5

12шт.

17

T54979

U-BOLT

3/8"

3шт.

18

113-411

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

2шт.

19

113-1181

NUT, hx. center lock 3/8"

11шт.

20

131-1116

LOCK NUT,1/2"-13, GB

NUT, hx. toplock 1/2"

14шт.

21

195-104

WASHER,3/8"

FLAT WASHER 3/8"

2шт.

22

195-106

WASHER,1/2"

FLAT WASHER 1/2"

9шт.
