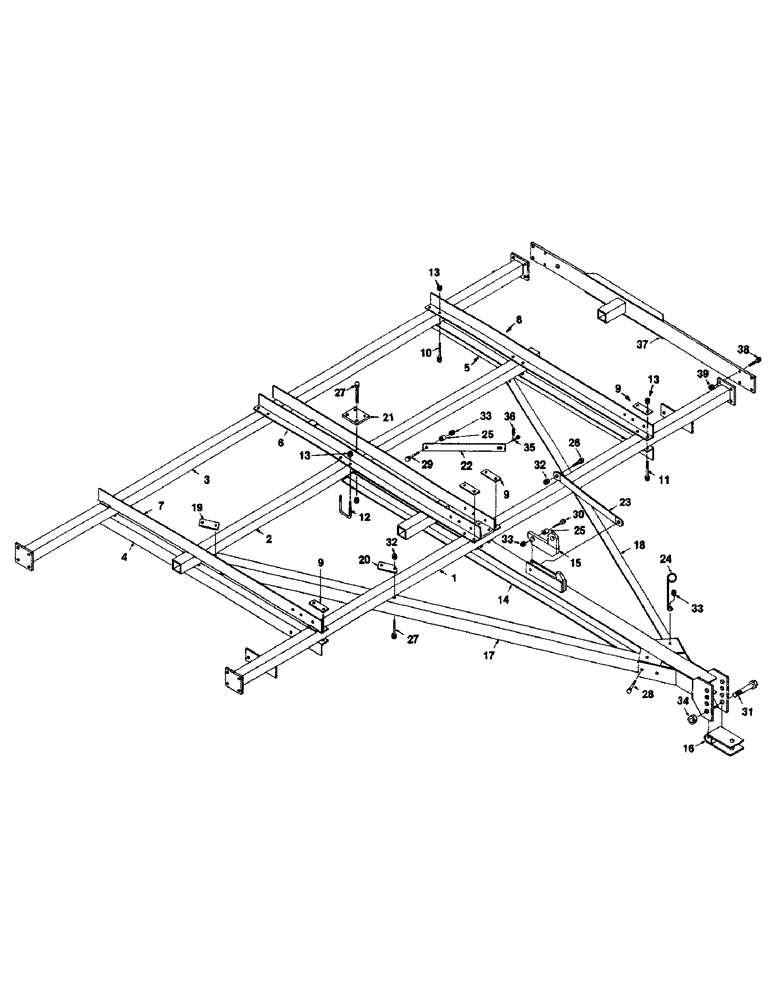

Запчасти Case IH 1200M-SERIES (008) - MAIN FRAME AND POLE, BASIC FRAME, OLD STYLE

1

T52841

FRONT FRAME MEMBER

1шт.

2

T52842

CENTER FRAME MEMBER

1шт.

3

T52843

MEMBER

REAR FRAME MEMBER

1шт.

4

T52844

ANGLE - R

1шт.

5

T52845

ANGLE

- L

1шт.

6

T52846

CENTER CROSS BRACE

1шт.

7

T52835

MAIN FRAME CROSS ANGEL - R

1шт.

8

T52836

MAIN FRAME CROSS ANGLE - L

1шт.

9

T28912

BRACKET

4шт.

10

113-447

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

8шт.

11

86505993

BOLT,Hex, 1/2" - 13 x 4", Gr 5

4шт.

12

T50871

U-BOLT

H.T. 1/2"

6шт.

13

131-1116

LOCK NUT,1/2"-13, GB

NUT, hx. top lock 1/2"

24шт.

14

T52849

POLE, old style

1шт.

15

T55738

LUG

CYLINDER LUG, pole, old style

1шт.

16

T52851

CLEVIS, pole, old style

1шт.

17

T52786

POLE BRACE - R, old style

1шт.

18

T52787

POLE BRACE - L, old style

1шт.

19

T52853

PLATE, pole, old style

2шт.

20

T52854

MOUNTING PLATE, pole, old style

2шт.

21

T28964

PLATE, pole, old style

1шт.

22

T52855

BAR

TRANSPORT BAR, pole, old style

2шт.

23

T52856

STRAP, pole, old style

2шт.

24

T35693

HOSE CARRIER, pole, old style

1шт.

25

T28975

BUSHING

27/32" LG., pole, old style

2шт.

26

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Pole, old style Hex, 1/2"-13 x 1 1/2", G5, Full Thd

2шт.

27

86505993

BOLT,Hex, 1/2" - 13 x 4", Gr 5

Pole, old style Hex, 1/2"-13 x 4", G5

16шт.

28

113-607

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

Pole, old style Hex, 5/8"-11 x 1 1/2", G5, Full Thd

6шт.

29

113-688

SCREW, H.H.C. 5/8" x 2" spec. thrd., pole, old style

1шт.

30

113-601

BOLT,Hex, 5/8" - 11 x 3", Gr 5

Pole, old style Hex, 5/8"-11 x 3", G5

1шт.

31

113-928

BOLT,Hex, 1" - 8 x 6", Gr 5

SCREW, H.H.C. 1" x 6" gr. 5, pole, old style

1шт.

32

113-1116

NUT, hx. top lock 1/2", pole, old style

18шт.

33

230-41110

LOCK NUT,5/8"-11, GA

NUT, hx. top lock 5/8", pole, old style

8шт.

34

131-163

LOCK NUT,1"-8, GA

NUT, hx. lock 1", pole, old style

1шт.

35

T28984

CLEVIS PIN 5/8" x 2", pole, old style

1шт.

36

T28981

HAIRPIN COTTER 2-3/4" LG., pole, old style

1шт.

37

T52887

END BAR, old style

2шт.

38

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

End bar, old style Hex, 1/2"-13 x 1 1/2", G5, Full Thd

16шт.

39

131-1116

LOCK NUT,1/2"-13, GB

NUT, hx. top lock 1/2", end bar, old style

16шт.

T52888

BLOCK CLEVIS (Not shown), end bar, old style

1шт.
