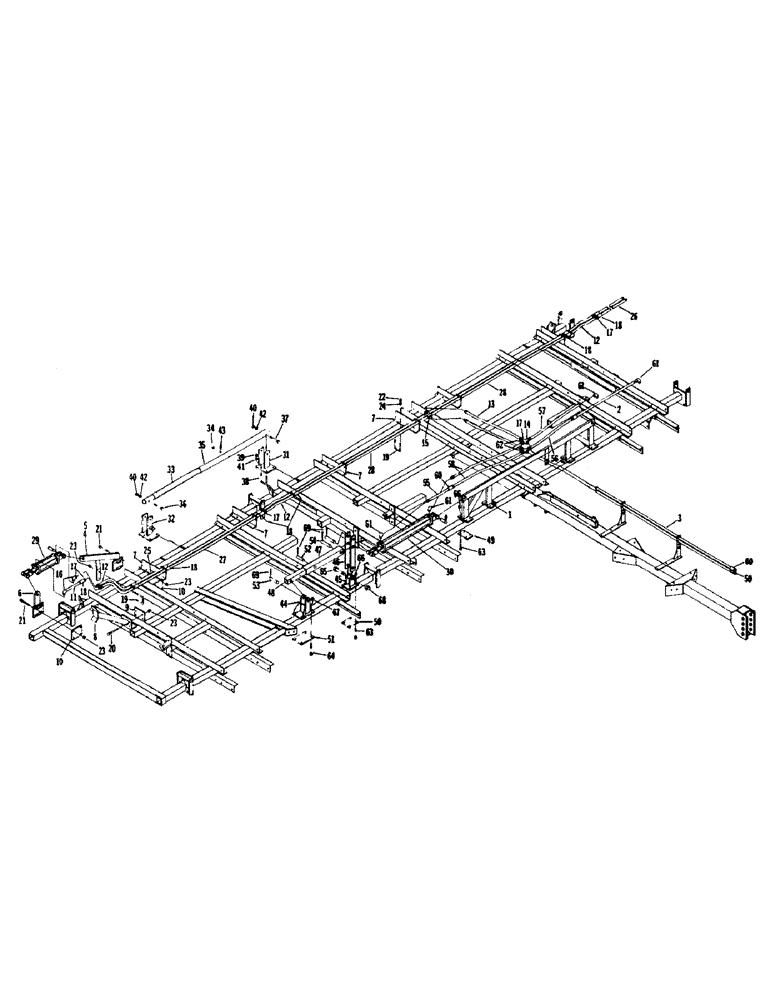

Запчасти Case IH 1200M-SERIES (074) - HYDRAULIC WING LIFT, CYLINDER MOUNT

1

T55210

CYLINDER MOUNT

1шт.

2

T52826

PIPE 1/2" x 33" LG.

1шт.

3

T55162

PIPE 1/2" x 71" LG.

2шт.

4

T55202

CYLINDER LUG - R, hydraulic wing lift

1шт.

5

T55203

CYLINDER LUG - L, hydraulic wing lift

1шт.

6

T55204

CYLINDER LUG, hydraulic wing lift

2шт.

7

T55205

PIPE BRACKET, hydraulic wing lift

8шт.

8

T55206

WING STOP, hydraulic wing lift

2шт.

9

T55207

PLATE, hydraulic wing lift

2шт.

10

T28897

EXTENSION MOUNTING BAR, hydraulic wing lift

4шт.

11

221-1202

PIPE 1/2" x 8" LG., hydraulic wing lift

2шт.

12

T28958

HOSE 1/2" x 23" LG., hydraulic wing lift

8шт.

13

T52759

HOSE 1/2" x 60" LG., hydraulic wing lift

2шт.

14

217-1203

4 WAY CONNECTION,Female, 1/2"-14

CROSS 1/2", hydraulic wing lift

2шт.

15

221-1424

TEE,Pipe, 1/2" NPT

1/2", hydraulic wing lift

2шт.

16

221-1414

ELBOW,90 Degree, 1/2"-14, NPT

ST. ELBOW 1/2", hydraulic wing lift

4шт.

17

221-1813

UNION 1/2", hydraulic wing lift

10шт.

18

221-1338

COUPLING,Pipe, 1/2" NPT

1/2", hydraulic wing lift

18шт.

19

T28940

U-BOLT

1/2", hydraulic wing lift

10шт.

20

113-447

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

Hydraulic wing lift Hex, 1/2"-13 x 3 1/2", G5

8шт.

21

86505993

BOLT,Hex, 1/2" - 13 x 4", Gr 5

Hydraulic wing lift Hex, 1/2"-13 x 4", G5

16шт.

22

129-105

NUT,Hex, 1/2" - 13, Gr 5

Hydraulic wing lift 1/2"-13, G5

16шт.

23

131-1116

LOCK NUT,1/2"-13, GB

NUT, hx. center lock 1/2", hydraulic wing lift

28шт.

24

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , Hydraulic wing lift 1/2"

16шт.

25

T28959

PIPE 1/2" x 15-1/2" LG., bundle

4шт.

26

T28922

PIPE 1/2" x 33" LG., bundle

2шт.

27

T55201

PIPE 1/2" x 50" LG., bundle

2шт.

28

T55162

PIPE 1/2" x 71" LG., bundle

4шт.

29

T54005

HYDRAULIC CYLINDER 3" x 8" D.A.

2шт.

30

T52827

HYDRAULIC CYLINDER 3" x 24" D.A.

2шт.

31

T52837

LUG, wing stop

2шт.

32

T52838

LUG, wing stop

2шт.

33

T52839

PIPE, wing stop

2шт.

34

T35425

CLEVIS PIN, wing stop

2шт.

35

T52840

PIPE, wing stop

2шт.

36

113-628

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

Hex, 5/8"-11 x 3 1/2", G5, Wing stop

2шт.

37

113-618

BOLT,Hex, 5/8" - 11 x 4", Gr 5

SCREW, H.H.C. 5/8" x 4", wing stop

2шт.

38

T50871

U-BOLT

H.T. 1/2", wing stop

8шт.

39

129-105

NUT,Hex, 1/2" - 13, Gr 5

Wing stop 1/2"-13, G5

16шт.

40

129-107

NUT,5/8"-11, G5

Wing stop 5/8"-11, G5

4шт.

41

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , Wing stop 1/2"

16шт.

42

192-25

LOCK WASHER,5/8"

WASHER, LOCK, , Wing stop 5/8"

4шт.

43

T28981

HAIRPIN COTTER 2-3/4" LG., wing stop

2шт.

44

T55194

LUG, hydraulic wing lift crate

2шт.

45

T55193

LUG, hydraulic wing lift crate

2шт.

46

T55195

STRAP, hydraulic wing lift crate

4шт.

47

T55196

TUBE - outer, hydraulic wing lift crate 2.5" OD x 20" L

2шт.

48

T55197

TUBE - inner, hydraulic wing lift crate 2" OD x 20" L

2шт.

49

T52821

BRACKET, hydraulic wing lift crate

4шт.

50

T28897

EXTENSION MOUNTING BAR, hydraulic wing lift crate

2шт.

51

T55209

PLATE, hydraulic wing lift crate

2шт.

52

T55198

PIN 3-1/2" LG., hydraulic wing lift crate

2шт.

53

T55199

PIN 4" LG., hydraulic wing lift crate

2шт.

54

T55200

PIN 4-1/2" LG., hydraulic wing lift crate

4шт.

55

T28959

CROSS PIPE 1/2" x 15-1/2" LG., hydraulic wing lift crate

1шт.

56

T28958

HOSE 1/2" x 23" LG., hydraulic wing lift crate

1шт.

57

T52823

HOSE 1/2" x 30" LG., hydraulic wing lift crate

1шт.

58

T52759

HOSE 1/2" x 60" LG., hydraulic wing lift crate

2шт.

59

T52988

FLOW RESTRICTOR VALVE, hydraulic wing lift crate

1шт.

60

221-1338

COUPLING,Pipe, 1/2" NPT

1/2", hydraulic wing lift crate

3шт.

61

221-1414

ELBOW,90 Degree, 1/2"-14, NPT

ST. ELBOW 1/2", hydraulic wing lift crate

4шт.

62

221-1813

UNION 1/2", hydraulic wing lift crate

4шт.

63

86505993

BOLT,Hex, 1/2" - 13 x 4", Gr 5

Hydraulic wing lift crate Hex, 1/2"-13 x 4", G5

24шт.

64

113-619

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

Hydraulic wing lift crate Hex, 5/8"-11 x 4 1/2", G5

8шт.

65

113-903

BOLT,Hex, 1" - 8 x 4-1/2", Gr 5

Hydraulic wing lift crate Hex, 1"-8 x 4 1/2", G5

2шт.

66

131-1116

LOCK NUT,1/2"-13, GB

NUT, hx. top lock 1/2", hydraulic wing lift crate

24шт.

67

230-41110

LOCK NUT,5/8"-11, GA

NUT, hx. top lock 5/8", hydraulic wing lift crate

8шт.

68

131-163

LOCK NUT,1"-8, GA

NUT, hx. center lock 1", hydraulic wing lift crate

2шт.

69

132-313

COTTER PIN,1/4" x 2"

PIN, Split (Cotter), , Hydraulic wing lift crate 1/4" x 2"

16шт.
