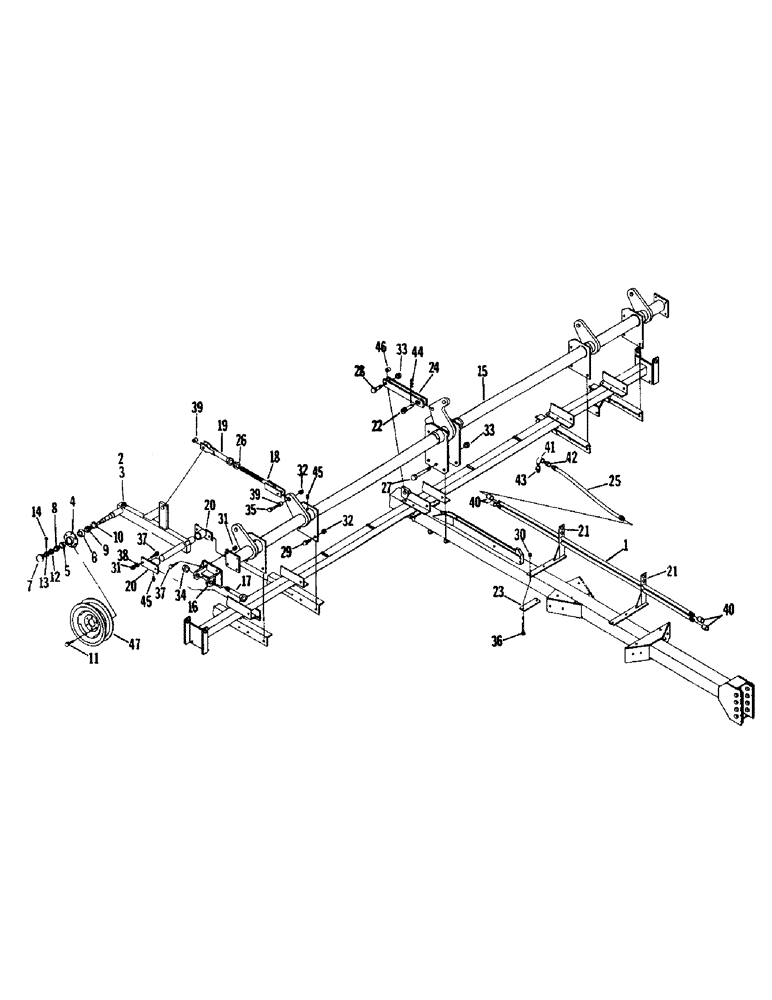

Запчасти Case IH 1200M-SERIES (068) - RAISING SHAFT AND AXLES, POLE

1

T37949

PIPE 1/2" x 40" LG.

2шт.

2

T55359

MAIN AXLE, left and right

1шт.

3

T55358

MAIN AXLE - Right and left

1шт.

4

T54088

HUB

W/CUPS, main axle R & L

2шт.

5

B12408

BEARING CUP,59.156 mm OD x 11.862 mm

CUP - outer, main axle R & L

2шт.

6

T54090

BEARING CUP,63 mm OD x 13.5 mm

CUP - inner, main axle R & L

2шт.

7

T23707

CAP

HUB CAP, main axle R & L

2шт.

8

B12409

BEARING, ROLLER,31.763 mm ID x 16.84 mm

ROLLER BEARING - outer, main axle R & L

2шт.

9

T54089

ROLLER BEARING,38 mm ID x 17.076 mm

- inner, main axle R & L

2шт.

10

T52904

SEAL

GREASE SEAL, main axle R & L

2шт.

11

T40045

WHEEL BOLT

LUG BOLT 1/2", main axle R & L

12шт.

12

195-50

WASHER,7/8" x 2" x .165"

SPECIAL, main axle R & L

2шт.

13

425-1914

SLOTTED NUT,7/8"-14, G5, Thk

NUT, SLOTTED, , Castle, Main axle R & L 7/8"-14, G5, Thk

2шт.

14

132-341

COTTER PIN,5/32" x 1 1/2"

main axle R & L 5/32" x 1 1/2"

2шт.

15

T55190

MAIN RAISING SHAFT

1шт.

16

T52800

YOKE - long, basic frame crate

2шт.

17

T52792

STUD BOLT, basic frame crate

2шт.

18

T52806

ROD

LIFT ROD, basic frame crate

4шт.

19

T52809

BRACKET

CONTROL BRACKET, basic frame crate

4шт.

20

T55460

BEARING

AXLE BEARING, basic frame crate

8шт.

21

T55143

PIPE BRACKET, basic frame crate

2шт.

22

T55172

CLEVIS PIN, basic frame crate

1шт.

23

T55144

BRACKET, basic frame crate

2шт.

24

T55211

TRANSPORT STRAP, basic frame crate

2шт.

25

T28958

HYDRAULIC HOSE 1/2" x 23" LG., basic frame crate

2шт.

26

129-150

NUT,Jam, 1"-8, G5

hx. jam 1", basic frame crate

4шт.

27

113-737

BOLT,Hex, 3/4" - 10 x 6", Gr 5

Basic frame crate Hex, 3/4"-10 x 6", G5

3шт.

28

113-705

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

SCREW, H.H.C. 3/4" x 2-1/2", basic frame crate

1шт.

29

113-606

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

Basic frame crate Hex, 5/8"-11 x 1 1/4", G5, Full Thd

14шт.

30

230-4216

LOCK NUT,3/8"-16, GA

NUT, hx. center lock 3/8", basic frame crate

4шт.

31

131-1116

LOCK NUT,1/2"-13, GB

NUT, hx. top lock 1/2", basic frame crate

24шт.

32

230-41110

LOCK NUT,5/8"-11, GA

NUT, hx. lock 5/8", basic frame crate

22шт.

33

131-669

LOCK NUT,3/4"-10, GB

NUT, hx. top lock 3/4", basic frame crate

4шт.

34

131-163

LOCK NUT,1"-8, GA

NUT, hx. lock 1", basic frame crate

2шт.

35

131-668

SCREW, H.H.C. 5/8" x 2" spec. thrd., basic frame crate

8шт.

36

113-253

BOLT,Hex, 3/8" - 16 x 5", Gr 5

Basic frame crate Hex, 3/8"-16 x 5", G5

4шт.

37

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

Basic frame crate Hex, 1/2"-13 x 1 3/4", G5

24шт.

38

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , Basic frame crate 1/2"

16шт.

39

T28975

BUSHING

27/32" LG., basic frame crate

8шт.

40

221-1338

COUPLING,Pipe, 1/2" NPT

1/2", basic frame crate

4шт.

41

221-1414

ELBOW,90 Degree, 1/2"-14, NPT

ST. ELBOW 1/2", basic frame crate

2шт.

42

221-1813

UNION 1/2", basic frame crate

2шт.

43

221-1093

REDUCER,Hex, 3/4" x 1/2" NPT

HEX. BUSHING 1/2" - 3/4", basic frame crate

2шт.

44

T28981

HAIRPIN COTTER 2-3/4" LG., basic frame crate

1шт.

45

219-22

LUBE NIPPLE,1/8" - 27 NPTF

ZERK 1/8", basic frame crate

14шт.

46

T55175

BUSHING 13/16" LG., basic frame crate

1шт.

47

T55356

RIM 15" 6-HOLE, basic frame crate

4шт.
