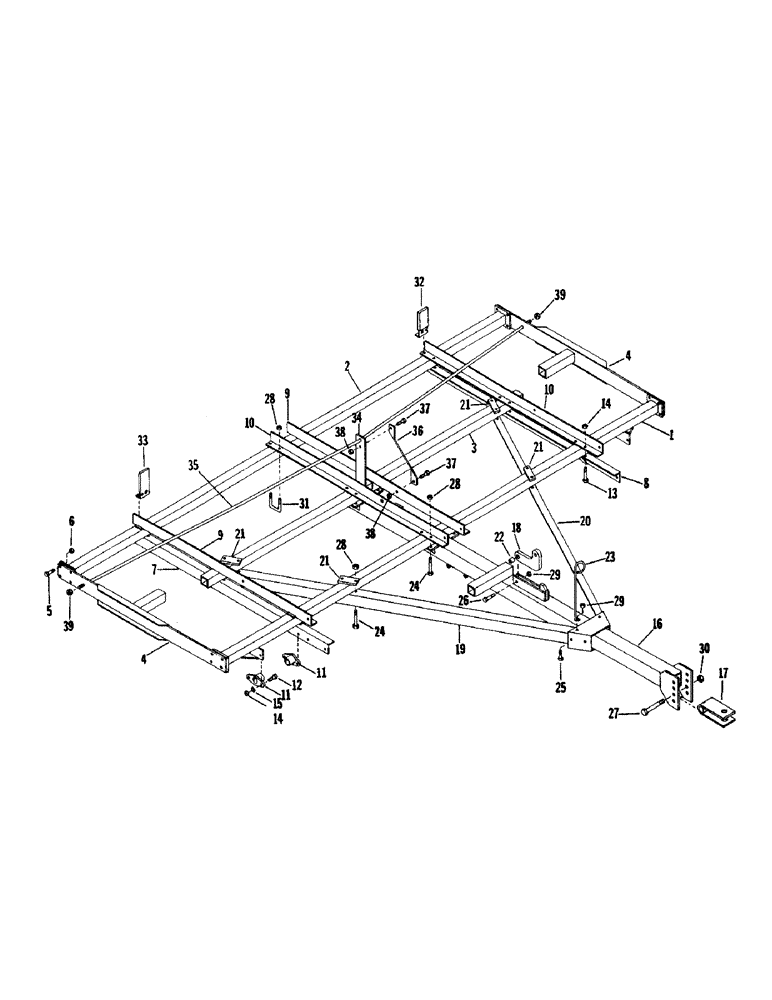

Запчасти Case IH 1200M-SERIES (006) - MAIN FRAME AND POLE, BASIC FRAME, NEW STYLE

1

T55556

FRONT FRAME MEMBER

1шт.

2

T52843

MEMBER

REAR FRAME MEMBER

1шт.

3

T55557

FRAME MEMBER

1шт.

4

T52881

BAR

END BAR, new style

2шт.

5

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

End bar, new style Hex, 1/2"-13 x 1 1/2", G5, Full Thd

16шт.

6

113-1116

NUT, hx. top lock 1/2", end bar, new style

16шт.

7

T55552

ANGLE LOWER - R, frame cross, new style

1шт.

8

T55553

ANGLE LOWER - L, frame cross, new style

1шт.

9

T55555

FRAME CROSS ANGLE UPPER - R - 60-1/4" lg., new style

2шт.

10

T55554

FRAME CROSS ANGLE UPPER - L - 60-1/4" lg., new style

2шт.

11

T55460

BEARING

AXLE BEARING, frame cross angle, new style

4шт.

12

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

Frame cross angle, new style Hex, 1/2"-13 x 1 3/4", G5

8шт.

13

113-447

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

Frame cross angle, new style Hex, 1/2"-13 x 3 1/2", G5

12шт.

14

131-1116

LOCK NUT,1/2"-13, GB

NUT, hx. top lock 1/2", frame cross angle, new style

20шт.

15

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , Frame cross angle, new style 1/2"

8шт.

16

T55558

POLE, new style

1шт.

17

T52851

CLEVIS, pole, new style

1шт.

18

T55738

LUG

CYLINDER LUG, pole, new style

1шт.

19

T55560

POLE BRACE - R 94" lg., new style

1шт.

20

T55559

POLE BRACE - L 94" lg., new style

1шт.

21

T52853

PLATE, pole, new style

4шт.

22

T28975

BUSHING

27/32" LG., pole, new style

1шт.

23

T52987

HOSE CARRIER, pole, new style

1шт.

24

86505993

BOLT,Hex, 1/2" - 13 x 4", Gr 5

Pole, new style Hex, 1/2"-13 x 4", G5

16шт.

25

113-607

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

Pole, new style Hex, 5/8"-11 x 1 1/2", G5, Full Thd

6шт.

26

113-626

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

Pole, new style Hex, 5/8"-11 x 2 1/2", G5

1шт.

27

113-928

BOLT,Hex, 1" - 8 x 6", Gr 5

SCREW, H.H.C. 1" x 6" gr. 5, pole, new style

1шт.

28

131-1116

LOCK NUT,1/2"-13, GB

NUT, hx. top lock 1/2", pole, new style

20шт.

29

230-41110

LOCK NUT,5/8"-11, GA

NUT, hx. top lock 5/8", pole, new style

7шт.

30

131-163

LOCK NUT,1"-8, GA

NUT, hx. lock 1", pole, new style

1шт.

31

T50871

U-BOLT

1/2" H.T., pole, new style

2шт.

32

T62687

REFLECTOR

BRACKET - front, warning, new style

1шт.

33

T60873

REFLECTOR BRACKET - rear, warning, new style

1шт.

34

T55563

TRUSS ROD STAND - main, new style

1шт.

35

T52833

TRUSS ROD 159" LG., new style

1шт.

36

T52813

BRACE, truss rod, new style

2шт.

37

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Truss rod, new style Hex, 1/2"-13 x 1 1/2", G5, Full Thd

3шт.

38

131-1116

LOCK NUT,1/2"-13, GB

NUT, hx. top lock 1/2", truss rod, new style

3шт.

39

131-669

LOCK NUT,3/4"-10, GB

NUT, hx. top lock 3/4", truss rod, new style

2шт.
