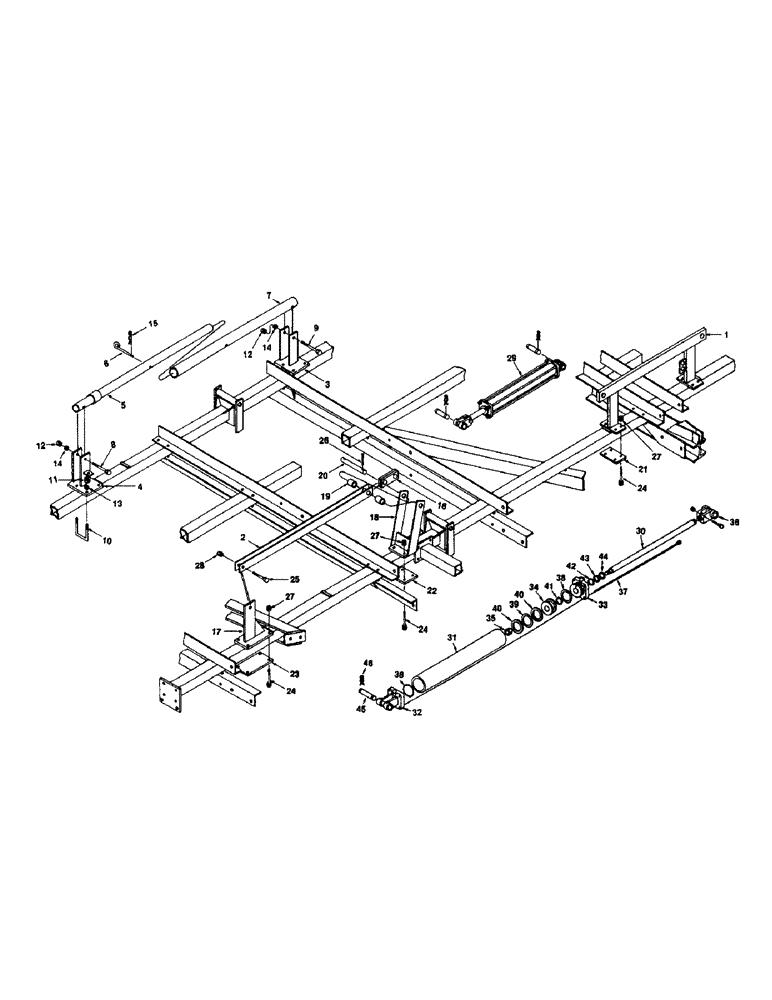

Запчасти Case IH 1200M-SERIES (058) - HYDRAULIC WING LIFT, CYLINDER MOUNT, NEW AND OLD STYLE

1

T52824

CYLINDER MOUNT

1шт.

2

T52825

BRACE

4шт.

3

T52837

LUG, wing stop, new & old style

2шт.

4

T52838

LUG, wing stop, new & old style

2шт.

5

T52839

PIPE, wing stop, new & old style

2шт.

6

T35425

CLEVIS PIN, wing stop, new & old style

2шт.

7

T52840

PIPE, wing stop, new & old style

2шт.

8

113-628

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

Hex, 5/8"-11 x 3 1/2", G5, Wing stop, new & old style

2шт.

9

113-618

BOLT,Hex, 5/8" - 11 x 4", Gr 5

SCREW, H.H.C. 5/8" x 4", wing stop, new & old style

2шт.

10

T50871

U-BOLT

H.T. 1/2", wing stop, new & old style

8шт.

11

129-105

NUT,Hex, 1/2" - 13, Gr 5

Wing stop, new & old style 1/2"-13, G5

16шт.

12

129-107

NUT,5/8"-11, G5

Wing stop, new & old style 5/8"-11, G5

4шт.

13

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , Wing stop, new & old style 1/2"

16шт.

14

192-25

LOCK WASHER,5/8"

WASHER, LOCK, , Wing stop, new & old style 5/8"

4шт.

15

T28981

HAIRPIN COTTER 2-3/4" LG., wing stop, new & old style

2шт.

16

T52816

CYLINDER LINK, hydraulic wing lift crate, new & old style

2шт.

17

T52817

BRACE LUG, hydraulic wing lift crate, new & old style

2шт.

18

T52818

LIFT ARM, hydraulic wing crate, new & old style

2шт.

19

T52819

SPACER 1-3/8" LG., hydraulic wing lift crate, new & old style

4шт.

20

T52820

PIN 6-1/2" LG., hydraulic wing lift crate, new & old style

2шт.

21

T52821

BRACKET, hydraulic wing lift crate, new & old style

2шт.

22

T28964

PLATE, hydraulic wing lift crate, new & old style

2шт.

23

T52822

EXTENSION BAR, hydraulic wing lift crate, new & old style

2шт.

24

86505993

BOLT,Hex, 1/2" - 13 x 4", Gr 5

Hydraulic wing lift crate, new & old style Hex, 1/2"-13 x 4", G5

24шт.

25

113-607

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

Hydraulic wing lift crate, new & old style Hex, 5/8"-11 x 1 1/2", G5, Full Thd

2шт.

26

132-313

COTTER PIN,1/4" x 2"

PIN, Split (Cotter), 1/4" x 2"

4шт.

27

131-1116

LOCK NUT,1/2"-13, GB

NUT, hx. top lock 1/2", hydraulic wing lift crate, new & old style

24шт.

28

131-1130

LOCK NUT,5/8"-11, GA

NUT, hx. lock 5/8", Hydraulic wing lift crate, new & old style

2шт.

29

T52827

HYDRAULIC CYLINDER 3" x 24" COMPLETE, new & old style

2шт.

30

T53060

ROD

PISTON ROD, hydraulic cylinder, new & old style

2шт.

31

T53061

TUBE, hydraulic cylinder, new & old style

2шт.

32

T53046

CAP

BUTT, hydraulic cylinder, new & old style

2шт.

33

T53047

END

GLAND, hydraulic cylinder, new & old style

2шт.

34

T53048

PISTON

hydraulic cylinder, new & old style

2шт.

35

131-1151

NUT, hx. lock 3/4", hydraulic cylinder, new & old style

2шт.

36

T53290

CLEVIS

hydraulic cylinder, new & old style

2шт.

37

T55582

TIE ROD, hydraulic cylinder, new & old style

8шт.

38

T53051

O-RING, hydraulic cylinder, new & old style

4шт.

Used in packing kit

1шт.

39

D38755

O-RING,0.21" Thk x 2.6" ID, -334, Cl 5, 75 Duro

hydraulic cylinder, new & old style

2шт.

Used in packing kit

1шт.

40

H754614

WASHER

BU-WASHER, hydraulic cylinder, new & old style

4шт.

Used in packing kit

1шт.

41

D32114

O-RING,0.75" ID x 0.875" OD

hydraulic cylinder, new & old style

2шт.

Used in packing kit

1шт.

42

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

hydraulic cylinder, new & old style

2шт.

Used in packing kit

1шт.

43

A23553

RING

BU-WASHER, hydraulic cylinder, new & old style

2шт.

Used in packing kit

1шт.

44

T53057

WIPER SEAL

WIPER, hydraulic cylinder, new & old style

2шт.

Used in packing kit

1шт.

45

T53058

PIN

CLEVIS PIN, hydraulic cylinder, new & old style

4шт.

46

T52926

CLIP

HAIRPIN CLIP, hydraulic cylinder, new & old style

8шт.

--

T63126

SEAL KIT

PACKING KIT PMC-7100, hydraulic cylinder, new & old style

1шт.
