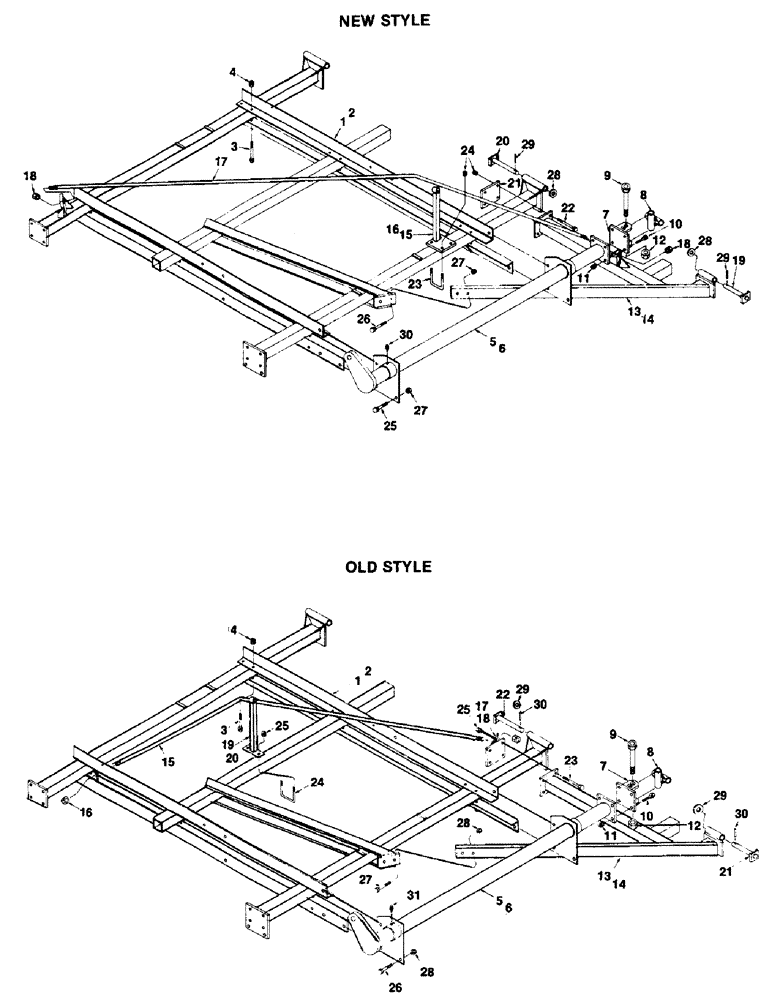

Запчасти Case IH 1200M-SERIES (052) - WING FRAME AND RAISING SHAFT, WING FRAME, NEW STYLE, RIGHT AND LEFT
№
Артикул
Название
Примечание
Количество
1
T55215
WING FRAME - R
1шт.
2
T55216
WING FRAME - L
1шт.
3
113-447
BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5
24шт.
4
131-1182
LOCK NUT,1/2"-13, GA
NUT, hx. center lock 1/2"
24шт.
1
T52776
WING FRAME - R, old style
1шт.
2
T52778
WING FRAME - L, old style
1шт.
3
113-447
BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5
Wing frame R & L, old style Hex, 1/2"-13 x 3 1/2", G5
24шт.
4
131-1182
LOCK NUT,1/2"-13, GA
NUT, hx. center lock 1/2", wing frame R & L, old style
24шт.
5
T52789
WING RAISING SHAFT - R, new & old style
1шт.
6
T52793
WING RAISING SHAFT - L, new & old style
1шт.
6
T52793
WING RAISING SHAFT - L, new & old style
1шт.
7
T52790
YOKE - short, wing raising shaft, new & old style R & L
2шт.
8
T55459
KNUCKLE
wing raising shaft, new & old style R & L
2шт.
9
T52792
STUD BOLT, wing raising shaft, new & old style R & L
2шт.
10
113-412
BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5
Wing raising shaft, new & old style R & L Hex, 1/2"-13 x 1 3/4", G5
8шт.
11
131-1116
LOCK NUT,1/2"-13, GB
NUT, hx. top lock 1/2", wing raising shaft, new & old style R & L
8шт.
12
131-163
LOCK NUT,1"-8, GA
NUT, hx. lock 1", wing raising shaft, new & old style R & L
2шт.
13
T55182
BRACE
WING HITCH BRACE - R, new style
1шт.
14
T55183
BRACE
WING HITCH BRACE - L, new style
1шт.
13
T52794
BRACE
WING HITCH BRACE - R, old style
1шт.
14
T52795
BRACE
WING HITCH BRACE - L, old style
1шт.
15
T55169
TRUSS ROD STAND - R, new style
1шт.
16
T55170
TRUSS ROD STAND - L, new style
1шт.
17
T55214
TRUSS ROD 113-1/2" LG., new style
2шт.
18
131-669
LOCK NUT,3/4"-10, GB
NUT, H.H.C. top lock 3/4", truss rod, new style
4шт.
15
T52799
TRUSS ROD 87-1/2" LG., old style
2шт.
16
131-669
LOCK NUT,3/4"-10, GB
NUT, hx. top lock 3/4", truss rod, old style
4шт.
19
T54009
PIN
HINGE PIN, basic frame crate, new style
2шт.
20
T54010
PIN
HINGE PIN, basic frame crate, new style
4шт.
21
T28897
EXTENSION MOUNTING BAR, basic frame crate, new style
2шт.
22
86505993
BOLT,Hex, 1/2" - 13 x 4", Gr 5
Basic frame crate, new style Hex, 1/2"-13 x 4", G5
8шт.
23
T50871
U-BOLT
H.T. 1/2", basic frame crate, new style
4шт.
24
131-1116
LOCK NUT,1/2"-13, GB
NUT, hx. top lock 1/2", basic frame crate, new style
16шт.
25
113-606
BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd
Basic frame crate, new style Hex, 5/8"-11 x 1 1/4", G5, Full Thd
12шт.
26
113-668
SCREW, H.H.C. 5/8" x 2" spec. thrd., basic frame crate, new style Hex, 5/8"-11 x 2", G5
4шт.
27
230-41110
LOCK NUT,5/8"-11, GA
NUT, hx. lock 5/8", basic frame crate, new style
16шт.
28
195-553
WASHER,1", SAE
1" S.A.E., basic frame crate, new style
6шт.
29
135-361
GROOVED PIN,1/4" x 2", Type F
Pin, Grooved, , basic frame crate, new style 1/4" x 2", Type F
6шт.
30
219-22
LUBE NIPPLE,1/8" - 27 NPTF
GREASE ZERK 1/8", basic frame crate, new style
4шт.
17
T52801
TRUSS ROD LUG - R, basic frame crate, old style
1шт.
18
T52802
TRUSS ROD LUG - L, basic frame crate, old style
1шт.
19
T52803
TRUSS ROD STAND - R, basic frame crate, old style
1шт.
20
T52804
TRUSS ROD STAND - L, basic frame crate, old style
1шт.
21
T54009
PIN
HINGE PIN, basic frame crate, old style
2шт.
22
T54010
PIN
HINGE PIN, basic frame crate, old style
4шт.
23
86505993
BOLT,Hex, 1/2" - 13 x 4", Gr 5
Basic frame crate, old style Hex, 1/2"-13 x 4", G5
8шт.
24
T50871
U-BOLT
H.T. 1/2", basic frame crate, old style
2шт.
25
131-1116
LOCK NUT,1/2"-13, GB
NUT, hx. top lock 1/2", basic frame crate, old style
12шт.
26
113-606
BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd
Basic frame crate, old style Hex, 5/8"-11 x 1 1/4", G5, Full Thd
12шт.
27
113-668
SCREW, H.H.C. 5/8" x 2" spec. thrd., basic frame crate, old style Hex, 5/8"-11 x 2", G5
4шт.
28
230-41110
LOCK NUT,5/8"-11, GA
NUT, hx. lock 5/8", basic frame crate, old style
16шт.
29
195-553
WASHER,1", SAE
1" S.A.E., basic frame crate, old style
6шт.
30
135-361
GROOVED PIN,1/4" x 2", Type F
Pin, Grooved, , basic frame crate, old style 1/4" x 2", Type F
6шт.
31
219-22
LUBE NIPPLE,1/8" - 27 NPTF
GREASE ZERK 1/8", basic frame crate, old style
4шт.
Выбрано товаров: 54
