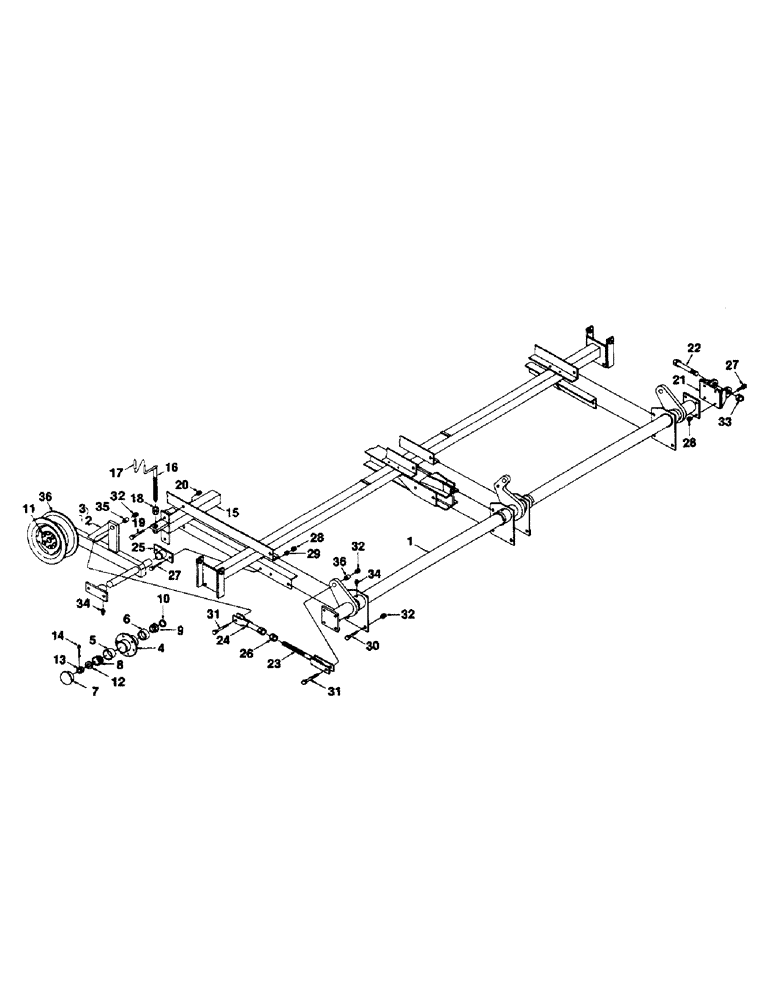

Запчасти Case IH 1200M-SERIES (050) - RAISING SHAFT AND AXLES, MAIN RAISING SHAFT, NEW AND OLD STYLE

1

T52788

MAIN RAISING SHAFT

1шт.

2

T55358

MAIN AXLE - R

1шт.

3

T55359

MAN AXLE - L

1шт.

4

T54088

HUB

W/CUPS

2шт.

5

B12408

BEARING CUP,59.156 mm OD x 11.862 mm

CUP - outer

2шт.

6

T54090

BEARING CUP,63 mm OD x 13.5 mm

CUP - inner

2шт.

7

T23707

CAP

HUB CAP

2шт.

8

B12409

BEARING, ROLLER,31.763 mm ID x 16.84 mm

ROLLER BEARING - outer

2шт.

9

T54089

ROLLER BEARING,38 mm ID x 17.076 mm

- inner

2шт.

10

T52904

SEAL

GREASE SEAL

2шт.

11

T40045

WHEEL BOLT

LUG BOLT 1/2"

12шт.

12

195-50

WASHER,7/8" x 2" x .165"

- special

2шт.

13

425-1914

SLOTTED NUT,7/8"-14, G5, Thk

NUT, SLOTTED, , Castle 7/8"-14, G5, Thk

2шт.

14

132-341

COTTER PIN,5/32" x 1 1/2"

5/32" x 1 1/2"

2шт.

2

T54091

AXLE

MAIN AXLE - R, main axle - old style r &l The following parts are for axles purchased after Jan. 1, 1975

1шт.

2

T54091

AXLE

MAIN AXLE - R, main axle - old style r & l The following parts are for axles purchased after Jan. 1, 1975

1шт.

3

T54087

AXLE

MAIN AXLE - L, main axle - old style r & l The following parts are for axles purchased after Jan. 1, 1975

1шт.

4

T54088

HUB

W/CUPS, main axle - old style r & l The following parts are for axles purchased after Jan. 1, 1975

2шт.

5

B12408

BEARING CUP,59.156 mm OD x 11.862 mm

CUP - outer, main axle - old style r &l The following parts are for axles purchased after Jan. 1, 1975

2шт.

6

T54090

BEARING CUP,63 mm OD x 13.5 mm

CUP - inner, main axle -old style r &l The following parts are for axles purchased after Jan. 1, 1975

2шт.

7

T23707

CAP

HUB CAP, mainaxle - old style r &l The following parts are for axles purchased after Jan. 1, 1975

2шт.

8

B12409

BEARING, ROLLER,31.763 mm ID x 16.84 mm

ROLLER BEARING - outer, main axle - old style r &l The following parts are for axles purchased after Jan. 1, 1975

2шт.

9

T54089

ROLLER BEARING,38 mm ID x 17.076 mm

- inner, main axle - old style r &l The following parts are for axles purchased after Jan.1, 1975

2шт.

10

T52904

SEAL

GREASE SEAL, main axle - old style r & l The following parts are for axles purchased after Jan. 1, 1975

2шт.

11

T40045

WHEEL BOLT

LUG BOLT 1/2", main axle - old style r &l The following parts are for axles purchased after Jan. 1, 1975

12шт.

12

195-50

WASHER,7/8" x 2" x .165"

- special, main axle - old style r & l The following parts are for axles purchased after Jan. 1, 1975

2шт.

13

425-1914

SLOTTED NUT,7/8"-14, G5, Thk

NUT, SLOTTED, , Castle, Main axle - old style R & L, The following parts are for axles purchased after Jan. 1, 1975 7/8"-14, G5, Thk

2шт.

14

132-341

COTTER PIN,5/32" x 1 1/2"

main axle - old style r & l - The following parts are for axles purchased after Jan. 1, 1975 5/32" x 1 1/2"

2шт.

2

T52779

AXLE

MAIN AXLE - R, the following parts are for axles purchased prior to Jan. 1, 1975

1шт.

3

T52781

AXLE

MAIN AXLE - L,, the following parts are for axles purchased prior to Jan.1, 1975

1шт.

4

T52902

HUB

W/CUPS, the following parts are for axles purchased prior to Jan. 1, 1975

2шт.

5

B12408

BEARING CUP,59.156 mm OD x 11.862 mm

CUP - outer, the following parts are for axles purchased prior to Jan. 1, 1975

2шт.

6

H751370

BEARING CUP

CUP - inner, the following parts are for axles purchased prior to Jan. 1, 1975

2шт.

7

T23707

CAP

HUB CAP, the following parts are for axles purchased prior to Jan. 1, 1975

2шт.

8

B12409

BEARING, ROLLER,31.763 mm ID x 16.84 mm

ROLLER BEARING - outer, the following parts are for axles purchased prior to Jan. 1, 1975

2шт.

9

H747758

TAPERED BEARING,38.1 mm ID x 18.034 mm

ROLLER BEARING - inner, the following parts are for axles purchased prior to Jan. 1, 1975

2шт.

10

T52904

SEAL

GREASE SEAL, the following parts are for axles purchased prior to Jan. 1, 1975

2шт.

11

T40045

WHEEL BOLT

LUG BOLT 1/2", the following parts are for axles purchased prior to Jan. 1, 1975

12шт.

12

195-50

WASHER,7/8" x 2" x .165"

- special, the following parts are for axles purchased prior to Jan. 1, 1975

2шт.

13

425-1914

SLOTTED NUT,7/8"-14, G5, Thk

NUT, SLOTTED, , Castle, The following parts are for axles purchased prior to Jan. 1, 1975 7/8"-14, G5, Thk

2шт.

14

132-341

COTTER PIN,5/32" x 1 1/2"

the following parts are for axles purchased prior to Jan. 1, 1975 5/32" x 1 1/2"

2шт.

15

T52831

AXLE STOP, dept control - new & old style

2шт.

16

T52832

CRANK

depth control - new & old style

2шт.

17

T55173

VINYL PLASTIC CAP, depth control - new & old style

2шт.

18

129-146

NUT,Jam, 9/16"-12, G5

hx. jam 7/8", depth control - new & old style

2шт.

19

113-607

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

Depth control - new & old style Hex, 5/8"-11 x 1 1/2", G5, Full Thd

4шт.

20

230-41110

LOCK NUT,5/8"-11, GA

NUT, hx. lock 5/8", depth control -new & old style

4шт.

21

T52800

YOKE - long, basic frame crate - new & old style

2шт.

22

T52792

STUD BOLT, basic frame crate - new & old style

2шт.

23

T52806

ROD

LIFT ROD, basic frame crate & new & old style

2шт.

24

T52809

BRACKET

CONTROL BRACKET, basic frame crate 0 new & old style

2шт.

25

T55460

BEARING

AXLE BEARING, basic frame crate - new & old style

4шт.

26

129-150

NUT,Jam, 1"-8, G5

hx. jam 1", basic frame crate - new & old style

2шт.

27

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

Basic frame crate, new & old style Hex, 1/2"-13 x 1 3/4", G5

16шт.

28

131-1116

LOCK NUT,1/2"-13, GB

NUT, hx. top lock 1/2", basic frame crate - new & old style

16шт.

29

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , Basic frame crate, new & old style 1/2"

8шт.

30

113-606

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

Basic frame crate, new & old style Hex, 5/8"-11 x 1 1/4", G5, Full Thd

12шт.

31

113-668

SCREW, H.H.C. 5/8" x 2" spec. thrd., basic frame crate - new & old style Hex, 5/8"-11 x 2", G5

4шт.

32

230-41110

LOCK NUT,5/8"-11, GA

NUT, hx. lock 5/8", basic frame crate - new & old style

16шт.

33

131-163

LOCK NUT,1"-8, GA

NUT, hx. lock, basic frame crate - new & old style

1шт.

34

219-22

LUBE NIPPLE,1/8" - 27 NPTF

GREASE ZERK 1/8", basic frame crate - new & old style

8шт.

35

T28975

BUSHING

27/32" LG., basic frame crate - new & old style

4шт.

36

T53671

RIM 15" 6-HOLE NEW & OLD STYLE, basic frame crate - new & old style

2шт.
