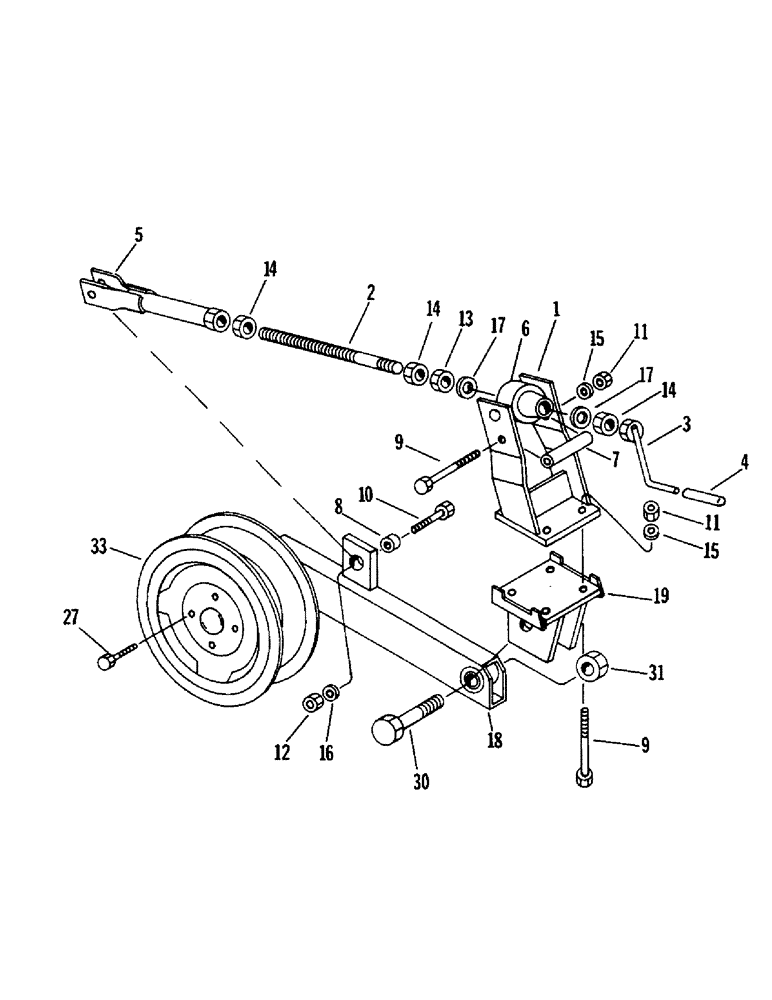

Запчасти Case IH 1200M-SERIES (036) - OUTRIGGER GAUGE WHEELS, GAUGE WHEEL, RIGHT AND LEFT, NEW STYLE

1

T55769

GAUGE WHEEL BRACKET

1шт.

2

T30656

ROD

CONTROL ROD 10-1/2" LG.

1шт.

3

T30657

HANDLE

1шт.

4

T55173

VINYL PLASTIC CAP

1шт.

5

T30658

CONTROL BRACKET

1шт.

6

T1948

SWIVEL

1шт.

7

T30659

SLEEVE 3" LG.

1шт.

8

T28975

BUSHING

27/32" LG.

1шт.

9

113-411

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

5шт.

10

113-604

BOLT,Hex, 5/8" - 11 x 2", Gr 5

1шт.

11

129-105

NUT,Hex, 1/2" - 13, Gr 5

5шт.

12

129-107

NUT,5/8"-11, G5

1шт.

13

129-108

NUT,3/4"-10, G5

1шт.

14

129-148

JAM NUT,Jam, 3/4"-10, G5

hx. jam 3/4"

3шт.

15

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

5шт.

16

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

17

195-109

WASHER,3/4"

S.A.E. 3/4"

2шт.

18

T53018

AXLE - R

1шт.

-

T53022

AXLE - L

1шт.

19

T55770

MOUNTING BRACKET - lower

1шт.

20

T26242

HUB

W/CUPS

1шт.

21

B12410

BEARING, CUP,1.782" OD

CUP - outer

1шт.

22

B12408

BEARING CUP,59.156 mm OD x 11.862 mm

CUP - inner

1шт.

23

F63222

DUST CAP,53.98mm OD x 34.92mm W

HUB CAP

1шт.

24

B12411

ROLLER BEARING,0.75" ID x 0.655"

- outer

1шт.

25

B12409

BEARING, ROLLER,31.763 mm ID x 16.84 mm

ROLLER BEARING - inner

1шт.

26

B13281

SEAL,38.1mm ID x 59.23mm OD x 10.31mm Thk

GREASE SEAL

1шт.

27

A30064

BOLT

LUG BOLT

4шт.

28

T28976

WASHER

special 3/4"

1шт.

29

86632554

SLOTTED NUT,3/4"-16, G5

NUT, castellated 3/4"

1шт.

30

113-818

BOLT,Hex, 7/8" - 9 x 3-1/2", Gr 5

SCREW, H.H.C. 7/8" x 3-1/2"

1шт.

31

131-697

NUT, hx. lock 7/8"

1шт.

32

132-341

COTTER PIN,5/32" x 1 1/2"

5/32" x 1 1/2"

1шт.

33

T53526

WHEEL

RIM 15 4-HOLE

1шт.
