(034) - WING HINGE, WING HINGE ASSEMBLY, NEW AND OLD STYLE

Запчасти Case IH 1200M-SERIES (034) - WING HINGE, WING HINGE ASSEMBLY, NEW AND OLD STYLE

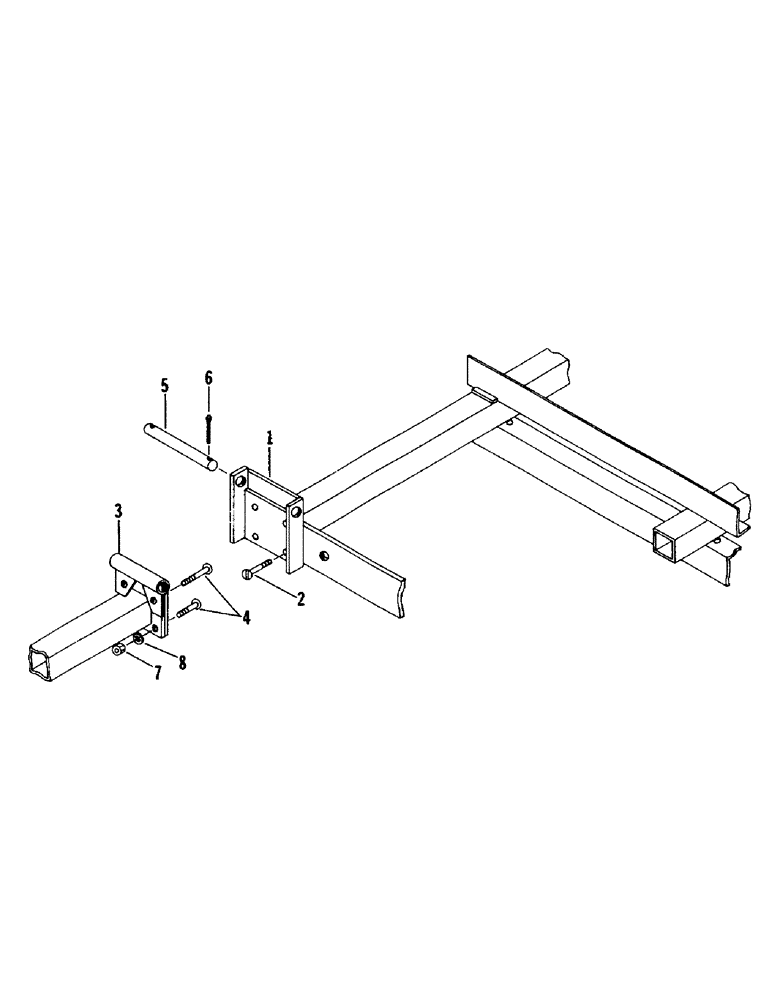

Схема запчастей Case IH 1200M-SERIES - (034) - WING HINGE, WING HINGE ASSEMBLY, NEW AND OLD STYLE
6
8
4
3
5
1
2
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

T28943

OUTER HINGE

4шт.

2

66-832

SCREW, F.H.C. 1/2" x 2"

16шт.

3

T28944

INNER HINGE

4шт.

4

66-828

SCREW, F.H.C. 1/2" x 1-3/4"

16шт.

5

T28945

PIVOT PIN 1" x 8"

4шт.

6

132-313

COTTER PIN,1/4" x 2"

PIN, Split (Cotter), 1/4" x 2"

8шт.

7

129-105

NUT,Hex, 1/2" - 13, Gr 5

32шт.

8

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

32шт.
