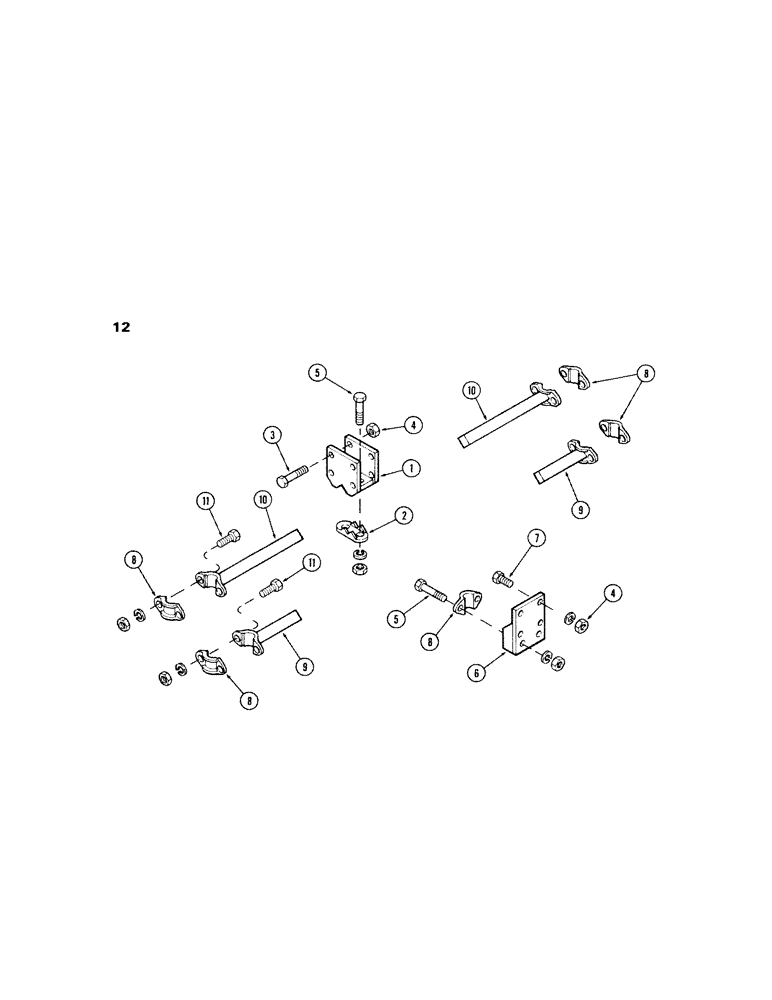

Запчасти Case IH 100-SERIES (12) - BEAM CLAMP, REAR SHANK MOUNT & EXTENSIONS, PRIOR TO SN 1605900

1

T51856

CLAMP - beam

1шт.

2

T27060

CLEAT - "V" clamp

1шт.

3

113-447

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

1шт.

4

131-1100

LOCK NUT,1/2"-13, GA

NUT, LOCK, 1/2"-13, GA

1шт.

5

113-628

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

Hex, 5/8"-11 x 3 1/2", G5

1шт.

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

129-107

NUT,5/8"-11, G5

1шт.

6

T51857

MOUNT - shank

1шт.

7

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

1шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

8

VR2762

CLAMP

1шт.

9

T23137

EXTENSION - regular

1шт.

10

T51918

EXTENSION - long

1шт.

11

113-620

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

- 5/8" x 2-1/4" N.C. hex., Z.P.

1шт.

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

129-107

NUT,5/8"-11, G5

1шт.
