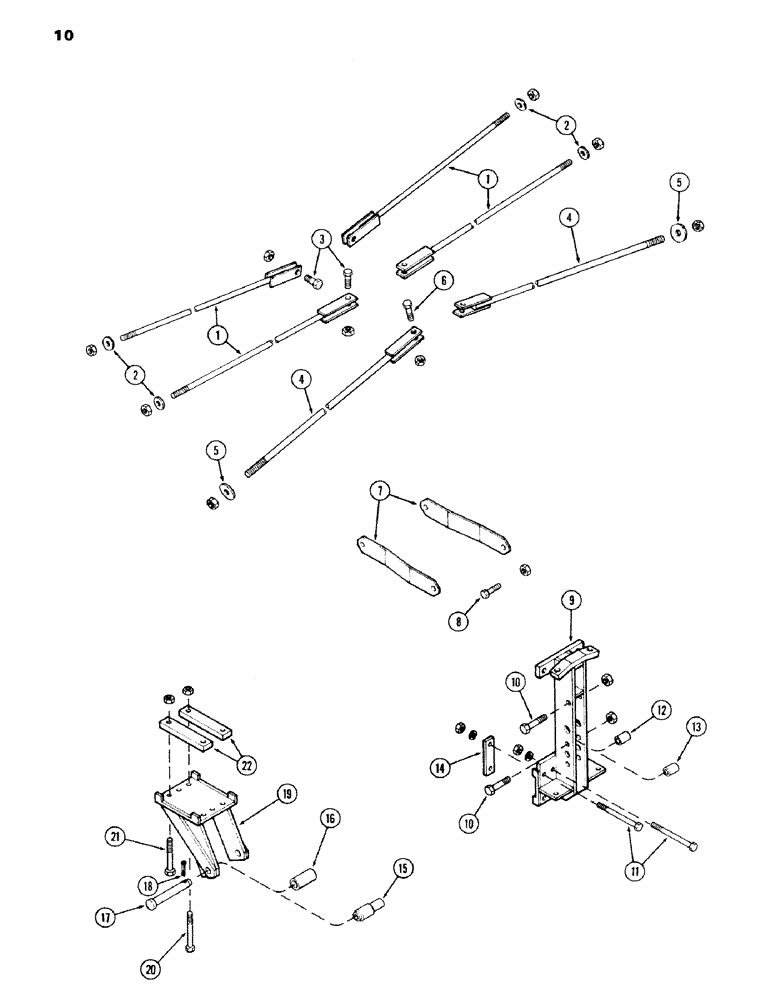

Запчасти Case IH 100-SERIES (10) - HITCH AND TRUSS RODS, 180W AND 188 12 WIDE ROW, SN1605900 AND UP

1

T55289

ROD - truss, 80"

4шт.

2

T52973

WASHER - 1/4" x 2"

4шт.

3

113-708

BOLT,Hex, 3/4" - 10 x 2", Gr 5

4шт.

131-385

LOCK NUT,3/4"-10, GA

NUT - lock, 3/4" N.C. hex., Z.P.

8шт.

4

T55285

ROD - truss, center, 121-3/4"

2шт.

131-163

LOCK NUT,1"-8, GA

NUT - lock, 1" N.C. hex., Z.P.

2шт.

5

T55286

WASHER - 1/4" x 3"

2шт.

6

113-705

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

- 3/4" x 2-1/2" N.C. hex., Z.P.

2шт.

131-385

LOCK NUT,3/4"-10, GA

NUT - lock, 3/4" N.C. hex., Z.P.

2шт.

7

T55270

STRAP - brace

2шт.

8

113-601

BOLT,Hex, 5/8" - 11 x 3", Gr 5

1шт.

129-148

JAM NUT,Jam, 3/4"-10, G5

- jam. 3/4" N.C. hex., Z.P.

2шт.

9

T55273

MAST - upright

1шт.

10

113-710

BOLT,Hex, 3/4" - 10 x 4", Gr 5

2шт.

131-385

LOCK NUT,3/4"-10, GA

NUT - lock, 3/4" N.C. hex., Z.P.

2шт.

11

T55236

BOLT

- stud, 5/8" x 9"

8шт.

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

129-107

NUT,5/8"-11, G5

8шт.

12

T55317

BUSHING - 1-1/4" O.D. x 2"

1шт.

13

A44474

SLEEVE

- 1-1/4" x 2"

1шт.

14

T53030

BRACKET

2шт.

15

T52878

SLEEVE - Category III

2шт.

16

T52879

SPACER - 1-1/4" x 3-3/4"

2шт.

17

T52877

PIN - clevis

2шт.

18

T50113

PIN

COTTER - hairpin

2шт.

19

T55274

HITCH - lower

2шт.

20

113-728

BOLT,Hex, 3/4" - 10 x 6-1/2", Gr 5

2шт.

21

113-737

BOLT,Hex, 3/4" - 10 x 6", Gr 5

10шт.

131-385

LOCK NUT,3/4"-10, GA

NUT - lock, 3/4" N.C. hex., Z.P.

12шт.

22

T55260

BRACKET

6шт.
