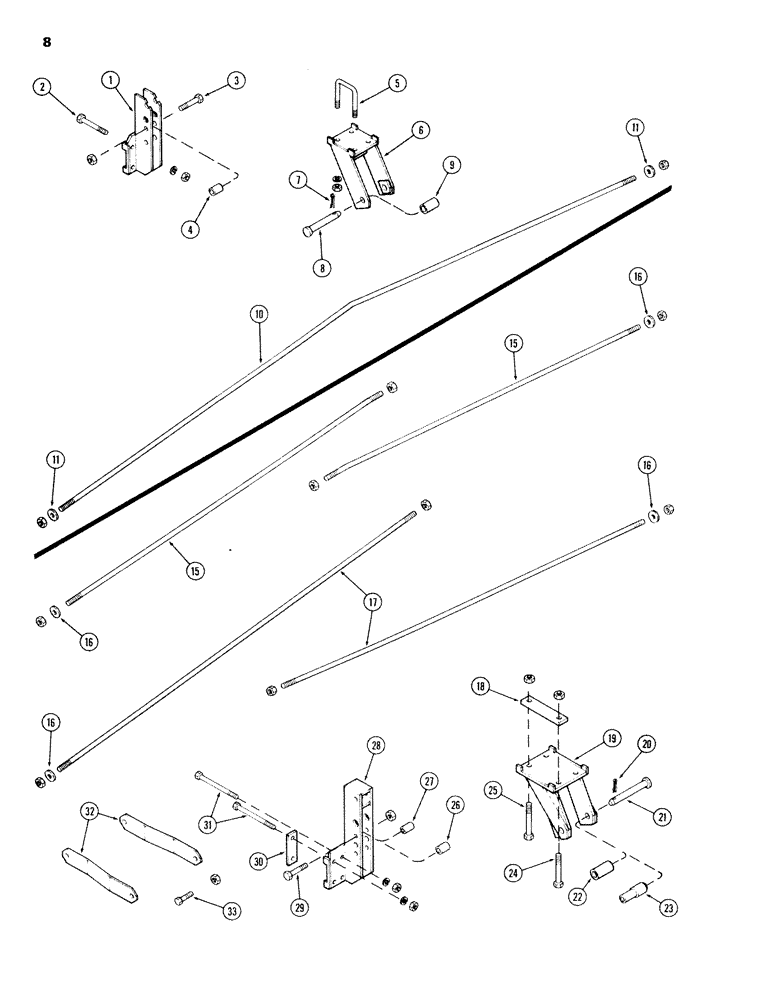

Запчасти Case IH 100-SERIES (08) - HITCH AND TRUSS RODS, SN1605900 AND UP

1

T55230

BRACKET - hitch, upper, 140W and 144

1шт.

2

113-2610

BOLT - 5/8" x 6" N.C. hex., Z.P., 140W and 144

4шт.

192-25

LOCK WASHER,5/8"

WASHER, LOCK, , 140W and 144 5/8"

4шт.

129-107

NUT,5/8"-11, G5

140W and 144 5/8"-11, G5

4шт.

3

113-710

BOLT,Hex, 3/4" - 10 x 4", Gr 5

140W and 144 Hex, 3/4"-10 x 4", G5

1шт.

131-385

LOCK NUT,3/4"-10, GA

NUT - lock, 3/4" N.C. hex., Z.P., 140W and 144

1шт.

4

T55317

BUSHING - 1-1/4" O.D x 2", 140W and 144

1шт.

5

T51881

U-BOLT

"U" BOLT - 5/8" x 5-1/4" (Order T51888), 140W and 144

4шт.

192-25

LOCK WASHER,5/8"

WASHER, LOCK, , 140W and 144 5/8"

8шт.

129-107

NUT,5/8"-11, G5

140W and 144 5/8"-11, G5

8шт.

6

T55340

BRACKET - hitch, lower, 140W and 144

2шт.

7

T50113

PIN

COTTER - hairpin, 140W and 144

2шт.

8

T50112

PIN

- clevis, 140W and 144

2шт.

9

T50111

PIPE

SLEEVE - 1-1/4" I.D. x 2-3/4", 140W and 144

2шт.

10

T55245

ROD - truss, 3/4" x 196", 140W and 144

1шт.

131-385

LOCK NUT,3/4"-10, GA

NUT - lock, 3/4" N.C. hex., Z.P., 140W and 144

2шт.

11

T52973

WASHER - 1/4" x 2", 140W and 144

2шт.

15

T52972

ROD - truss, 3/4" x 80" (180W & 188 only)

2шт.

131-385

LOCK NUT,3/4"-10, GA

NUT - lock, 3/4" N.C. hex., Z.P., 160W, 166, 180W, and 188

2шт.

16

T52973

WASHER - 1/4" x 2", 160W, 166, 180W, and 188

2шт.

17

T55248

ROD - truss, 3/4" x 89", 160W, 166, 180W, and 188

2шт.

131-385

LOCK NUT,3/4"-10, GA

NUT - lock, 3/4" N.C. hex., Z.P., 160W, 166, 180W, and 188

2шт.

18

T55260

BRACKET, 160W, 166, 180W, and 188

4шт.

19

T55259

HITCH - lower, 160W, 166, 180W, and 188

2шт.

20

T50113

PIN

COTTER - hairpin, 160W, 166, 180W, and 188

2шт.

21

T52877

PIN - clevis, 160W, 166, 180W, and 188

2шт.

22

T52879

SPACER - 1-1/4" x 3-3/4", 160W, 166, 180W, and 188

2шт.

23

T52878

SLEEVE - Category III, 160W, 166, 180W, and 188

2шт.

24

113-737

BOLT,Hex, 3/4" - 10 x 6", Gr 5

160W, 166, 180W, and 188 Hex, 3/4"-10 x 6", G5

6шт.

25

113-728

BOLT,Hex, 3/4" - 10 x 6-1/2", Gr 5

160W, 166, 180W, and 188 Hex, 3/4"-10 x 6 1/2", G5

2шт.

131-385

LOCK NUT,3/4"-10, GA

NUT - lock, 3/4" N.C. hex., Z.P., 160W, 166, 180W, and 188

8шт.

REF#24 & 25 ANOTHER BOLT USED (NOT A SUB) USE 113-2715 9/17/96

1шт.

26

A44474

SLEEVE

- 1-1/4" x 2", 160W, 166, 180W, and 188

1шт.

27

T55317

BUSHING - 1-1/4" O.D. x 2", 160W, 166, 180W, and 188

1шт.

28

T55258

MAST - upright, 160W, 166, 180W, and 188

1шт.

29

113-710

BOLT,Hex, 3/4" - 10 x 4", Gr 5

160W, 166, 180W, and 188 Hex, 3/4"-10 x 4", G5

1шт.

131-385

LOCK NUT,3/4"-10, GA

NUT - lock, 3/4" N.C. hex., Z.P., 160W, 166, 180W, and 188

1шт.

30

T53030

BRACKET, 160W, 166, 180W, and 188

2шт.

31

T55236

BOLT

- stud, 5/8" x 9", 160W, 166, 180W, and 188

8шт.

192-25

LOCK WASHER,5/8"

WASHER, LOCK, , 160W, 166, 180W, and 188 5/8"

8шт.

129-107

NUT,5/8"-11, G5

160W, 166, 180W, and 188 5/8"-11, G5

8шт.

REF#31 REPLACED BY 113-679 9/17/96

1шт.

32

T55270

STRAP - brace, 160W, 166, 180W, and 188

2шт.

33

113-601

BOLT,Hex, 5/8" - 11 x 3", Gr 5

160W, 166, 180W, and 188 Hex, 5/8"-11 x 3", G5

1шт.

129-148

JAM NUT,Jam, 3/4"-10, G5

- jam, 3/4" N.C. hex., Z.P., 160W, 166, 180W, and 188

2шт.

REF#33 ANOTHER BOLT USED(NOT A SUB)USE 113-2602 9/17/96

1шт.
