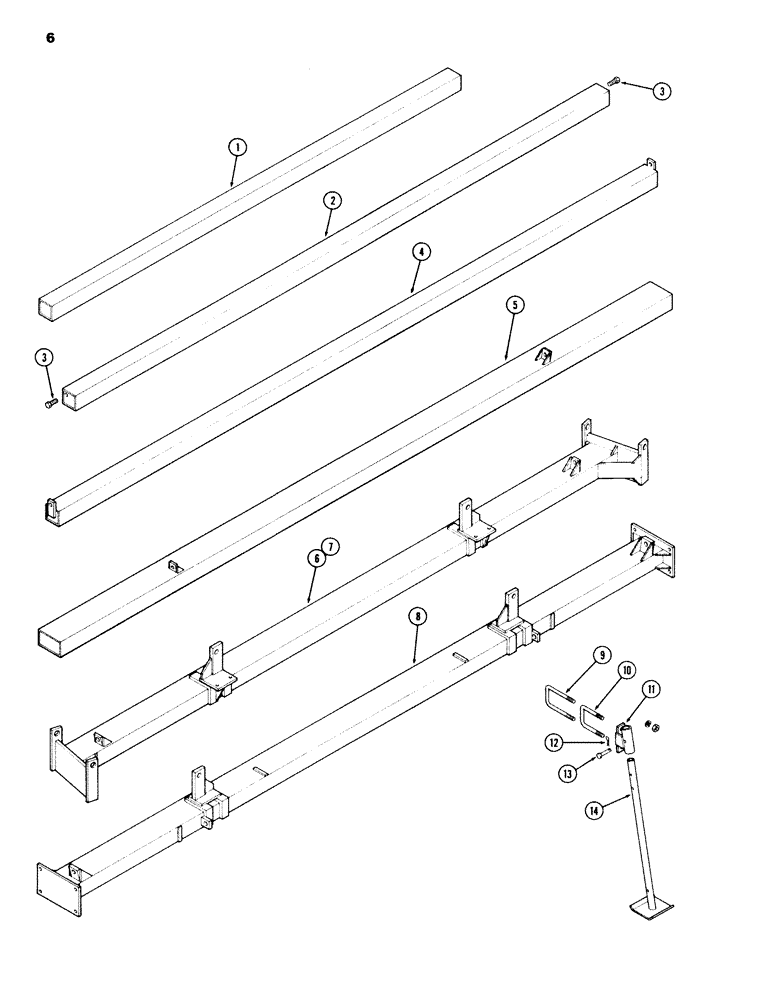

Запчасти Case IH 100-SERIES (06) - TOOLBARS AND SAFETY STAND, SN1605900 AND UP

1

T55244

TOOLBAR - 130" (140W)

1шт.

2

T55243

TOOLBAR - 170" (140W & 144)

1шт.

3

113-713

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

2шт.

4

T55232

TOOLBAR - 190" (140W & 144)

1шт.

5

T55269

TOOLBAR - 250" (160W & 166)

1шт.

6

T55261

TOOLBAR - 192" (180W & 188)

1шт.

7

T55268

TOOLBAR - 172" (180W & 188)

1шт.

8

T55275

TOOLBAR - 250" (180W & 188)

1шт.

9

T55254

"U" BOLT - 5/8" x 8-1/4" (4" x 7" Toolbar)

1шт.

10

T51881

U-BOLT

"U" BOLT - 5/8" x 5-1/4" (4" x 4" Toolbar) (Order T51888)

1шт.

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

129-107

NUT,5/8"-11, G5

2шт.

11

T55252

MOUNT - stand

1шт.

12

T28981

COTTER - hairpin

1шт.

13

T35425

PIN - clevis

1шт.

14

T55253

STAND

1шт.

T56427

U-BOLT

for 3" frame

1шт.
