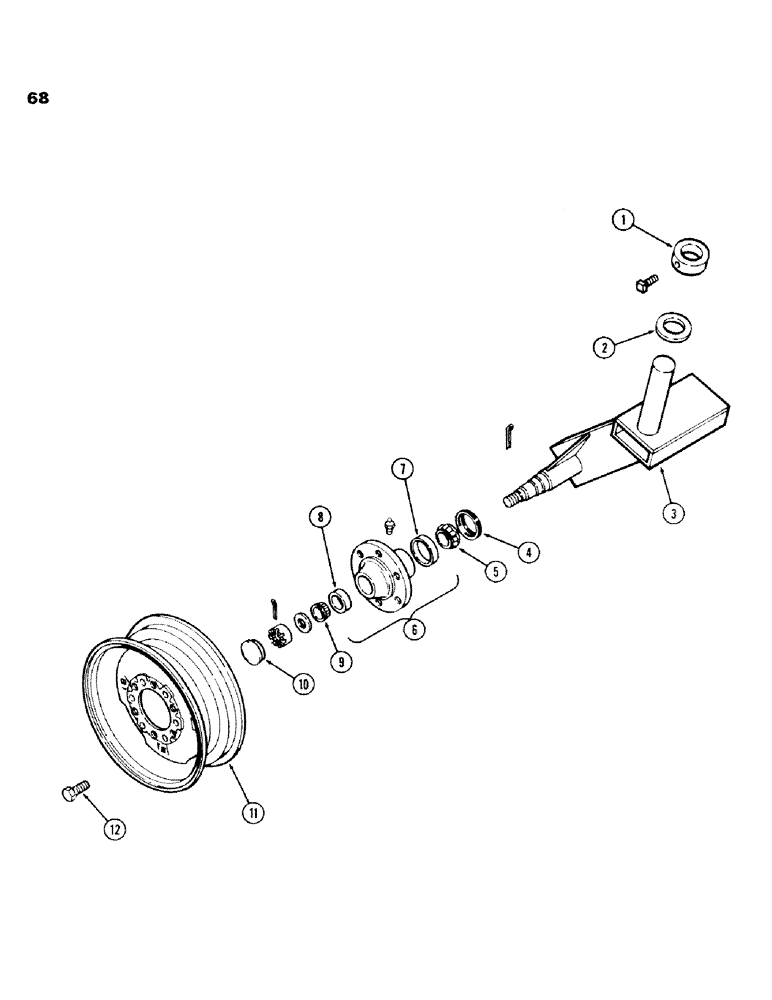

Запчасти Case IH 100-SERIES (68) - ASSIST WHEEL AXLE, 180W AND 188 12 WIDE ROW, SN1605900 AND UP

1

T55306

COLLAR

1шт.

181-805

SET SCREW,Sq Hd, 3/8"-16 x 1/2"

SETSCREW - 3/8" x 1/2", sq. hd., Z.P.

1шт.

2

T55307

WASHER

- 1/4" x 3"

1шт.

3

T55305

AXLE

1шт.

195-50

WASHER,7/8" x 2" x .165"

- 2" x 29/32" x 5/32"

1шт.

132-341

COTTER PIN,5/32" x 1 1/2"

5/32" x 1 1/2"

1шт.

425-1914

SLOTTED NUT,7/8"-14, G5, Thk

NUT, SLOTTED, 7/8"-14, G5, Thk

1шт.

4

T52904

SEAL

- grease

1шт.

5

T54089

ROLLER BEARING,38 mm ID x 17.076 mm

CONE - bearing, inner

1шт.

6

T54088

HUB

- w/cups

1шт.

7

T54090

BEARING CUP,63 mm OD x 13.5 mm

CUP - bearing, inner

1шт.

8

B12410

BEARING, CUP,1.782" OD

CUP - bearing, outer

1шт.

9

B12409

BEARING, ROLLER,31.763 mm ID x 16.84 mm

CONE - bearing, outer

1шт.

10

T23707

CAP

- hub

1шт.

11

F88910

WHEEL - 15 x 10

1шт.

12

T40045

WHEEL BOLT

BOLT - wheel

6шт.
