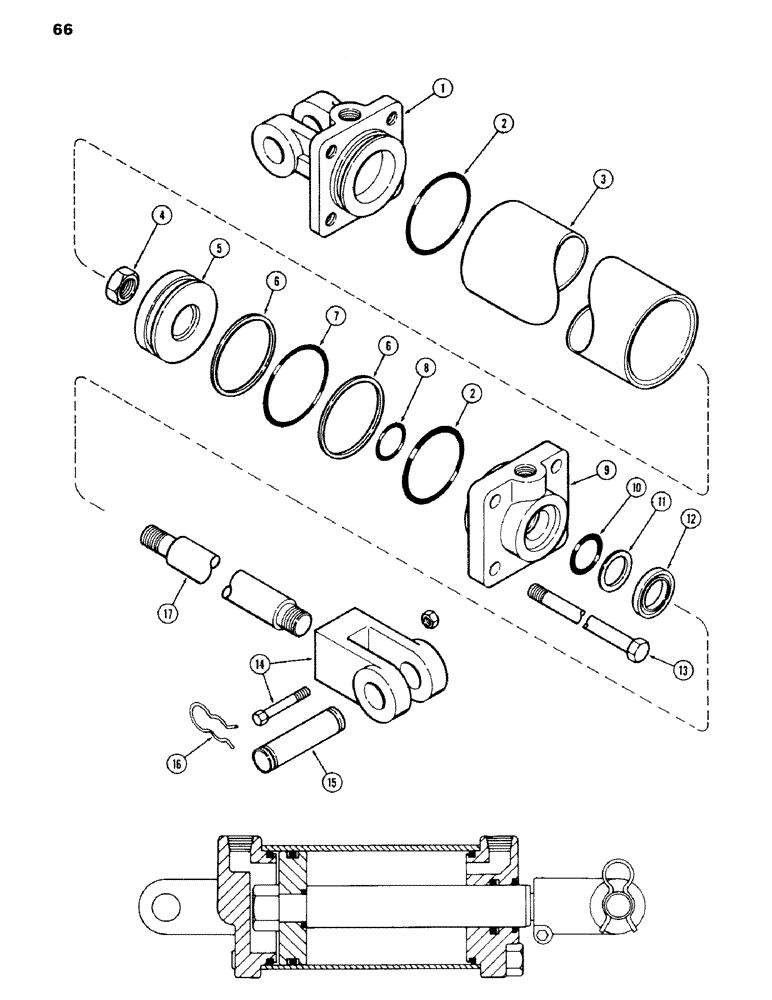

Запчасти Case IH 100-SERIES (66) - HYDRAULIC CYLINDER, T54005, 180W AND 188 12 WIDE ROW SN1605900 AND UP

T54005

CYLINDER - hydraulic, 3" x 8", complete

1шт.

1

T53046

CAP

BUTT

1шт.

2

T53051

"O" RING

2шт.

Included w/ SEAL KIT, T63177

1шт.

3

T53045

TUBE

1шт.

4

131-1151

NUT - lock, 3/4" N.F.

1шт.

5

T53048

PISTON

1шт.

6

H754614

WASHER

- backup

2шт.

Included w/ SEAL KIT, T63177

1шт.

7

D38755

O-RING,0.21" Thk x 2.6" ID, -334, Cl 5, 75 Duro

"O" RING

1шт.

Included w/ SEAL KIT, T63177

1шт.

8

D32114

O-RING,0.75" ID x 0.875" OD

"O"RING

1шт.

Included w/ SEAL KIT, T63177

1шт.

9

T54007

GLAND

1шт.

10

A30915

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

"O" RING

1шт.

Included w/ SEAL KIT, T63177

1шт.

11

L32992

RING

WASHER - backup

1шт.

Included w/ SEAL KIT, T63177

1шт.

12

T53294

WIPER SEAL

WIPER

1шт.

Included w/ SEAL KIT, T63177

1шт.

13

T53050

TIE-ROD

ROD - tie

4шт.

14

T53290

CLEVIS

ASSY.

1шт.

15

T53058

PIN

- clevis

2шт.

16

T52926

CLIP

COTTER - hairpin

4шт.

17

T54006

ROD

- piston, 1-3/8"

1шт.

T63177

KIT

- seal, Includes: Ref. 2, 6 - 8 and 10 - 12

1шт.
