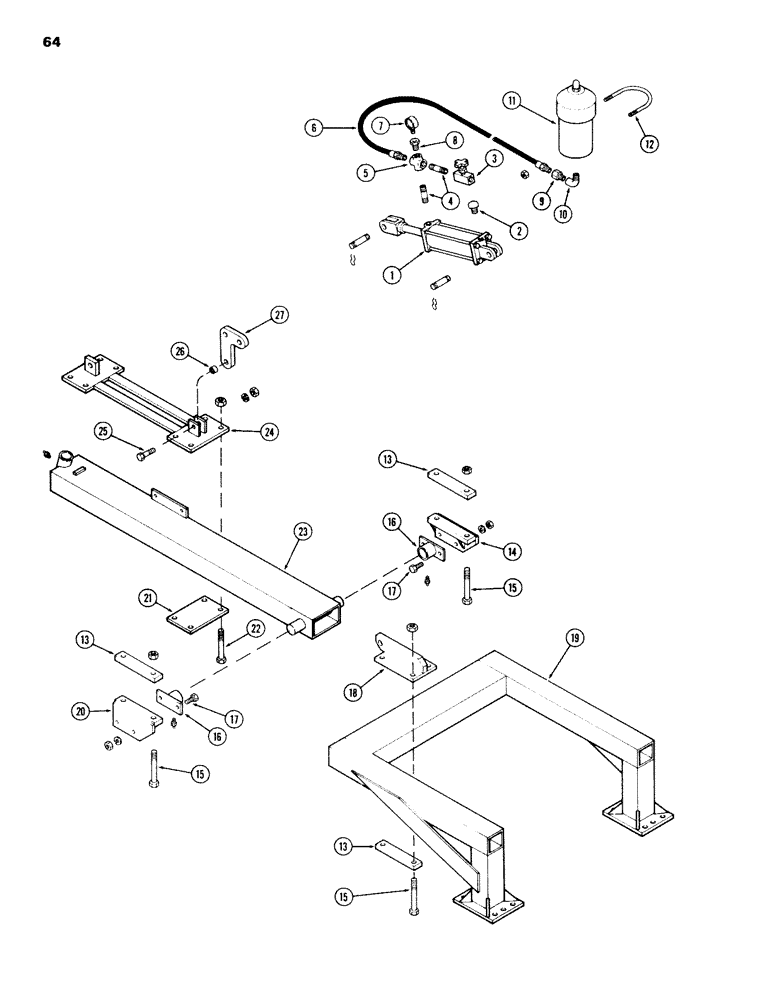

Запчасти Case IH 100-SERIES (64) - ASSIST WHEEL MOUNT AND FRAME, 180W AND 188 12 WIDE ROW S/N 1605900 AND UP

1

T54005

CYLINDER - hydraulic, 3" x 8" (See Page 67)

1шт.

2

T55316

BREATHER

1шт.

3

T55315

VALVE - shutoff

1шт.

4

221-1190

PIPE,Nipple, 1/2" NPT x 2"

NIPPLE - pipe, 1/2" x 2"

2шт.

5

217-1203

4 WAY CONNECTION,Female, 1/2"-14

CROSS - pipe, 1/2"

1шт.

6

T52823

HOSE - hydraulic, 1/2" x 30"

1шт.

7

T38255

GAUGE

- 3000 P.S.I.

1шт.

8

221-1088

REDUCER,Hex, 1/2" x 1/4" NPT

BUSHING - pipe, 1/4" x 1/2"

1шт.

9

221-1813

UNION - 1/2"

1шт.

10

221-1414

ELBOW,90 Degree, 1/2"-14, NPT

- street, 1/2" x 90deg.

1шт.

11

T55314

ACCUMULATOR

1шт.

12

T55313

"U" BOLT

1шт.

131-666

LOCK NUT,3/8"-16, GB

NUT - lock, 3/8" N.C. hex., Z.P.

2шт.

13

T55260

LUG

4шт.

14

T55309

BRACKET - axle bearing, L.H.

1шт.

15

113-728

BOLT,Hex, 3/4" - 10 x 6-1/2", Gr 5

8шт.

131-385

LOCK NUT,3/4"-10, GA

NUT - lock, 3/4" N.C. hex., Z.P.

8шт.

16

T55460

BEARING

- axle

2шт.

219-22

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8"

2шт.

17

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

18

T55310

LUG - cylinder

1шт.

19

T55301

MOUNT - assist wheel

1шт.

20

T55308

BRACKET - axle bearing, R.H.

1шт.

21

T55304

PLATE

2шт.

22

113-737

BOLT,Hex, 3/4" - 10 x 6", Gr 5

8шт.

131-385

LOCK NUT,3/4"-10, GA

NUT - lock, 3/4" N.C. hex., Z.P.

8шт.

23

T55302

FRAME

1шт.

219-22

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8"

1шт.

24

T55303

MOUNT - cylinder

1шт.

25

113-601

BOLT,Hex, 5/8" - 11 x 3", Gr 5

1шт.

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

129-107

NUT,5/8"-11, G5

1шт.

26

T28975

BUSHING

- 1" x 27/32"

1шт.

27

T55312

LUG - cylinder

1шт.

T39320

SEALER - tape (60" Teflon) (Order T52653)

1шт.
