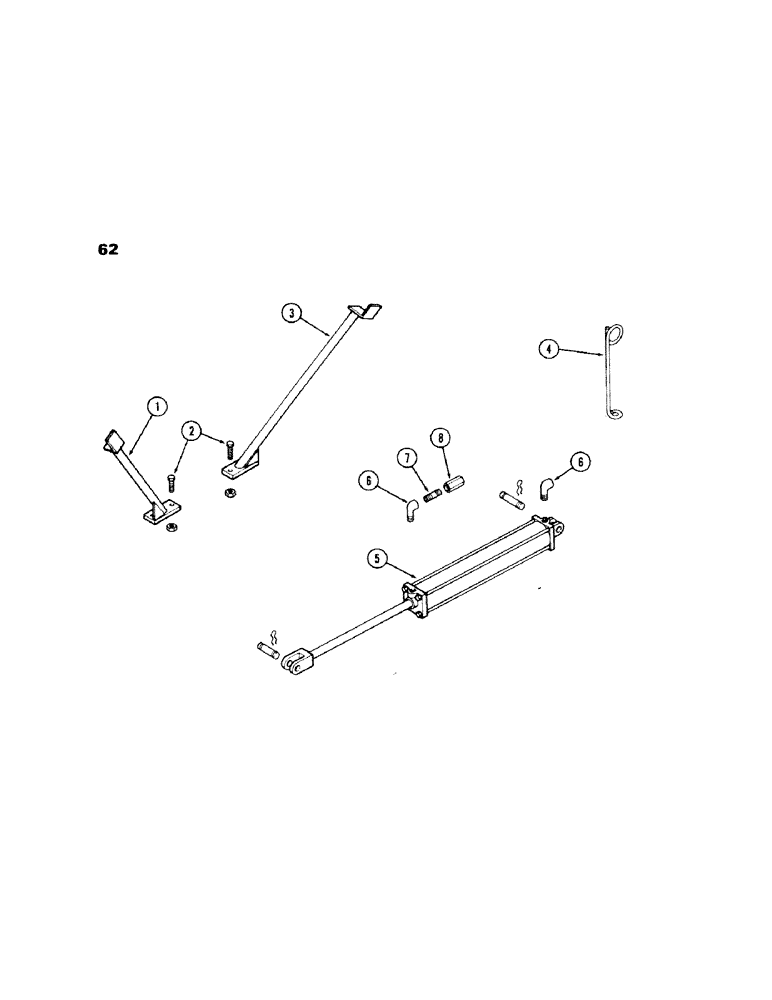

Запчасти Case IH 100-SERIES (62) - WING STOP AND CYLINDER, 180W AND 188, SN1605900 AND UP

1

T55249

STOP - wing, R.H.

1шт.

2

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

131-1116

LOCK NUT,1/2"-13, GB

NUT - lock, 1/2" N.C. hex., Z.P.

4шт.

3

T55250

STOP - wing, L.H.

1шт.

4

T35693

CARRIER - hose

2шт.

5

T52827

CYLINDER - hydraulic, 3" x 24" (See Page 57)

2шт.

6

221-1414

ELBOW,90 Degree, 1/2"-14, NPT

- street, 1/2" x 90 (0}

4шт.

7

221-1190

PIPE,Nipple, 1/2" NPT x 2"

NIPPLE - pipe, 1/2" x 2"

2шт.

8

T52988

RESTRICTOR - flow

2шт.

T39320

SEALER - tape (60" Teflon) (Order T52653)

1шт.
