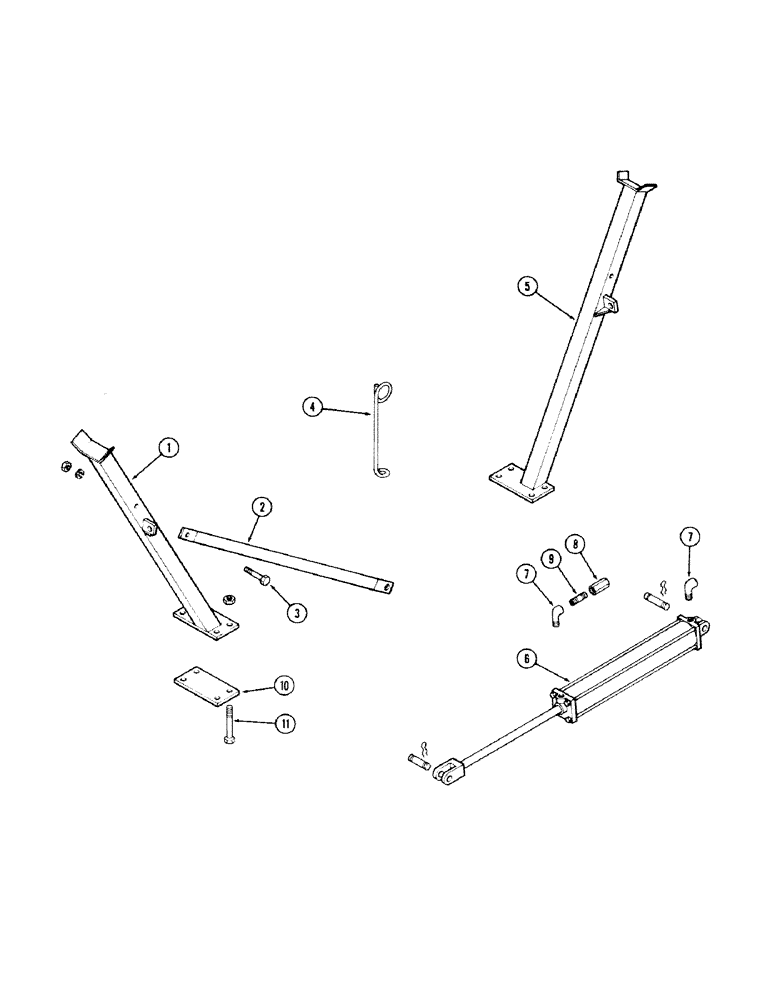

Запчасти Case IH 100-SERIES (62[1]) - WING STOP AND CYLINDER 180W AND 188 12 WIDE ROW, SN1605900 AND UP

1

T55290

STOP - wing, R.H.

1шт.

2

T55292

BRACE

2шт.

3

113-618

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- 5/8" x 4" N.C. hex., Z.P.

2шт.

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

129-107

NUT,5/8"-11, G5

2шт.

4

T35693

CARRIER - hose

2шт.

5

T55291

STOP - wing, L.H.

1шт.

6

T52827

CYLINDER - hydraulic, 3" x 24" (See Page 57)

2шт.

7

221-1414

ELBOW,90 Degree, 1/2"-14, NPT

- street, 1/2" x 90deg.

4шт.

8

T52988

RESTRICTOR - flow

2шт.

9

221-1190

PIPE,Nipple, 1/2" NPT x 2"

NIPPLE - pipe, 1/2" x 2"

2шт.

10

T55293

PLATE

2шт.

11

113-737

BOLT,Hex, 3/4" - 10 x 6", Gr 5

8шт.

131-385

LOCK NUT,3/4"-10, GA

NUT - lock, 3/4" N.C. hex., Z.P.

1шт.

T39320

SEALER - tape (60" Teflon) (Order T52653)

1шт.
