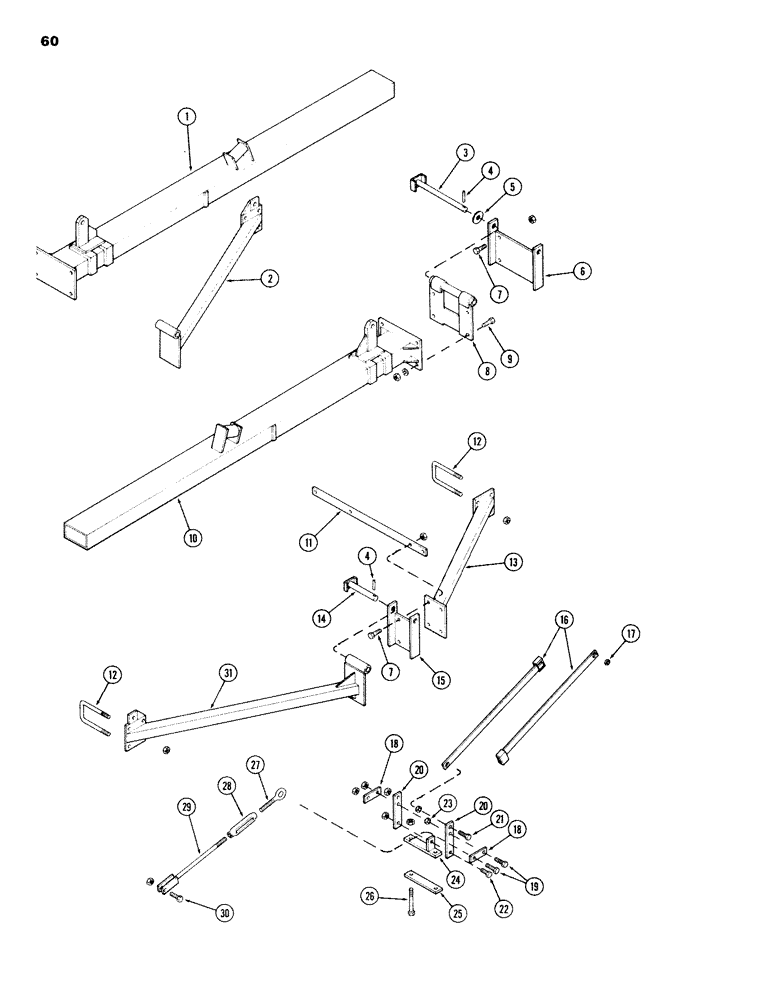

Запчасти Case IH 100-SERIES (60) - WING ASSEMBLY, 180W AND 188 12 WIDE ROW, SN1605900 AND UP

1

T55277

WING - L.H., 104"

1шт.

2

T55283

BRACE - outer, L.H.

1шт.

3

T52979

PIN - hinge

2шт.

4

T28978

PIN - drive, 3/8" x 2", Z.P.

4шт.

5

T52980

WASHER - 1/4" x 2-7/8"

2шт.

6

T55278

HINGE - outer

2шт.

7

113-626

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

16шт.

230-41110

LOCK NUT,5/8"-11, GA

NUT - lock, 5/8" N.C. hex., Z.P.

16шт.

8

T52978

HINGE

2шт.

9

113-604

BOLT,Hex, 5/8" - 11 x 2", Gr 5

8шт.

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

129-107

NUT,5/8"-11, G5

8шт.

10

T55276

WING - R.H., 104"

1шт.

11

T55281

BRACE - strap

4шт.

12

T55254

"U" BOLT

8шт.

230-41110

LOCK NUT,5/8"-11, GA

NUT - lock, 5/8" N.C. hex., Z.P.

16шт.

13

T55279

BRACE - inner

2шт.

14

T55284

PIN - hinge

2шт.

15

T55280

HINGE

2шт.

16

T55287

STRAP - slide

4шт.

17

T55298

BUSHING - 7/8" x 5/16"

6шт.

18

T28912

BRACKET

4шт.

19

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

4шт.

131-1116

LOCK NUT,1/2"-13, GB

NUT - lock, 1/2" N.C. hex., Z.P.

4шт.

20

T55295

STRAP

4шт.

21

113-607

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

2шт.

230-41110

LOCK NUT,5/8"-11, GA

NUT - lock, 5/8" N.C. hex., Z.P.

2шт.

22

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

131-1116

LOCK NUT,1/2"-13, GB

NUT - lock, 1/2" N.C. hex., Z.P.

2шт.

23

T55297

BUSHING - 1-1/4" x 3/4"

2шт.

24

T55294

BRACE - lug

2шт.

25

T55296

BRACKET

2шт.

26

113-630

BOLT,Hex, 5/8" - 11 x 6", Gr 5

- 5/8" x 6" N.C. hex., Z.P.

4шт.

230-41110

LOCK NUT,5/8"-11, GA

NUT - lock, 5/8" N.C. hex., Z.P.

4шт.

27

T55300

EYEBOLT - L.H. thrd.

2шт.

28

T55299

TURNBUCKLE

2шт.

29

T55288

ROD - adjusting

2шт.

30

113-708

BOLT,Hex, 3/4" - 10 x 2", Gr 5

2шт.

195-109

WASHER,3/4"

- 2" x 13/16" x 9 ga., Z.P.

4шт.

131-385

LOCK NUT,3/4"-10, GA

NUT - lock, 3/4" N.C. hex., Z.P.

2шт.

31

T55282

BRACE - outer, R.H.

1шт.
