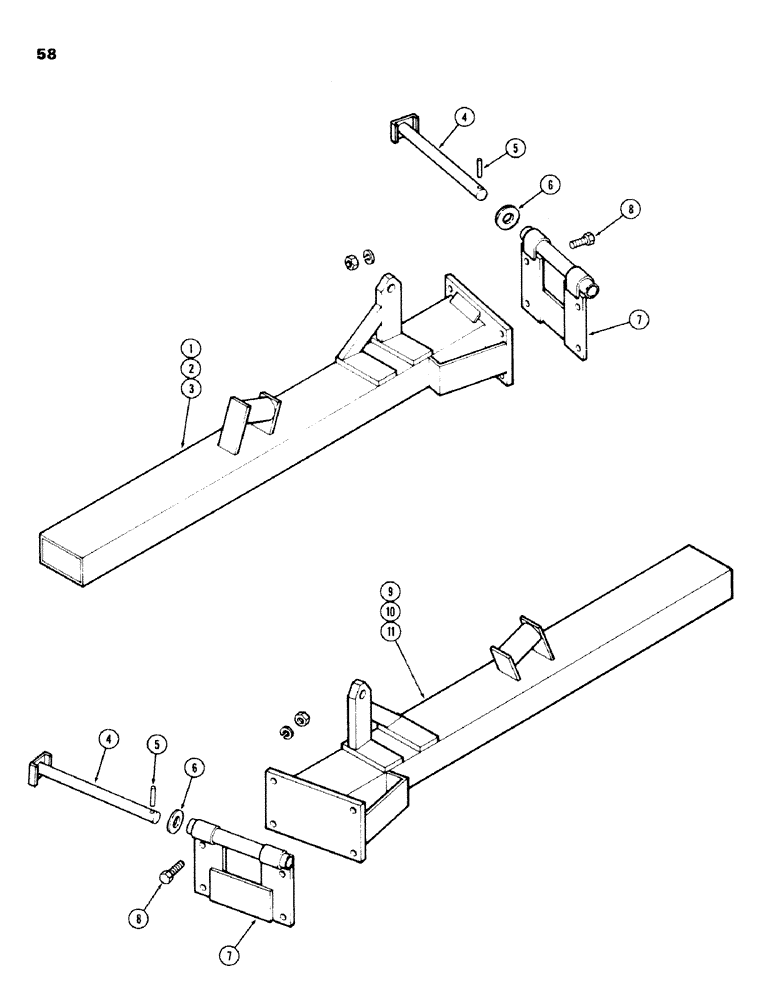

Запчасти Case IH 100-SERIES (58) - WING ASSEMBLY, 180W AND 188, SN1605900 AND UP

1

T55265

WING - R.H., 68"

1шт.

2

T55262

WING - R.H., 70"

1шт.

3

T55266

WING - R.H., 88"

1шт.

4

T52979

PIN - hinge

2шт.

5

T28978

PIN - drive, 3/8" x 2", Z.P.

2шт.

6

T52980

WASHER - 1/4" x 2-7/8"

4шт.

7

T52978

HINGE

2шт.

8

113-604

BOLT,Hex, 5/8" - 11 x 2", Gr 5

8шт.

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

129-107

NUT,5/8"-11, G5

8шт.

9

T55264

WING - L.H., 68"

1шт.

10

T55263

WING - L.H., 70"

1шт.

11

T55267

WING - L.H., 88"

1шт.
