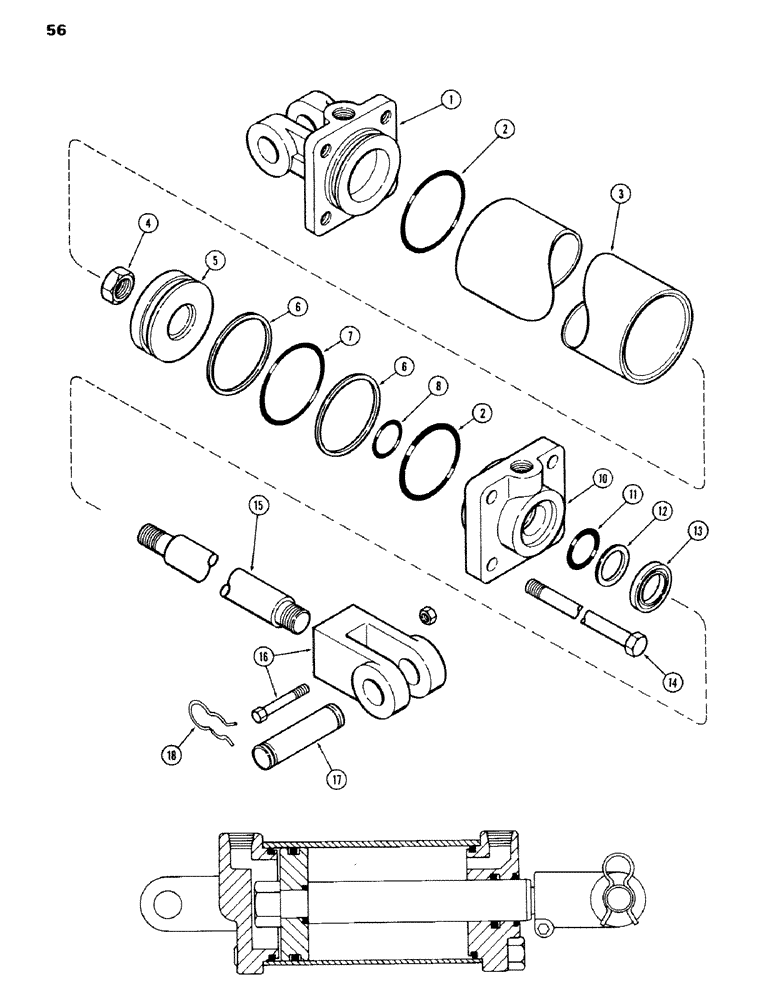

Запчасти Case IH 100-SERIES (56) - HYDRAULIC CYLINDER, T52827

T52827

CYLINDER - hydraulic, 3" x 24", complete

2шт.

1

T53046

CAP

BUTT

1шт.

2

T53051

"O" RING

2шт.

Included w/ SEAL KIT, T63126

1шт.

3

T53061

TUBE - cylinder

1шт.

4

131-1151

NUT - lock, 3/4" N.F.

1шт.

5

T53048

PISTON

1шт.

6

H754614

WASHER

- backup

2шт.

Included w/ SEAL KIT, T63126

1шт.

7

D38755

O-RING,0.21" Thk x 2.6" ID, -334, Cl 5, 75 Duro

"O" RING

1шт.

Included w/ SEAL KIT, T63126

1шт.

8

D32114

O-RING,0.75" ID x 0.875" OD

"O" RING

1шт.

Included w/ SEAL KIT, T63126

1шт.

10

T53047

END

GLAND

1шт.

11

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

"O" RING

1шт.

Included w/ SEAL KIT, T63126

1шт.

12

A23553

RING

WASHER - backup

1шт.

Included w/ SEAL KIT, T63126

1шт.

13

T53057

WIPER SEAL

WIPER

1шт.

Included w/ SEAL KIT, T63126

1шт.

14

T53062

ROD - tie

4шт.

15

T53060

ROD

- piston

1шт.

16

T53290

CLEVIS

ASSY.

1шт.

17

T53058

PIN

- clevis

2шт.

18

T52926

CLIP

- hairpin

4шт.

T63126

SEAL KIT

- seal, Includes: Ref, 2, 6 - 8 and 11 - 13

1шт.
