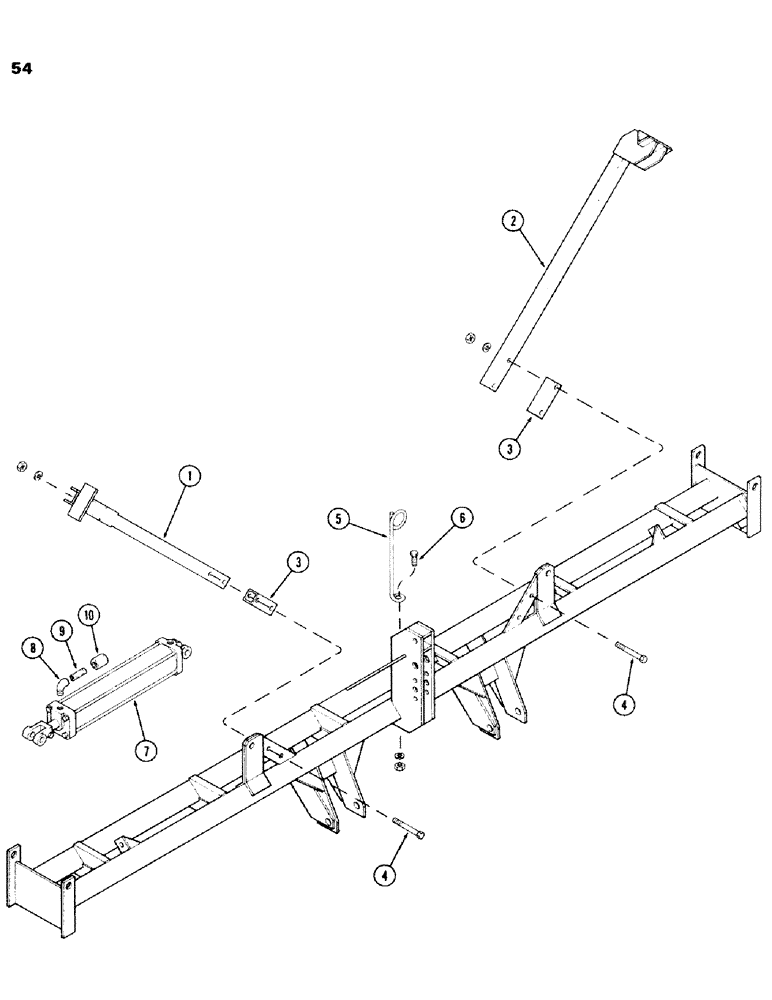

Запчасти Case IH 100-SERIES (54) - WING STOP AND CYLINDER, PRIOR TO SN1605900

1

T52983

STOP - wing, R.H.

1шт.

2

T52984

STOP - wing, L.H.

1шт.

3

T52986

STEM

SPACER

2шт.

4

113-643

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5

4шт.

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

129-107

NUT,5/8"-11, G5

4шт.

5

T35693

CARRIER - hose

1шт.

NOTE:REF#5 THE RADIUS ENLARGED ON MOUNTING LOOP TO MOUNT ON 3/4" BOLT.ALSO FLAT WASHER 195-108 ADDED FOR MOUNTING ON SMALLER BOLTS 9/17/96

1шт.

6

113-607

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

1шт.

230-41110

LOCK NUT,5/8"-11, GA

NUT - lock, 5/8" N.C. hex., Z.P.

1шт.

7

T52827

CYLINDER - hydraulic, 3" x 24" (See Page 57)

2шт.

8

221-1414

ELBOW,90 Degree, 1/2"-14, NPT

- street, 1/2" x 90deg.

4шт.

9

221-1190

PIPE,Nipple, 1/2" NPT x 2"

NIPPLE - pipe, 1/2" x 2"

2шт.

10

T52988

RESTRICTOR - flow

2шт.

T39320

SEALER - tape (60" Teflon) (Order T52653)

1шт.
