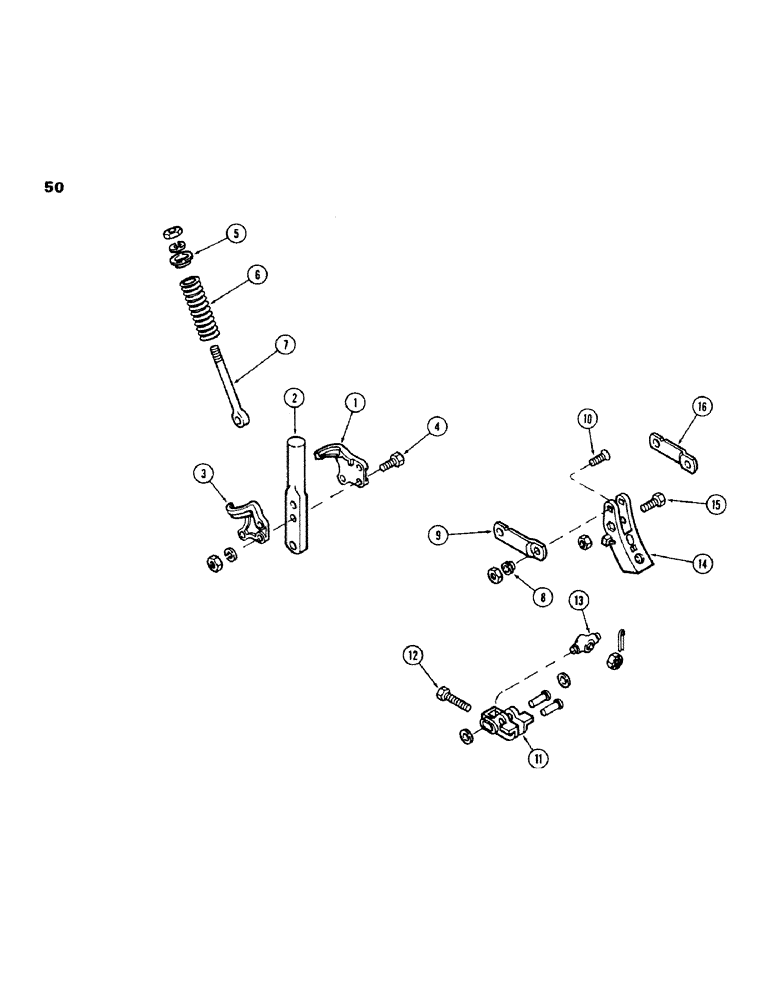

Запчасти Case IH 100-SERIES (50) - HEAVY DUTY SPRING TRIPS, PRIOR TO SN1605900

1

T1602

SEAT - spring, L.H.

1шт.

2

T19874

STANDARD

1шт.

3

T1601

SEAT - spring, R.H.

1шт.

4

15-628

X

BOLT - 3/8" x 1-3/4" N.C. hex., Gr. 5

2шт.

92-6

LOCK WASHER,3/8"

2шт.

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

2шт.

5

V16563

GUIDE - spring

1шт.

6

326EB

SPRING - trip

1шт.

7

T19869

EYEBOLT - spring adjusting

1шт.

195-2042

WASHER,.469" x 1 1/2" x .134"

- 1-1/2" x 15/32" x 10 ga.

1шт.

25-107

NUT,7/16"-14, G5

- 7/16" N.C. hex.

1шт.

8

T19868

BUSHING - connecting link

2шт.

9

CT2592S

STRAP

LINK - connecting, R.H.

1шт.

10

118-113

X

BOLT - plow, 3/8" x 1-1/8" P3

2шт.

131-352

LOCK NUT,3/8"-16, GA

NUT - lock, 3/8" N.C. hex.

2шт.

11

CTA453

LINK - adjusting stop

1шт.

48-728

RIVET - 7/16" x 1-3/4", oval head

2шт.

12

T60654

BOLT - adjusting, w/nut and cotter

1шт.

95-5

WASHER,3/8" x 7/8" x .083"

- 7/8" x 3/8" x 14 ga.

2шт.

13

CT2280S

PLUG - screw adjusting

1шт.

14

T1649

FOOTPIECE

1шт.

15

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- 1/2" x 1-3/4" N.C. hex.

1шт.

131-164

LOCK NUT,Jam, 1/2"-13

NUT - lock, 1/2" N.C. hex.

1шт.

16

CT2593S

STRAP

LINK - connecting, L.H.

1шт.
