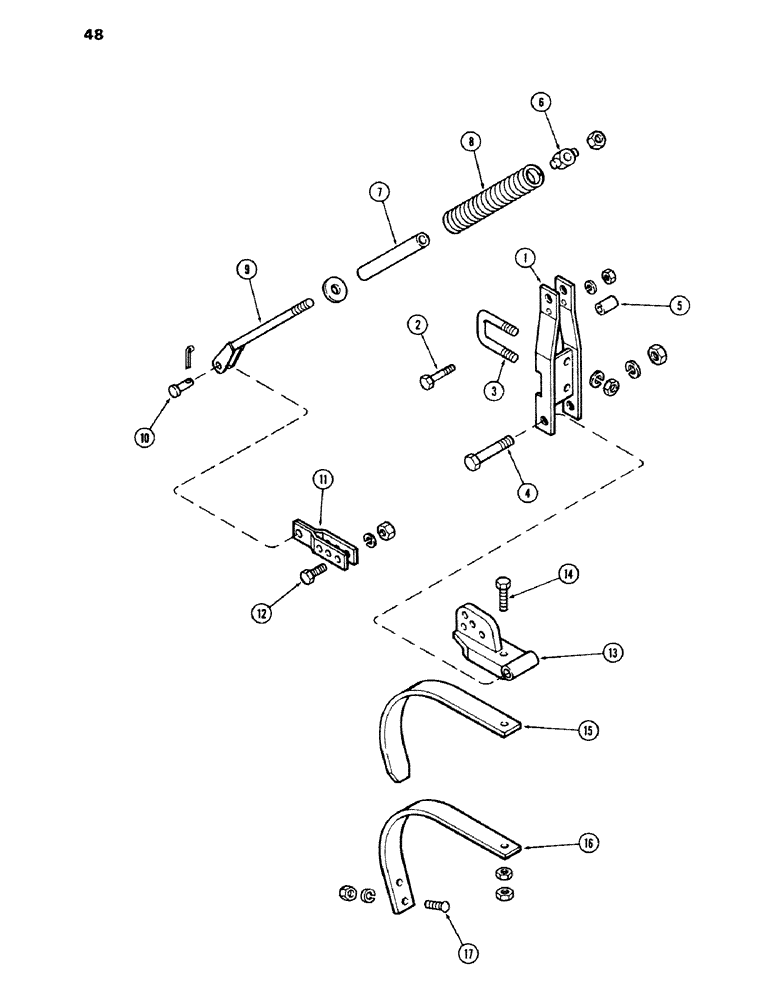

Запчасти Case IH 100-SERIES (48) - PITCHMASTER SHANK

1

T28892

BRACKET

- shank

1шт.

2

113-12

BOLT,Hex, 1/4" - 20 x 2-1/2", Gr 5

- 1/4" x 2-1/2" N.C. hex., Z.P.

1шт.

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

1шт.

3

T50871

U-BOLT

"U" BOLT

2шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

4

113-619

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

1шт.

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

129-107

NUT,5/8"-11, G5

1шт.

5

T28982

SPACER

1шт.

6

T1937

PIVOT

SWIVEL

1шт.

7

T51884

SLEEVE

1шт.

8

T28942

SPRING

- pressure

1шт.

9

T35687

ROD

- pressure

1шт.

195-106

WASHER,1/2"

- 1-3/8" x 9/16" x 12 ga.

1шт.

131-1100

LOCK NUT,1/2"-13, GA

NUT, LOCK, 1/2"-13, GA

1шт.

10

T28980

CLEVIS PIN

PIN - clevis, 1/2" x 1-1/2"

1шт.

132-310

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

11

T35688

LEVER

- adjusting

1шт.

12

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

13

T35690

HOLDER

- shank

1шт.

14

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

1шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

15

T28894

SPRING, LEAF

LEAF - helper spring

1шт.

16

T28895

SPRING, LEAF

LEAF - main spring

1шт.

17

118-124

X

BOLT - plow, 3/8" x 1-1/4" P3

2шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.
