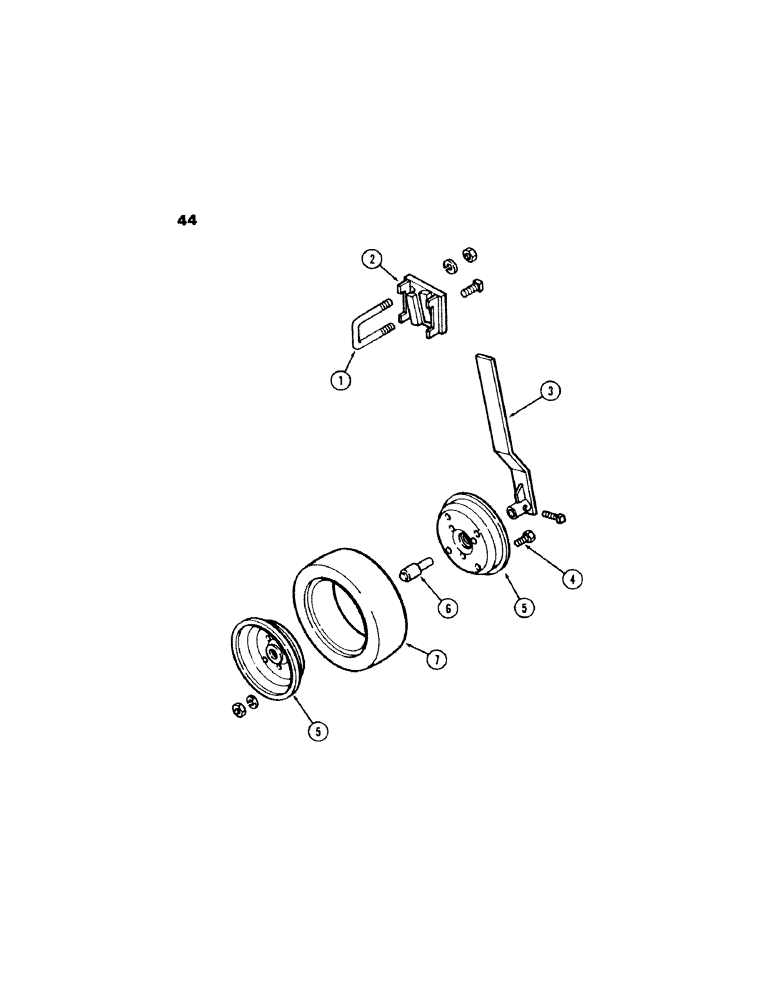

Запчасти Case IH 100-SERIES (44) - GANG GAUGE WHEEL, SN1605900 AND UP

1

T51879

"U" BOLT

2шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

2

T51878

BRACKET - mounting

1шт.

85-820

SET SCREW,Sq Hd, 1/2"-13 x 1 1/4"

SETSCREW - 1/2" x 1-1/4", sq. hd.

2шт.

3

T53499

AXLE - gauge wheel

1шт.

85-68

SET SCREW,Sq Hd, 3/8"-16 x 1/2"

SETSCREW - 3/8" x 1/2", sq. hd., Z.P.

1шт.

4

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

7шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

7шт.

9635082

NUT,5/16" - 18, Gr 5

7шт.

5

T53670

WHEEL

DISK - wheel half

2шт.

6

T26882

BEARING

- gauge wheel

1шт.

7

T15542

TYRE/TIRE

TIRE - gauge wheel, heavy duty (4 x 12)

1шт.
