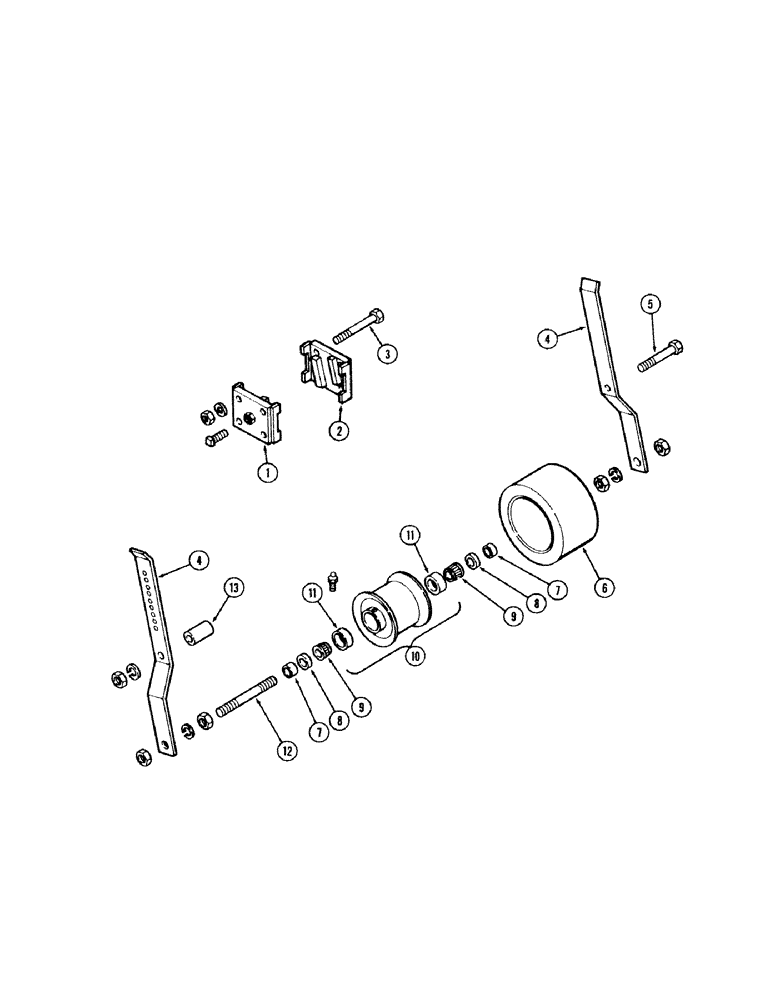

Запчасти Case IH 100-SERIES (44[1]) - GAUGE WHEEL - HEAVY DUTY, SN1605900 AND UP

1

T51891

BRACKET - mounting, L.H.

1шт.

2

T51892

BRACKET - mounting, R.H.

1шт.

85-1020

SET SCREW,Sq Hd, 5/8"-11 x 1 1/4"

SETSCREW - 5/8" x 1-1/4", sq. hd.

2шт.

3

113-436

BOLT,Hex, 1/2" - 13 x 5-1/2", Gr 5

4шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

4

T51893

STANDARD - axle

2шт.

5

113-411

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

1шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

1шт.

6

371-8510

TIRE - 13 x 5.00, 6 ply

1шт.

7

T51923

SPACER

- 17/32" x 1-1/8"

2шт.

8

T51922

SEAL

- grease

2шт.

9

B12411

ROLLER BEARING,0.75" ID x 0.655"

CONE - bearing

2шт.

10

T53669

WHEEL ASSY.

HUB - w/cups

1шт.

219-10

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease, 1/4" taper

1шт.

11

B12408

BEARING CUP,59.156 mm OD x 11.862 mm

CUP - bearing

2шт.

12

T51895

AXLE SHAFT - 3/4" x 8-1/8"

1шт.

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

129-108

NUT,3/4"-10, G5

2шт.

131-388

NUT - lock, 3/4" N.C. hex

2шт.

13

T51894

SLEEVE - 7/8" x 2-9/16"

1шт.
