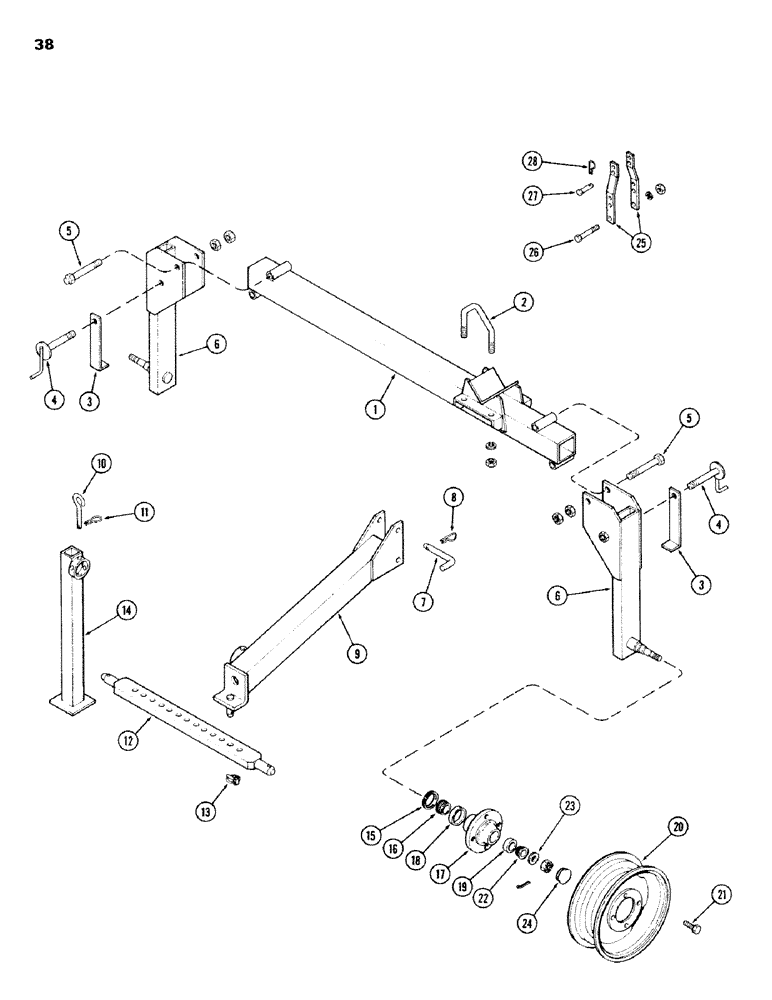

Запчасти Case IH 100-SERIES (38) - END TRANSPORT & TRANSPORT STRAPS, PRIOR TO SN1605900

1

T51859

BAR - axle

1шт.

2

T51840

U-BOLT

"U" BOLT

2шт.

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

129-108

NUT,3/4"-10, G5

4шт.

3

T51863

BRACKET

2шт.

4

T51861

PIN - lock

2шт.

5

T51862

PIN - hitch

2шт.

129-150

NUT,Jam, 1"-8, G5

- jam, 1" N.C. hex., Z.P.

4шт.

6

T51860

AXLE

2шт.

25-1312

SLOTTED NUT,3/4"-16, G5

NUT - 3/4" N.F. hex., slotted

2шт.

132-341

COTTER PIN,5/32" x 1 1/2"

5/32" x 1 1/2"

2шт.

7

T51866

PIN - pivot

2шт.

8

T31049

COTTER - hairpin

2шт.

9

T51864

HITCH - transport

1шт.

10

T35425

PIN - clevis

1шт.

11

T28981

COTTER - hairpin

1шт.

12

T51865

DRAWBAR

1шт.

13

A33509

PIN,11.18mm OD

- klick

1шт.

14

T51902

STAND

1шт.

15

B13281

SEAL,38.1mm ID x 59.23mm OD x 10.31mm Thk

- grease

2шт.

16

B12409

BEARING, ROLLER,31.763 mm ID x 16.84 mm

CONE - bearing, inner

2шт.

17

T26242

HUB

- with cups

2шт.

18

B12408

BEARING CUP,59.156 mm OD x 11.862 mm

CUP - bearing, inner

1шт.

19

B12410

BEARING, CUP,1.782" OD

CUP - bearing, outer

1шт.

20

T53526

WHEEL

- 15 inch

2шт.

21

A30064

BOLT

- wheel

8шт.

22

B12411

ROLLER BEARING,0.75" ID x 0.655"

CONE - bearing, outer

2шт.

23

T28976

WASHER

- special

2шт.

24

F63222

DUST CAP,53.98mm OD x 34.92mm W

CAP - hub

2шт.

25

T51885

STRAP

1шт.

26

113-409

BOLT,Hex, 1/2" - 13 x 4", Gr 5

- 1/2" x 4" N.C. hex, Z.P.

1шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

1шт.

27

T51912

PIN - clevis

1шт.

28

T28981

COTTER - hairpin

1шт.
