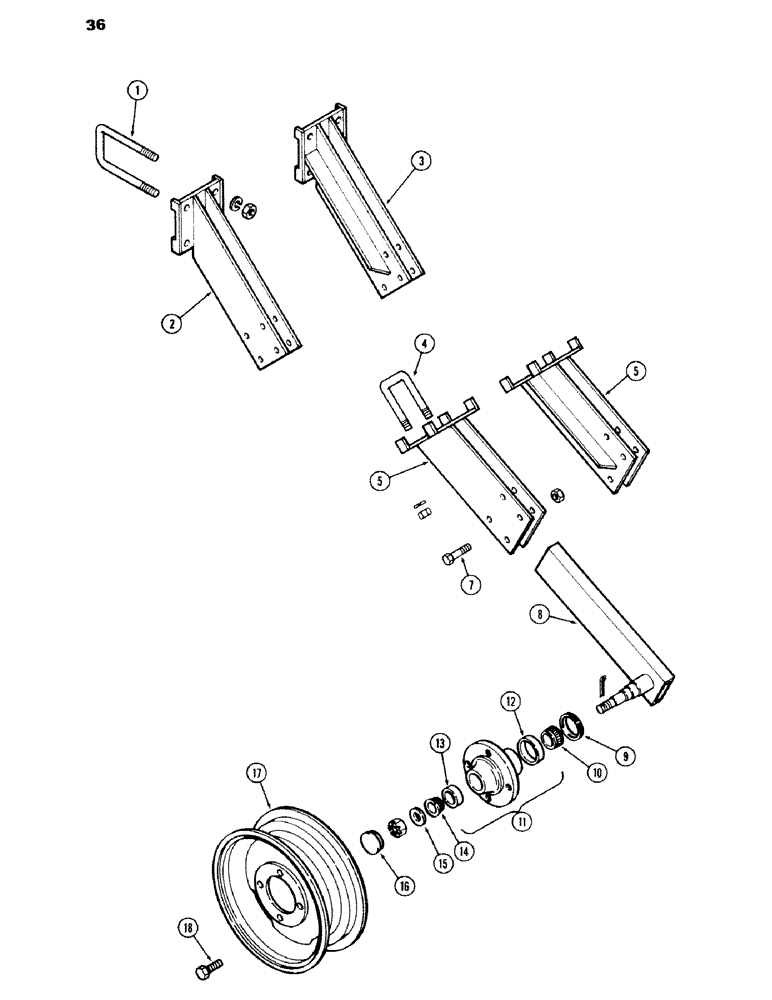

Запчасти Case IH 100-SERIES (36) - TOOLBAR GAUGE WHEEL

1

T55254

"U" BOLT- 5/8" x 8-1/4" (SN1605900 & up)

2шт.

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

129-107

NUT,5/8"-11, G5

4шт.

2

T55255

BRACKET - gauge wheel, R.H. (SN1605900 & up)

1шт.

3

T55256

BRACKET - gauge wheel, L.H. (SN1605900 & up)

1шт.

4

T51888

U-BOLT

"U" BOLT - 5/8" x 5-1/4", Serial Range: (Prior-SN160505900)

2шт.

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

129-107

NUT,5/8"-11, G5

4шт.

5

T51886

BRACKET

- gauge wheel, Serial Range: (Prior-SN1605900)

1шт.

7

80087972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

- 1/2" x 2-1/2" N.C. hex., Z.P.

4шт.

131-1100

LOCK NUT,1/2"-13, GA

NUT, LOCK, 1/2"-13, GA

4шт.

8

T51887

AXLE - gauge wheel

1шт.

25-1312

SLOTTED NUT,3/4"-16, G5

NUT - 3/4" N.F. hex., slotted

1шт.

132-341

COTTER PIN,5/32" x 1 1/2"

5/32" x 1 1/2"

1шт.

9

B13281

SEAL,38.1mm ID x 59.23mm OD x 10.31mm Thk

- grease

1шт.

10

B12409

BEARING, ROLLER,31.763 mm ID x 16.84 mm

CONE - bearing, inner

1шт.

11

T26242

HUB

- with cups

1шт.

12

B12408

BEARING CUP,59.156 mm OD x 11.862 mm

CUP - bearing, inner

1шт.

13

B12410

BEARING, CUP,1.782" OD

CUP - bearing, outer

1шт.

14

B12411

ROLLER BEARING,0.75" ID x 0.655"

CONE - bearing, outer

1шт.

15

T28976

WASHER

- special

1шт.

16

F63222

DUST CAP,53.98mm OD x 34.92mm W

CAP - hub

1шт.

17

T53526

WHEEL

- 15 inch

1шт.

18

A30064

BOLT

- wheel

4шт.
